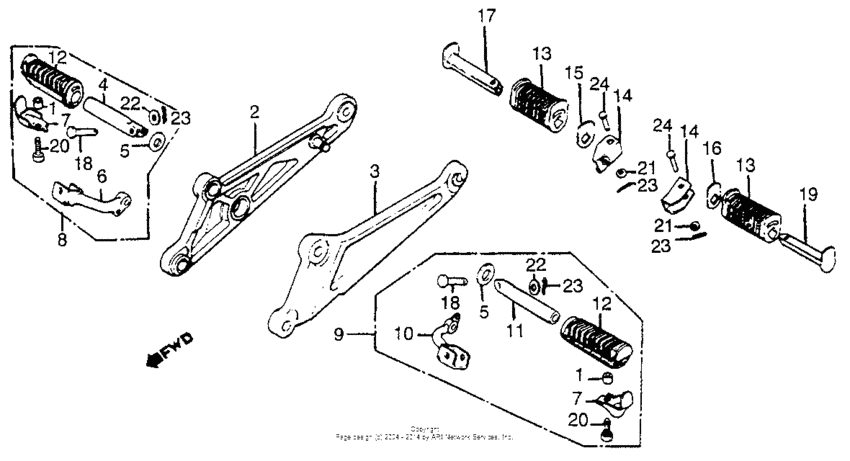

Step Diagram Honda CB650
- Year
- 1982
- Model code
- CB650SC A
- Sales region
- USA
- Frame
- JH2RC080*CM000013 - JH2RC080*CM019135
- Engine Capacity
- 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37243-323-000 Collar,meter set |
37243-323-000 |
US $3.33 |
||
|
2
|
2
50600-460-840
Holder, r. step
|
50600-460-840 |
— | ||
|
3
|
3
50610-460-840
Holder, l. step
|
50610-460-840 |
— | ||
|
4
|
4
50612-460-840
Bar,r.step
|
50612-460-840 |
— | ||
|
5
|
5
50614-413-000 Washer,main step |
50614-413-000 |
US $4.07 |
||
|
6
|
6
50615-460-840
Bracket,r.step
|
50615-460-840 |
— | ||
|
7
|
7
50619-KC2-770
Stopper,step rubb
|
50619-KC2-770 |
— | ||
|
8
|
8
50630-460-840
Step assy.,r.
|
50630-460-840 |
— | ||
|
9
|
9
50640-460-840
Step assy.,l.
|
50640-460-840 |
— | ||
|
10
|
10
50641-460-840
Bracket,l.step
|
50641-460-840 |
— | ||
|
11
|
11
50643-460-840
Bar,l.step
|
50643-460-840 |
— | ||
|
12
|
12
50661-425-670 Rubber,step |
50661-425-670 |
from US $12.58 |
||
|
13
|
13
50710-461-770 Rubber |
50710-461-770 |
US $10.18 |
||
|
14
|
14
50711-460-840
Brkt,pillion step
|
50711-460-840 |
— | ||
|
15
|
15
50712-438-730 Washer, r |
50712-438-730 |
US $8.01 |
||
|
16
|
16
50713-438-730 Washer, l |
50713-438-730 |
US $8.01 |
||
|
17
|
17
50715-460-840
Bar,r.pilli.step
|
50715-460-840 |
— | ||
|
18
|
18
50716-438-000
Pin,step joint
|
50716-438-000 |
— | ||
|
19
|
19
50718-460-840
Bar,l.pilli.step
|
50718-460-840 |
— | ||
|
20
|
20
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
21
|
21
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
22
|
22
9410108200 Washer, plain, 8mm |
9410108200 |
from US $0.44 |
||
|
23
|
23
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
24
|
24
9501581000 Pin a, pillion step |
9501581000 |
from US $1.48 |
