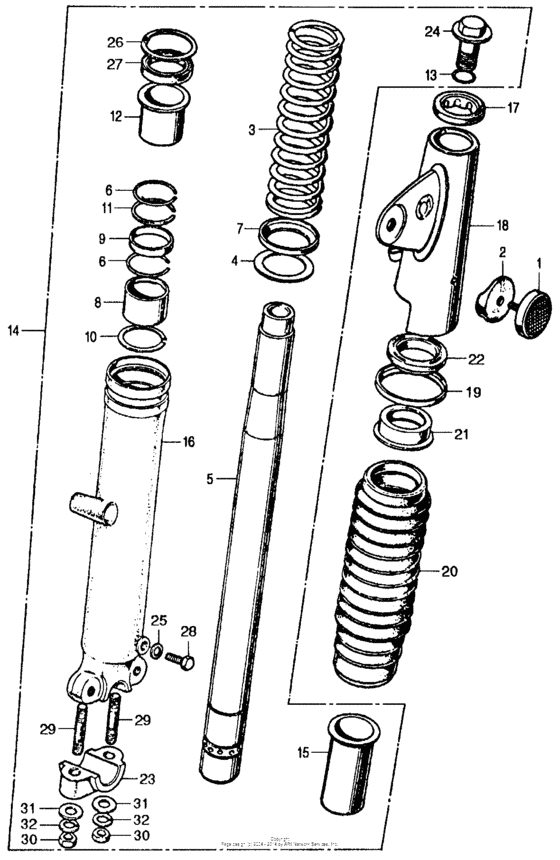

Cl left front fork k2 Diagram Honda CL CL350
- Model code
- CL350K2 A
- Sales region
- USA
- Frame
- CL3502000001 -
- Engine Capacity
- 350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33741-315-000 Reflexreflector |
33741-315-000 |
from US $27.06 |
||
|
2
|
2
33743-341-670 Base,fr reflex |
33743-341-670 |
from US $5.66 |
||
|
3
|
3
51401-286-010
Spring,f.cushion
|
51401-286-010 |
— | ||
|
4
|
4
51407-290-000
Seat,spring under
|
51407-290-000 |
— | ||
|
5
|
5
51410-286-020
Pipe,front fork
|
51410-286-020 |
— | ||
|
6
|
6
51424-283-000
Ring, stopper
|
51424-283-000 |
— | ||
|
7
|
7
51427-286-000
Guide,springunder
|
51427-286-000 |
— | ||
|
8
|
8
51442-286-300
Piston,front fork
|
51442-286-300 |
— | ||
|
9
|
9
51443-268-020
Valve, damper
|
51443-268-020 |
— | ||
|
10
|
10
51445-268-000
Snap ring, fork
|
51445-268-000 |
— | ||
|
11
|
11
51446-268-000
Ring
|
51446-268-000 |
— | ||
|
12
|
12
51451-298-690
Guide,fr fork
|
51451-298-690 |
— | ||
|
13
|
13
51493-292-780
O-ring 11x3
|
51493-292-780 |
— | ||
|
14
|
14
51500-318-670
Fork Assy., L. Fr.
|
51500-318-670 |
— | ||
|
15
|
15
51509-286-000
Guide,spring
|
51509-286-000 |
— | ||
|
17
|
17
51601-292-010
Cover,cushion
|
51601-292-010 |
— | ||
|
18
|
18
51606-318-670-Z
Cover, l. fr. fork
|
51606-318-670-Z |
— | ||
|
19
|
19
51608-290-010
Rib,front fork
|
51608-290-010 |
— | ||
|
20
|
20
51611-290-010
Boot,front fork
|
51611-290-010 |
— | ||
|
21
|
21
51620-290-010
Seat,spring upper
|
51620-290-010 |
— | ||
|
22
|
22
51622-290-000
Cushion b fr fork
|
51622-290-000 |
— | ||
|
23
|
23
95014-41000 Holder,axle |
95014-41000 |
from US $7.70 |
||
|
24
|
24
90123-292-780
Bolt front fork
|
90123-292-780 |
— | ||
|
25
|
25
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.37 |
||
|
26
|
26
90601-286-000 Cir crip,in 44m/m |
90601-286-000 |
US $15.61 |
||
|
27
|
27
91255-286-003 Oil seal 33449 |
91255-286-003 |
from US $13.67 |
||
|
28
|
28
92101-06008-0B Bolt, hex., 6x8 |
92101-06008-0B |
from US $0.59 |
||
|
29
|
29
92700-08050-0E
Bolt
|
92700-08050-0E |
— | ||
| replacement | |||||
|
29
|
29
92900-08032-0E Bolt, stud, 8x32 |
92900-08032-0E |
from US $0.89 |
||
|
29
|
29
92900-08032-0E Bolt, stud, 8x32 |
92900-08032-0E |
from US $0.89 |
||
|
30
|
30
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
31
|
31
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.25 |
||
|
32
|
32
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
