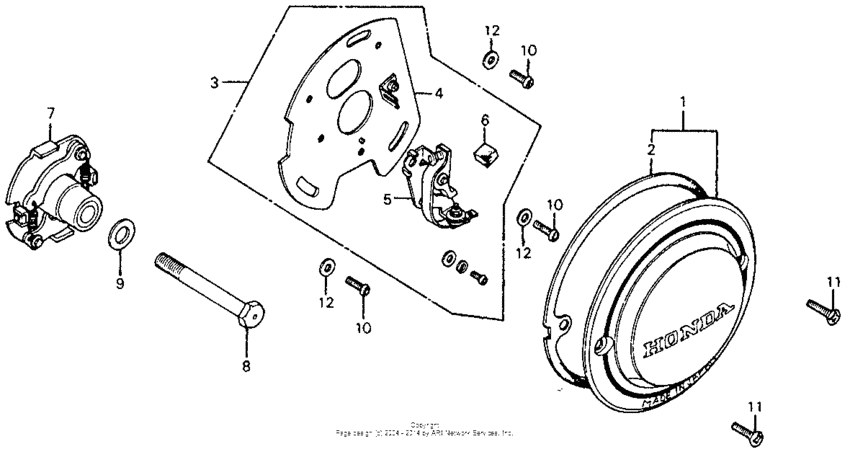

Points + advancer Diagram Honda CM185
- Year
- 1979
- Model code
- CM185T A
- Sales region
- USA
- Frame
- CM185T2100011 -
- Engine Capacity
- 185
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11430-402-000
Cover, alternator
|
11430-402-000 |
— | ||
|
2
|
2
11432-402-306
Gasket
|
11432-402-306 |
— | ||
|
3
|
3
30200-402-004
Breaker,contact
|
30200-402-004 |
— | ||
|
4
|
4
30201-402-000
Plate,contactbase
|
30201-402-000 |
— | ||
|
5
|
5
30202-399-000 Breaker,l |
30202-399-000 |
from US $29.38 |
||
|
6
|
6
30205-399-004
Felt,oil
|
30205-399-004 |
— | ||
|
7
|
7
30220-402-014
Advancer,spark
|
30220-402-014 |
— | ||
|
8
|
8
90123-402-000
Bolt,setting
|
90123-402-000 |
— | ||
|
9
|
9
90410-KR0-000 Washer (10mm) |
90410-KR0-000 |
from US $3.26 |
||
|
10
|
10
93500-050-120-A ScrewPAN, 5X12 |
93500-050-120-A |
from US $0.37 |
||
|
11
|
11
93700-050200B Screw, oval (5x20) |
93700-050200B |
from US $0.58 |
||
|
12
|
12
94101-05000 WasherPLAIN, 5MM |
94101-05000 |
from US $0.37 |
