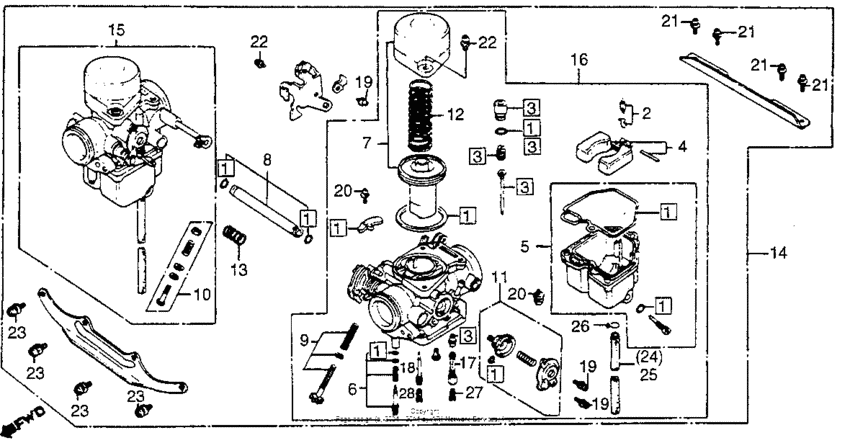

Cm400a/tcarburetor 79 Diagram Honda CM400
- Year
- 1979
- Model code
- CM400A A
- Sales region
- USA
- Frame
- NC022000001 - NC022005965
- Engine Capacity
- 400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-414-305 Gasket set |
16010-414-305 |
US $23.66 |
||
|
2
|
2
16011-KCK-910 Valve set, float |
16011-KCK-910 |
from US $43.11 |
||
|
3
|
3
16012-448-004
Needle set,jet
|
16012-448-004 |
— | ||
|
4
|
4
16013-679-005 Float set |
16013-679-005 |
US $85.68 |
||
|
5
|
5
16015-425-871
Chamber set a
|
16015-425-871 |
— | ||
|
6
|
6
16016-410-601 Screw set a |
16016-410-601 |
US $20.85 |
||
|
7
|
7
16022-425-871
Piston set,vacuum
|
16022-425-871 |
— | ||
|
8
|
8
16026-413-004
Joint set,fuel
|
16026-413-004 |
— | ||
|
9
|
9
16028-413-004
Screw set b
|
16028-413-004 |
— | ||
|
10
|
10
16029-PC6-005
Screw set
|
16029-PC6-005 |
— | ||
|
11
|
11
16048-413-004
Valve set,air cut
|
16048-413-004 |
— | ||
|
12
|
12
16050-448-004
Spring,vac.piston
|
16050-448-004 |
— | ||
|
13
|
13
16051-413-004
Spg,comprn.coil
|
16051-413-004 |
— | ||
|
14
|
14
16100-448-004
Carburetor assy.
|
16100-448-004 |
— | ||
|
15
|
15
16101-448-004
Carburetor assy., r.
|
16101-448-004 |
— | ||
|
16
|
16
16102-448-004
Carburetor assy., l.
|
16102-448-004 |
— | ||
|
17
|
17
16165-417-004 Holder, needle jet |
16165-417-004 |
from US $26.04 |
||
|
18
|
18
16166-417-670
Nozzle,main
|
16166-417-670 |
— | ||
|
19
|
19
93892-040-120-8 Screw-washer4X12 |
93892-040-120-8 |
from US $0.49 |
||
|
20
|
20
93892-040-160-8 Screw-washer4X16 |
93892-040-160-8 |
from US $0.44 |
||
|
21
|
21
93892-050-120-8 Screw-washer5X12 |
93892-050-120-8 |
from US $0.44 |
||
|
22
|
22
93892-050-160-8 Screw-washer5X16 |
93892-050-160-8 |
from US $0.44 |
||
|
23
|
23
93892-060-140-8 Screw-washer6X14 |
93892-060-140-8 |
from US $0.52 |
||
|
24
|
24
95001-350-0360M Bulk hose (3.5x3000) |
95001-350-0360M |
from US $14.50 |
||
|
25
|
25
95001-350-0360M Bulk hose (3.5x3000) |
95001-350-0360M |
from US $14.50 |
||
|
26
|
26
9500235000 Clip, tube (c6.5) |
9500235000 |
from US $0.37 |
||
|
27
|
27
99101-393-0650 Jet primr min #65 |
99101-393-0650 |
US $4.44 |
||
|
28
|
28
99101-GHB-1100 Jet, main (#110) |
99101-GHB-1100 |
US $10.46 |
||
| replacement | |||||
|
28
|
28
99101-MBA-1100 JetMAIN, #110 |
99101-MBA-1100 |
from US $6.66 |
||
