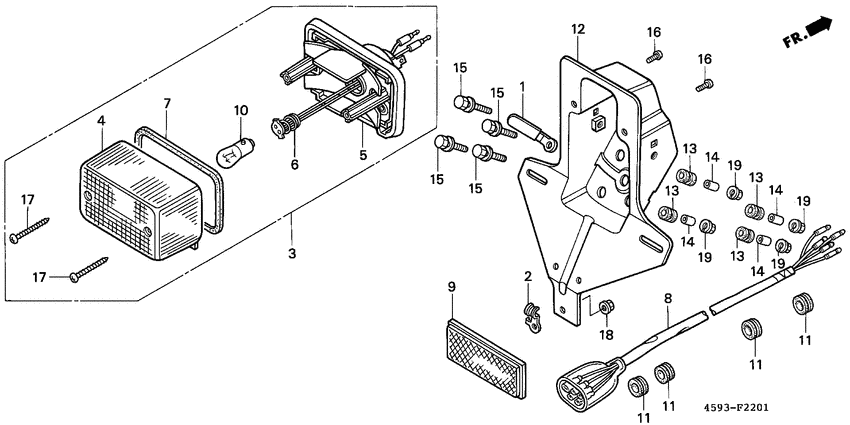

Taillight (2) Diagram Honda CT110
- Year
- 1991
- Model code
- CT110M
- Sales region
- Australian postal ministry
- Frame
- JH2JD01U*MK200001 - JH2JD01U*MK201803
- Engine Capacity
- 110
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32901-MA1-000 Clip, sub cord |
32901-MA1-000 |
from US $5.18 |
||
|
2
|
2
32907-331-000 Clip,a c gen cord |
32907-331-000 |
US $2.66 |
||
|
3
|
3
33701-459-941
Taillight unit
|
33701-459-941 |
— | ||
|
4
|
4
33702-KF0-644 Lens, taillight |
33702-KF0-644 |
from US $18.31 |
||
|
5
|
5
33703-459-940
Socket comp.
|
33703-459-940 |
— | ||
|
6
|
6
33705-459-940 Cord compTAILLIGHT |
33705-459-940 |
US $8.78 |
||
|
7
|
7
33709-KF0-641 Gasket, taillight |
33709-KF0-641 |
from US $2.79 |
||
|
8
|
8
33711-459-940
Sub cord
|
33711-459-940 |
— | ||
|
9
|
9
33741-MS6-921 Reflector, reflex (stanley) |
33741-MS6-921 |
from US $16.86 |
||
|
10
|
10
34906-447-711 Bulb (12v21/5w) |
34906-447-711 |
from US $11.10 |
||
|
11
|
11
66219-634-000 Grommet b |
66219-634-000 |
US $4.88 |
||
|
12
|
12
84701-459-940 BracketNUMBER PLATE |
84701-459-940 |
US $95.76 |
||
|
13
|
13
84905-459-670 Rubber a, number bracket cushion |
84905-459-670 |
from US $3.03 |
||
|
14
|
14
84907-459-670 Collar,no brkt cu |
84907-459-670 |
US $2.74 |
||
|
15
|
15
93404-0602500 Bolt-washer, 6x25 |
93404-0602500 |
from US $0.59 |
||
|
16
|
16
93500-050-080-G ScrewPAN, 5X8 |
93500-050-080-G |
from US $0.37 |
||
|
17
|
17
9390124780 Screw, tap (4x30) |
9390124780 |
from US $0.37 |
||
|
18
|
18
94050-05080 NutFLANGE, 5MM |
94050-05080 |
from US $0.44 |
||
|
19
|
19
94070-06080 Nut-washer6MM |
94070-06080 |
from US $0.52 |
