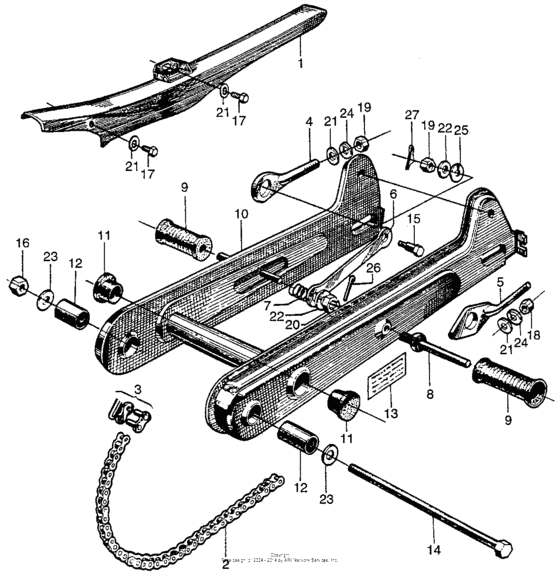

Swingarm Diagram Honda CT90
- Model code
- CT90 A
- Sales region
- USA
- Frame
- CT90100001 -
- Engine Capacity
- 90
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40510-053-000-Z
Case, drive chain
Use from Frame SN 122551 |
40510-053-000-Z |
— | ||
|
2
|
2
405W3-KA8-505 Chain,drive |
405W3-KA8-505 |
US $43.84 |
||
|
2
|
2
40530-033-000
Chain, drive
Use up to Frame SN 122550 |
40530-033-000 |
— | ||
|
2
|
2
40530-033-810
Chain (6l)
Use up to Frame SN 122550 |
40530-033-810 |
— | ||
|
2
|
2
40530-033-820
Chain (8l)
Use up to Frame SN 122550 |
40530-033-820 |
— | ||
|
2
|
2
40530-033-830
Chain (10l)
Use up to Frame SN 122550 |
40530-033-830 |
— | ||
|
3
|
3
40531-205-013 Joint,drive chain |
40531-205-013 |
US $4.37 |
||
|
4
|
4
9501410100 Adjuster a, r. chainUse up to Frame SN 122550 |
9501410100 |
from US $1.63 |
||
|
5
|
5
95014-10020 Adjuster,sl.chain |
95014-10020 |
from US $1.63 |
||
|
6
|
6
43431-001-020
Link
|
43431-001-020 |
— | ||
|
7
|
7
43434-250-000 Spring |
43434-250-000 |
from US $2.87 |
||
|
8
|
8
50700-001-810
Bar,pillion step
|
50700-001-810 |
— | ||
|
9
|
9
50731-051-000
Rubber, step
|
50731-051-000 |
— | ||
| replacement | |||||
|
9
|
9
95011-32000 Rubber b, p. step |
95011-32000 |
from US $1.94 |
||
|
9
|
9
95011-32000 Rubber b, p. step |
95011-32000 |
from US $1.94 |
||
|
10
|
10
52100-033-000-Z
Swingarm
Use up to Frame SN 122550 |
52100-033-000-Z |
— | ||
|
10
|
10
52100-053-000-Z
Swingarm
Use from Frame SN 122551 |
52100-053-000-Z |
— | ||
|
11
|
11
52161-001-505 Cap *y3l* |
52161-001-505 |
US $5.48 |
||
|
11
|
11
52161-051-000 Cap, cross member side |
52161-051-000 |
from US $2.89 |
||
|
12
|
12
52181-001-300 Rubber bush |
52181-001-300 |
from US $6.07 |
||
|
13
|
13
87130-053-000
Plate,caution
|
87130-053-000 |
— | ||
|
13
|
13
87504-028-670 Mark, caution |
87504-028-670 |
from US $4.64 |
||
|
14
|
14
90121-033-000 Bolt, pivot |
90121-033-000 |
US $20.35 |
||
|
15
|
15
90127-400-000 Bolt,brake stop. |
90127-400-000 |
from US $7.99 |
||
|
16
|
16
90305-001-000
Nut, axle
|
90305-001-000 |
— | ||
|
17
|
17
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
17
|
17
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
17
|
17
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
18
|
18
94001-062-000-S NutHEX., 6MM |
94001-062-000-S |
from US $0.44 |
||
|
19
|
19
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
19
|
19
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.44 |
||
|
20
|
20
94011-080000S Nut, self-lock (8mm) |
94011-080000S |
from US $0.65 |
||
|
21
|
21
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
22
|
22
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.25 |
||
|
23
|
23
9410110000 Washer, plain, 10mm |
9410110000 |
from US $0.44 |
||
|
24
|
24
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
25
|
25
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
26
|
26
94201-29220
Pin
|
94201-29220 |
— | ||
| replacements | |||||
|
26
|
26
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
26
|
26
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
26
|
26
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
26
|
26
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
27
|
27
94251-08000 PinLOCK, 8MM |
94251-08000 |
from US $0.59 |
||
