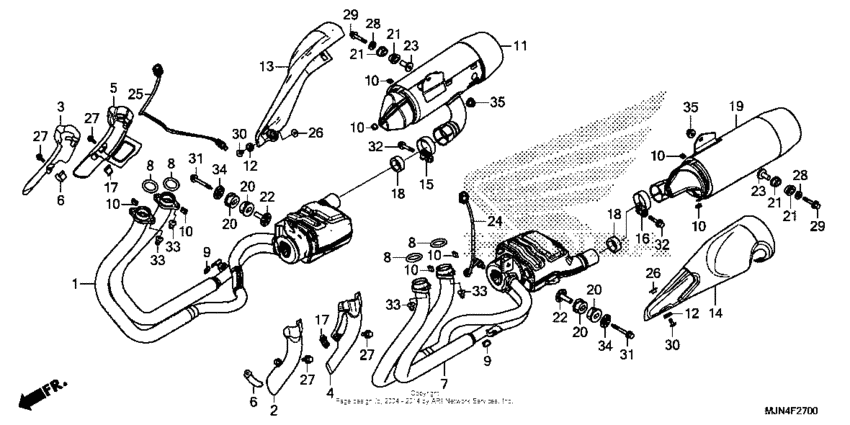

Exhaust muffler Diagram Honda CTX1300
- Year
- 2014
- Model code
- CTX1300A AC
- Sales region
- USA
- Frame
- JH2SC745*EK000001 -
- Engine Capacity
- 1300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18150-MJN-A00 Pipe, r. ex |
18150-MJN-A00 |
from US $788.80 |
||
|
2
|
2
18151-MJN-A00 Cover, l. fr. ex |
18151-MJN-A00 |
from US $24.48 |
||
|
3
|
3
18152-MJN-A00 Cover, r. fr. ex |
18152-MJN-A00 |
from US $24.48 |
||
|
4
|
4
18153-MJN-A00 Cover, l. rr. ex |
18153-MJN-A00 |
from US $32.64 |
||
|
5
|
5
18154-MJN-A00 Cover, r. rr. ex |
18154-MJN-A00 |
from US $32.64 |
||
|
6
|
6
18157-MJN-A00 Band, pipe cover |
18157-MJN-A00 |
from US $14.06 |
||
|
7
|
7
18170-MJN-A00 Pipe, l. ex |
18170-MJN-A00 |
from US $788.80 |
||
|
8
|
8
18291-MN4-920 Gasket, ex. pipe |
18291-MN4-920 |
from US $3.20 |
||
|
9
|
9
18293-MFF-D00 RubberSEAT STAY |
18293-MFF-D00 |
from US $4 |
||
|
10
|
10
18293-MN0-000 Rubber, protector |
18293-MN0-000 |
from US $3.11 |
||
|
11
|
11
18310-MJN-305 Muffler, r. (coo) |
18310-MJN-305 |
from US $544 |
||
|
12
|
12
18345-MBT-610 Rubber |
18345-MBT-610 |
from US $2.52 |
||
|
13
|
13
18353-MJN-A00 Cover, r. fr. muffler |
18353-MJN-A00 |
from US $84.39 |
||
|
14
|
14
18354-MJN-A00 Cover, l. fr. muffler |
18354-MJN-A00 |
from US $83.54 |
||
|
15
|
15
18375-MG7-000 Band, r. rr. muffler |
18375-MG7-000 |
from US $14.80 |
||
|
16
|
16
18376-MG7-000 Band, l. rr. muffler |
18376-MG7-000 |
from US $15.78 |
||
|
17
|
17
18377-MAH-000 Band, rr. |
18377-MAH-000 |
from US $5.92 |
||
|
18
|
18
18392-MG7-750 Gasket, rr. muffler |
18392-MG7-750 |
from US $13.76 |
||
|
19
|
19
18410-MJN-305 Muffler, l. (coo) |
18410-MJN-305 |
from US $544 |
||
|
20
|
20
18422-MGE-000 Rubber |
18422-MGE-000 |
from US $17.46 |
||
|
21
|
21
18422-MGZ-J00 Rubber |
18422-MGZ-J00 |
from US $6.07 |
||
|
22
|
22
18423-MGE-000 Collar |
18423-MGE-000 |
from US $6.17 |
||
|
23
|
23
18423-MGZ-J00 Collar |
18423-MGZ-J00 |
from US $4.59 |
||
|
24
|
24
36531-MJN-A01 Sensor, oxygen (1-3) |
36531-MJN-A01 |
from US $189.04 |
||
|
25
|
25
36532-MJN-A01 Sensor, oxygen (2-4) |
36532-MJN-A01 |
from US $189.04 |
||
|
26
|
26
50609-MCW-D00 Collar |
50609-MCW-D00 |
from US $3.18 |
||
|
27
|
27
90128-MGE-000 Bolt, flange (6x16) |
90128-MGE-000 |
US $2 |
||
| replacement | |||||
|
27
|
27
90101-MJN-A00 BOLT,FLANGE SH 6X |
90101-MJN-A00 |
from US $2.09 |
||
|
28
|
28
90101-ML0-720 Washer, plain, 8mm |
90101-ML0-720 |
from US $2.96 |
||
|
29
|
29
90109-MZ5-000 Bolt (8x50) |
90109-MZ5-000 |
from US $4.74 |
||
|
30
|
30
90118-MR1-000 Screw, pan (6x14) |
90118-MR1-000 |
from US $2.07 |
||
|
31
|
31
90127-MGE-000 Bolt, flange (8x65) |
90127-MGE-000 |
from US $3.63 |
||
|
32
|
32
90161-MCT-770 New Genuine Part |
90161-MCT-770 |
from US $2.22 |
||
|
33
|
33
90304-MJ0-920 Nut, cap (7mm) |
90304-MJ0-920 |
from US $1.40 |
||
|
34
|
34
90505-MGE-000 Washer (8,5x38) |
90505-MGE-000 |
US $3.21 |
||
|
35
|
35
9405008020 Nut, flange, 8mm |
9405008020 |
from US $0.59 |
||
