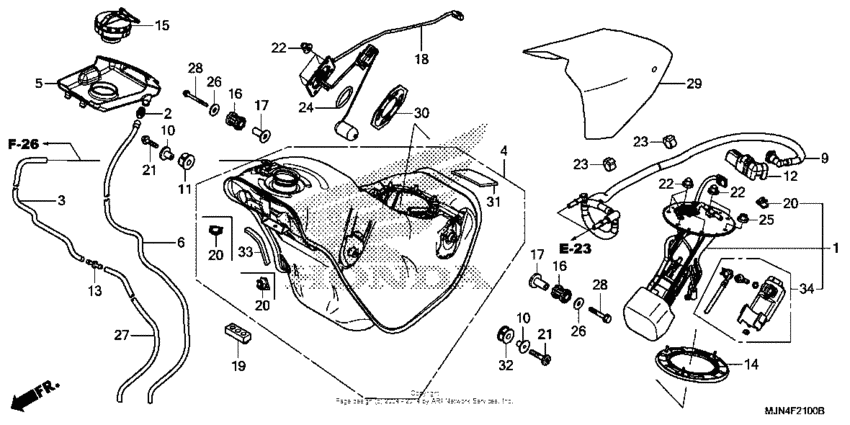

Fuel tank Diagram Honda CTX1300
- Year
- 2014
- Model code
- CTX1300A AC
- Sales region
- USA
- Frame
- JH2SC745*EK000001 -
- Engine Capacity
- 1300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16600-MJN-A01
Pump set, fuel
|
16600-MJN-A01 |
— | ||
|
1
|
1
16600-MJN-A02 Pump set, fuel |
16600-MJN-A02 |
from US $788.22 |
||
|
2
|
2
17359-419-670 Joint, breather tube |
17359-419-670 |
from US $2.59 |
||
|
4
|
4
17500-MJN-A00 Tank set, fuel |
17500-MJN-A00 |
from US $1,033.60 |
||
|
5
|
5
17507-MJN-A00 Tray, fuel tank |
17507-MJN-A00 |
from US $8.14 |
||
|
6
|
6
17508-MJN-A00 Tube a, drain |
17508-MJN-A00 |
from US $13.32 |
||
|
9
|
9
17528-MJN-A02 Hose, fuel feed |
17528-MJN-A02 |
from US $88.40 |
||
|
10
|
10
17535-MFL-000 Collar, fr |
17535-MFL-000 |
from US $4.22 |
||
|
11
|
11
17545-MFL-000 Rubber, r. fr. |
17545-MFL-000 |
from US $3.85 |
||
|
12
|
12
17555-MJN-A01 Cover, connector guard |
17555-MJN-A01 |
from US $3.26 |
||
|
14
|
14
17574-MCF-000 Gasket, base |
17574-MCF-000 |
from US $13.17 |
||
|
15
|
15
17670-MJN-A01 Cap, fuel filler |
17670-MJN-A01 |
from US $42.16 |
||
|
16
|
16
18421-KV3-950 Rubber,silencer m |
18421-KV3-950 |
from US $4 |
||
|
17
|
17
18422-MJN-A00 Collar, tank mount |
18422-MJN-A00 |
from US $3.92 |
||
|
18
|
18
37800-MJN-A01 Fuel unit |
37800-MJN-A01 |
from US $76.16 |
||
|
19
|
19
77205-286-000 Rubber b, seat setting |
77205-286-000 |
from US $6.81 |
||
|
20
|
20
83705-MZ7-300 Clip, harness |
83705-MZ7-300 |
from US $4.24 |
||
|
21
|
21
90115-MAS-E00 Bolt, special (6x25) |
90115-MAS-E00 |
from US $2.25 |
||
|
22
|
22
90201-415-000 Nut, cap, 6mm |
90201-415-000 |
from US $3.18 |
||
|
23
|
23
90690-GHB-651 Clip, cable, 15mm |
90690-GHB-651 |
from US $2.07 |
||
|
24
|
24
91305-MC7-000 O-ring (39.5x5) |
91305-MC7-000 |
from US $2.93 |
||
|
25
|
25
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.49 |
||
|
26
|
26
94103-08800 WasherPLAIN, 8MM |
94103-08800 |
from US $0.38 |
||
|
28
|
28
95801-0804500 Bolt, flange, 8x45 |
95801-0804500 |
from US $0.90 |
||
|
29
|
29
17425-MJN-A00 Rubber, fuel tank |
17425-MJN-A00 |
from US $48.14 |
||
|
30
|
30
17426-MJN-A00 Seal, waterproof |
17426-MJN-A00 |
from US $4.07 |
||
|
31
|
31
17515-MEG-300 Tape, tank protector |
17515-MEG-300 |
from US $3.18 |
||
|
32
|
32
17533-MFL-000 Rubber, l. fr. |
17533-MFL-000 |
from US $3.85 |
||
|
33
|
33
64121-MCJ-750 Rubber, protector |
64121-MCJ-750 |
from US $4 |
||
|
34
|
34
16730-MJN-A01 Filter assy., fuel |
16730-MJN-A01 |
from US $39.44 |
