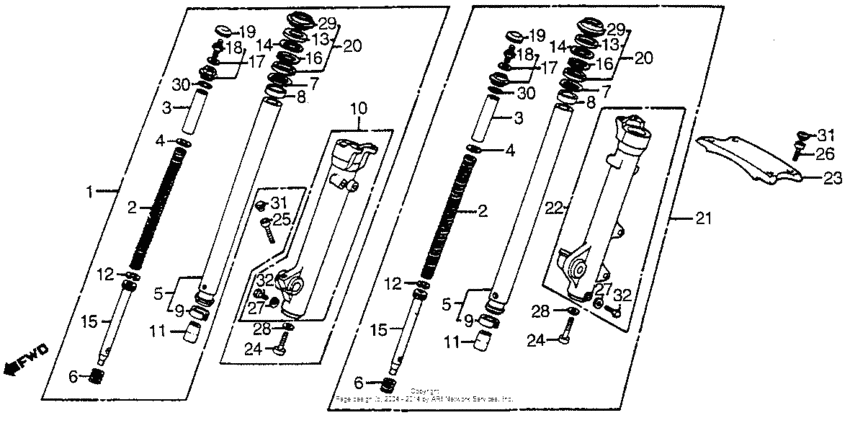

Front fork Diagram Honda CX650
- Year
- 1983
- Model code
- CX650C A
- Sales region
- USA
- Frame
- JH2RC110*DM000018 - JH2RC110*DM010120
- Engine Capacity
- 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51400-ME8-672
Fork assy., r. fr.
|
51400-ME8-672 |
— | ||
|
2
|
2
51401-ME8-003
Spring, fr. fork
|
51401-ME8-003 |
— | ||
|
3
|
3
51402-ME9-003 Collar, spring |
51402-ME9-003 |
US $12.33 |
||
|
4
|
4
51403-ME5-003 Plate, spring joint |
51403-ME5-003 |
US $3.78 |
||
|
5
|
5
51410-ME8-003
Pipe,fr.fork
|
51410-ME8-003 |
— | ||
|
6
|
6
51411-ME5-003
Spring, rebound
|
51411-ME5-003 |
— | ||
|
7
|
7
51412-463-003 Ring, back-up |
51412-463-003 |
from US $6.07 |
||
|
8
|
8
51414-463-003 Bush, fork pipe |
51414-463-003 |
from US $6.19 |
||
|
9
|
9
51415-463-003 Sleeve, fork pipe |
51415-463-003 |
from US $14.36 |
||
|
10
|
10
51421-ME8-003
Case,r.bottom
|
51421-ME8-003 |
— | ||
|
11
|
11
51432-463-003
Piece,oil lock
|
51432-463-003 |
— | ||
|
12
|
12
51437-ME5-003 Ring, piston |
51437-ME5-003 |
US $5.77 |
||
|
13
|
13
51438-MB9-781
Holder,grease
|
51438-MB9-781 |
— | ||
|
14
|
14
51439-MB9-781
Washer,holder
|
51439-MB9-781 |
— | ||
|
15
|
15
51440-ME8-671 Pipe,seat |
51440-ME8-671 |
US $64.20 |
||
|
16
|
16
51447-463-003 Circlip (inner) |
51447-463-003 |
from US $7.10 |
||
|
17
|
17
51450-ME5-003
Bolt assy., fr. fork
|
51450-ME5-003 |
— | ||
|
18
|
18
51456-469-013 Valve, air |
51456-469-013 |
US $41.09 |
||
|
19
|
19
51457-MG1-003 Cap, air valve |
51457-MG1-003 |
US $17.54 |
||
|
20
|
20
51490-MB9-782 Seal set, fr. fork |
51490-MB9-782 |
from US $17.59 |
||
|
21
|
21
51500-ME8-672
Fork Assy., L. Fr.
|
51500-ME8-672 |
— | ||
|
22
|
22
51521-ME8-003
Case,l.bottom
|
51521-ME8-003 |
— | ||
|
23
|
23
53240-MB1-050
Stabilizer, fr. fork
|
53240-MB1-050 |
— | ||
|
24
|
24
90116-383-721 Bolt, socket (8mm) |
90116-383-721 |
from US $4.44 |
||
|
25
|
25
90152-ME5-000 Bolt, socket (8x28) |
90152-ME5-000 |
from US $4 |
||
|
26
|
26
90153-MB0-000
Bolt, socket (8x17)
|
90153-MB0-000 |
— | ||
| replacement | |||||
|
26
|
26
90153-MB0-405
Bolt, socket (8x17)
|
90153-MB0-405 |
— | ||
|
26
|
26
90153-MB0-405
Bolt, socket (8x17)
|
90153-MB0-405 |
— | ||
|
27
|
27
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.37 |
||
|
28
|
28
90544-283-000 Washer (8mm) |
90544-283-000 |
from US $2.52 |
||
|
29
|
29
91254-463-003 Dust seal |
91254-463-003 |
from US $21.08 |
||
|
30
|
30
91356-MA3-661 O-ring (29.2x3.5) |
91356-MA3-661 |
from US $4.82 |
||
|
31
|
31
91455-MB0-010 Cap (8mm) |
91455-MB0-010 |
from US $1.46 |
||
|
32
|
32
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
