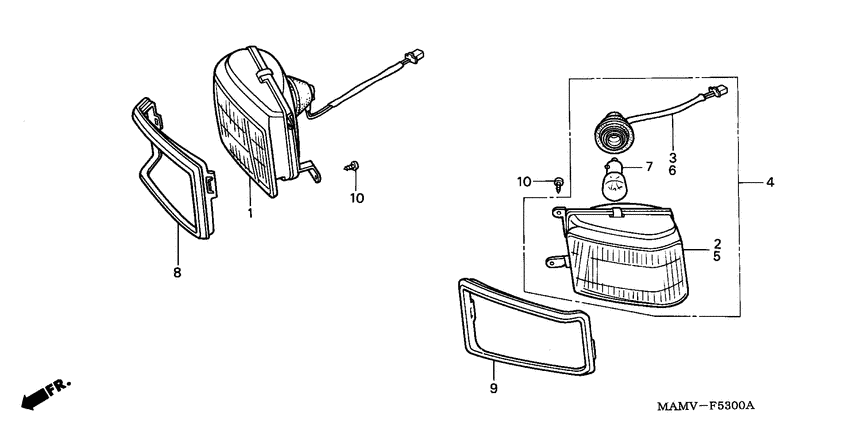

Cornering lamp (SI) Diagram Honda GL1500 Gold Wing Special Edition
- Year
- 1997
- Model code
- GL1500SEV
- Sales region
- Singapore
- Frame
- 1HFSC229*VA100001 - 1HFSC229*VA199999
- Engine Capacity
- 1500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33200-MT8-771
Lamp, r. cornering
|
33200-MT8-771 |
— | ||
|
2
|
2
33201-MT8-771
Lamp unit, r.
|
33201-MT8-771 |
— | ||
|
3
|
3
33202-MT8-771
Socket, r.
|
33202-MT8-771 |
— | ||
|
4
|
4
33250-MT8-771
Lamp, l. cornering
|
33250-MT8-771 |
— | ||
|
5
|
5
33251-MT8-771
Lamp unit, l.
|
33251-MT8-771 |
— | ||
|
6
|
6
33252-MT8-771 Socket, l. |
33252-MT8-771 |
US $15.91 |
||
|
7
|
7
34901-071-003 Bulb (12v25/25w) |
34901-071-003 |
from US $10.06 |
||
|
8
|
8
64281-MT8-771 Rim, r. |
64281-MT8-771 |
from US $66.13 |
||
|
9
|
9
64291-MT8-771 Rim, l |
64291-MT8-771 |
US $71.93 |
||
|
10
|
10
93903-25220 ScrewTAPPING, 5X12 |
93903-25220 |
from US $0.38 |
