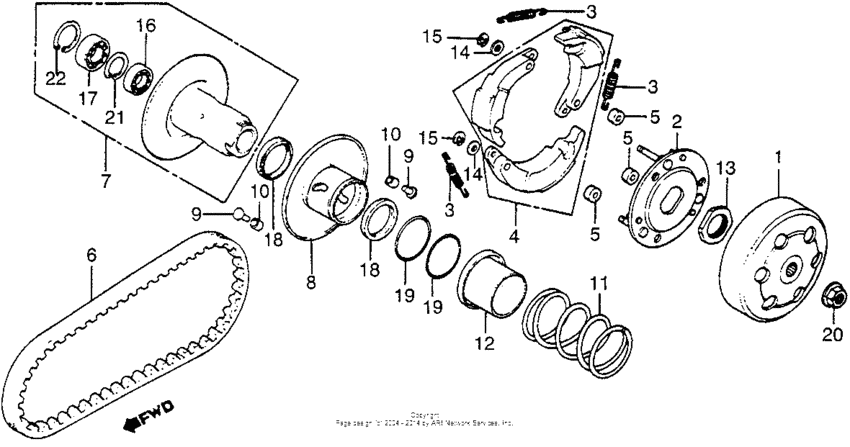

Driven face Diagram Honda NB50
- Year
- 1983
- Model code
- NB50M A
- Sales region
- USA
- Frame
- JH2AB070*DK000004 - JH2AB070*DK008003
- Engine Capacity
- 50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22100-GE8-000 Clutch outer comp |
22100-GE8-000 |
US $78.20 |
||
|
2
|
2
22350-GE8-000 Plate comp,drive |
22350-GE8-000 |
US $53.99 |
||
|
3
|
3
22401-GE8-000 Spring,clutch |
22401-GE8-000 |
US $6.07 |
||
|
4
|
4
22535-GE8-010
Weight set, clutch
|
22535-GE8-010 |
— | ||
|
5
|
5
22804-148-000 Rubber, clutch damper |
22804-148-000 |
from US $2.44 |
||
|
6
|
6
23100-GJ8-000
Belt,drive
|
23100-GJ8-000 |
— | ||
|
7
|
7
23205-GE8-305 Face set, driven |
23205-GE8-305 |
US $98.60 |
||
|
8
|
8
23220-GE8-000 Face,movable driv |
23220-GE8-000 |
US $63.38 |
||
|
9
|
9
23225-187-003 Pin, guide roller |
23225-187-003 |
US $2.66 |
||
|
10
|
10
23226-187-003 Roller, guide |
23226-187-003 |
US $2.44 |
||
|
11
|
11
23233-GE8-000 Spg.,driven face |
23233-GE8-000 |
US $14.28 |
||
|
12
|
12
23237-GA7-700 Collar,seal |
23237-GA7-700 |
US $11.99 |
||
|
13
|
13
90202-187-000 Nut, special (28mm) |
90202-187-000 |
from US $5.92 |
||
|
14
|
14
90442-GE8-000 Washer,thrust,8mm |
90442-GE8-000 |
US $3.26 |
||
|
15
|
15
90605-166-720 Circlip, 7mm |
90605-166-720 |
from US $1.39 |
||
|
16
|
16
91001-GA7-701 Bearing (6901u) |
91001-GA7-701 |
from US $8.70 |
||
|
17
|
17
91002-GA7-701 Bearing (6902u) |
91002-GA7-701 |
from US $10.66 |
||
|
18
|
18
91211-187-003 Seal, driven face |
91211-187-003 |
from US $5.92 |
||
|
19
|
19
91351-642-000 O-ring (36.7x1.9) |
91351-642-000 |
from US $3.55 |
||
|
20
|
20
94050-10000 NutFLANGE, 10MM |
94050-10000 |
from US $0.74 |
||
|
21
|
21
9452024000 Circlip (24mm) |
9452024000 |
from US $0.59 |
||
|
22
|
22
94520-28000 CirclipINTERNAL, 28MM |
94520-28000 |
from US $0.81 |
