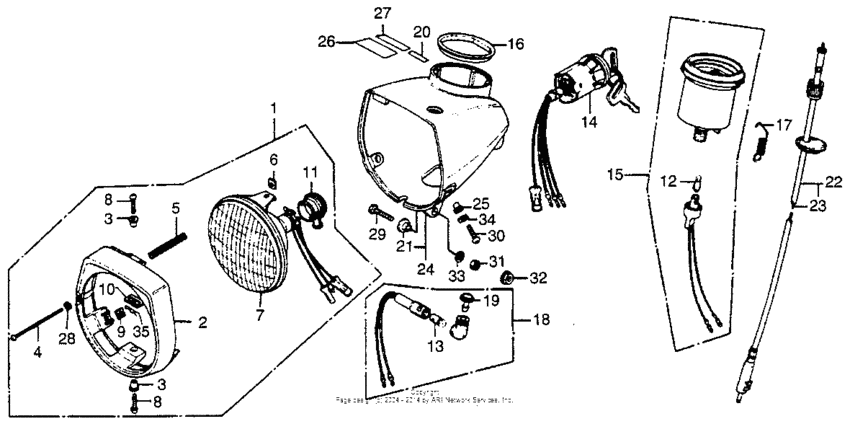

Headlight + speedometer Diagram Honda NC50
- Year
- 1979
- Model code
- NC50 A
- Sales region
- USA
- Frame
- NC502100011 -
- Engine Capacity
- 50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-147-672ZC
Light,head*y-31*
|
33100-147-672ZC |
— | ||
|
1
|
1
33100-147-672ZD
Headlight *yr26*
|
33100-147-672ZD |
— | ||
|
1
|
1
33100-147-672ZE
Headlight.*pb-31*
|
33100-147-672ZE |
— | ||
|
2
|
2
33101-147-671ZC
Rim,hd.lt.*y-31*
|
33101-147-671ZC |
— | ||
|
2
|
2
33101-147-671ZH
Rim *yr26*
|
33101-147-671ZH |
— | ||
|
2
|
2
33101-147-671ZJ
Rim,hd/lt *pb-31*
|
33101-147-671ZJ |
— | ||
|
3
|
3
33102-147-670
Washer,unit hold.
|
33102-147-670 |
— | ||
|
4
|
4
33103-147-671 Screw,beam adj. |
33103-147-671 |
US $4.31 |
||
|
5
|
5
33107-147-671
Spring,beam adj.
|
33107-147-671 |
— | ||
|
6
|
6
33117-041-003 Nut, beam adj. |
33117-041-003 |
from US $2.81 |
||
|
7
|
7
33120-147-671
Light unit,head
|
33120-147-671 |
— | ||
|
8
|
8
33125-147-670
Screw,unit holder
|
33125-147-670 |
— | ||
|
9
|
9
33127-147-670
Collar
|
33127-147-670 |
— | ||
|
10
|
10
33128-292-670 Nut, unit holder |
33128-292-670 |
from US $3.51 |
||
|
11
|
11
33130-111-671
Cover, rubber
|
33130-111-671 |
— | ||
|
12
|
12
34908-001-000 Bulb (6v1.5w) |
34908-001-000 |
from US $8.82 |
||
|
13
|
13
34908-230-000 Bulb,speedometer |
34908-230-000 |
from US $3.18 |
||
|
14
|
14
35010-148-670
Key set
|
35010-148-670 |
— | ||
|
15
|
15
37200-147-711
Speedometer assy
|
37200-147-711 |
— | ||
|
16
|
16
37202-147-670
Plate,spdmt.set
|
37202-147-670 |
— | ||
|
17
|
17
37244-045-010
Spring,set
|
37244-045-010 |
— | ||
|
18
|
18
37550-329-015
Lamp,beampilot
|
37550-329-015 |
— | ||
|
19
|
19
37551-329-015
Lens,beam pilot
|
37551-329-015 |
— | ||
|
20
|
20
37555-370-740
Label
|
37555-370-740 |
— | ||
|
21
|
21
61302-147-670
Colr, headlight case
|
61302-147-670 |
— | ||
|
22
|
22
44830-147-650
Cable,speedometer
|
44830-147-650 |
— | ||
|
23
|
23
44831-GK8-870
Cable,inner
|
44831-GK8-870 |
— | ||
|
23
|
23
44831-147-670 Cable,inner |
44831-147-670 |
US $8.93 |
||
|
24
|
24
61301-147-673ZC
Case,lt.*y-31*
|
61301-147-673ZC |
— | ||
|
24
|
24
61301-147-673ZE
Case,hd/lt*yr-26*
|
61301-147-673ZE |
— | ||
|
24
|
24
61301-147-673ZJ
Case,hd/lt*pb-31*
|
61301-147-673ZJ |
— | ||
|
25
|
25
61304-292-000 Collar |
61304-292-000 |
from US $3.40 |
||
|
26
|
26
87510-147-670ZA Label *nh1* |
87510-147-670ZA |
from US $4.22 |
||
|
27
|
27
87511-147-670ZA
Label,*nh-1*
|
87511-147-670ZA |
— | ||
|
28
|
28
90286-147-670 Washer, beam adj. |
90286-147-670 |
from US $1.70 |
||
|
29
|
29
92101-06018-0A Bolt, hex., 6x18 |
92101-06018-0A |
from US $0.44 |
||
|
30
|
30
93500-050-160-A Screw |
93500-050-160-A |
from US $0.37 |
||
|
30
|
30
93500-05016
Screw
|
93500-05016 |
— | ||
|
32
|
32
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
34
|
34
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
|
35
|
35
9425105000 Pin, lock, 5mm |
9425105000 |
from US $0.44 |
