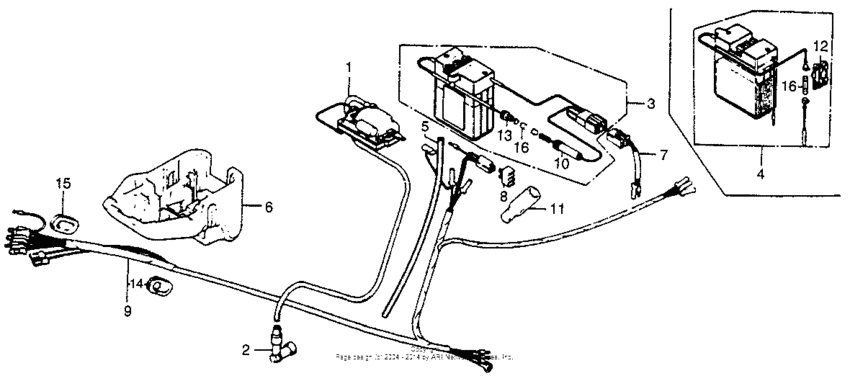

Wire harness + ignition coil Diagram Honda NC50
- Year
- 1979
- Model code
- NC50 A
- Sales region
- USA
- Frame
- NC502100011 -
- Engine Capacity
- 50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30500-147-405
Coil assy., ignition
|
30500-147-405 |
— | ||
|
2
|
2
30700-155-163
Cap assy,noise
|
30700-155-163 |
— | ||
|
3
|
3
31500-147-505AH
Battery (6n2)
|
31500-147-505AH |
— | ||
|
5
|
5
31502-147-010
Tube
|
31502-147-010 |
— | ||
|
6
|
6
31505-147-020
Holder, battery
|
31505-147-020 |
— | ||
|
8
|
8
31700-124-003
Rectifier assy., silicon (stanley)
|
31700-124-003 |
— | ||
| replacement | |||||
|
8
|
8
31700-124-008 Rectifier assy., silicon (shindengen) |
31700-124-008 |
from US $26.57 |
||
|
9
|
9
32100-147-670
Wire harness
|
32100-147-670 |
— | ||
|
12
|
12
32111-230-000 Case, fuse connector |
32111-230-000 |
from US $4.88 |
||
|
14
|
14
32984-147-000
Grommet, l. cable
|
32984-147-000 |
— | ||
|
15
|
15
32985-147-000
Grommet, r. wire
|
32985-147-000 |
— | ||
|
16
|
16
9820010700 Fuse a (7a) |
9820010700 |
from US $0.59 |
||
