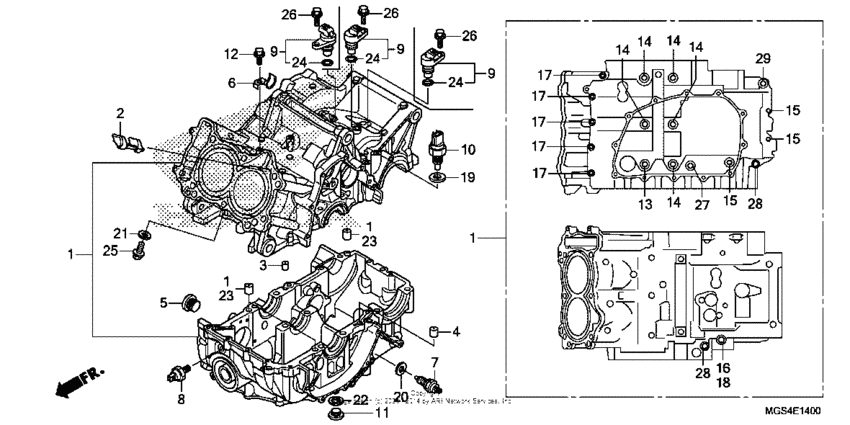

Crankcase Diagram Honda NC700
- Year
- 2012
- Model code
- NC700X AC
- Sales region
- USA
- Frame
- JH2RC635*CK000001 - JH2RC635*CK099999
- Engine Capacity
- 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11000-MGS-D30 Crankcase set |
11000-MGS-D30 |
from US $2,099.33 |
||
|
2
|
2
11103-MGS-D31 Plate, partition |
11103-MGS-D31 |
from US $5.40 |
||
|
3
|
3
11207-MFL-000 Orifice (1.1mm) |
11207-MFL-000 |
from US $3.33 |
||
|
4
|
4
11207-MGS-D30 Orifice (1.5mm) |
11207-MGS-D30 |
from US $3.56 |
||
|
5
|
5
12208-PR3-000 BoltSEALING, 20MM |
12208-PR3-000 |
from US $2.44 |
||
|
6
|
6
17640-MGS-D30 Stay, fuel hose |
17640-MGS-D30 |
US $6.38 |
||
|
7
|
7
35600-MFJ-D01 Switch, neutral |
35600-MFJ-D01 |
from US $16.86 |
||
|
8
|
8
37241-RNA-A01 Switch assy, OIL PRESSUREOIL PRESSURE |
37241-RNA-A01 |
from US $33.05 |
||
|
9
|
9
37700-MGS-D31 Sensor assy., speed |
37700-MGS-D31 |
from US $144.16 |
||
|
11
|
11
90002-RGA-000 Bolt, sealing (12x8) |
90002-RGA-000 |
from US $3.18 |
||
|
12
|
12
90004-MGS-D30 Bolt, flange (6x16) |
90004-MGS-D30 |
from US $1.01 |
||
|
13
|
13
90015-MGS-D31 Bolt, flange (9x150) |
90015-MGS-D31 |
from US $11.40 |
||
|
14
|
14
90016-MFA-D01 Bolt, flange (9x125) |
90016-MFA-D01 |
from US $5.48 |
||
|
15
|
15
90021-MFA-D00 Bolt, flange (6x45) |
90021-MFA-D00 |
from US $1.70 |
||
|
16
|
16
90021-MGS-D30 Bolt, flange (8x100) |
90021-MGS-D30 |
from US $2.81 |
||
|
17
|
17
90022-MGS-D30 Bolt, flange (6x32) |
90022-MGS-D30 |
from US $2.46 |
||
|
18
|
18
90442-028-000 Washer (8mm) |
90442-028-000 |
from US $1.26 |
||
|
20
|
20
90443-MJ6-000 Washer, neutral |
90443-MJ6-000 |
from US $1.70 |
||
|
21
|
21
90463-ML7-000 Washer (6.5mm) |
90463-ML7-000 |
from US $2.22 |
||
|
22
|
22
90545-KF0-000 Washer (12mm) |
90545-KF0-000 |
from US $2.66 |
||
|
23
|
23
90701-MV9-670 Pin, dowel (10x16) |
90701-MV9-670 |
from US $3.03 |
||
|
24
|
24
91356-MA6-005 O-ring (14.8x2.4) |
91356-MA6-005 |
from US $2.74 |
||
|
25
|
25
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
26
|
26
95701-0601800 Bolt, flange, 6x18 |
95701-0601800 |
from US $0.52 |
||
|
27
|
27
95701-080-450-0 BoltFLANGE, 8X45 |
95701-080-450-0 |
from US $0.81 |
||
|
28
|
28
95701-0807000 Bolt, flange, 8x70 |
95701-0807000 |
from US $0.89 |
||
|
29
|
29
95701-1007000 Bolt, flange, 10x70 |
95701-1007000 |
from US $1.18 |
