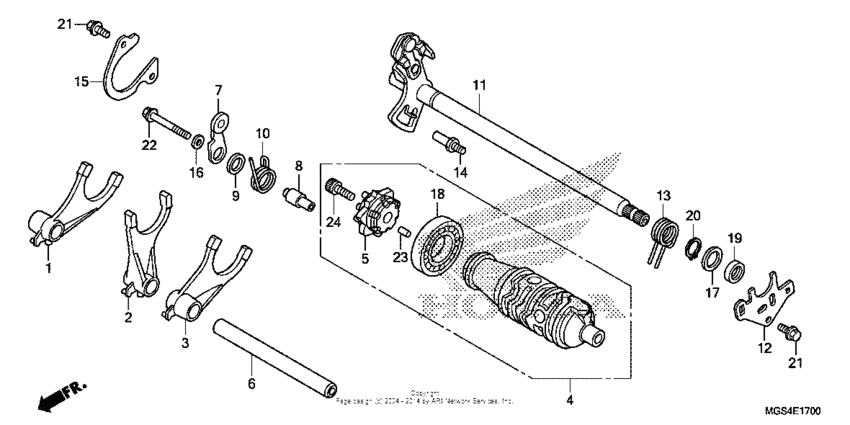

Gearshift drum (1) Diagram Honda NC700
- Year
- 2012
- Model code
- NC700X AC
- Sales region
- USA
- Frame
- JH2RC635*CK000001 - JH2RC635*CK099999
- Engine Capacity
- 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24211-MGS-D30 Fork, r. gearshift |
24211-MGS-D30 |
from US $75.48 |
||
|
2
|
2
24212-MGS-D30 Fork |
24212-MGS-D30 |
from US $75.48 |
||
|
3
|
3
24213-MGS-D30 Fork, l. gearshift |
24213-MGS-D30 |
from US $75.48 |
||
|
4
|
4
24310-MGS-D30 Drum, gearshift |
24310-MGS-D30 |
from US $215.42 |
||
|
5
|
5
24315-MAS-E00 Center, shift drum |
24315-MAS-E00 |
from US $27.61 |
||
|
6
|
6
24321-MAS-000 Shaft |
24321-MAS-000 |
from US $15.37 |
||
|
7
|
7
24430-MGS-D30 Stopper |
24430-MGS-D30 |
from US $14.65 |
||
|
8
|
8
24434-MGS-D30 Collar |
24434-MGS-D30 |
from US $7.10 |
||
|
9
|
9
24435-MGE-000 Collar |
24435-MGE-000 |
from US $2.59 |
||
|
10
|
10
24435-MGS-D30 Spring |
24435-MGS-D30 |
from US $3.70 |
||
|
11
|
11
24610-MGS-D30 Spindle, gearshift |
24610-MGS-D30 |
from US $100.64 |
||
|
12
|
12
24612-MGS-D30 Plate, spindle |
24612-MGS-D30 |
from US $2.55 |
||
|
13
|
13
24651-MGS-D30 Spring |
24651-MGS-D30 |
from US $5.03 |
||
|
14
|
14
24652-HA0-000 Pin |
24652-HA0-000 |
from US $4.88 |
||
|
15
|
15
24655-MGS-D30 Plate |
24655-MGS-D30 |
from US $3.85 |
||
|
16
|
16
90417-360-000 Washer, drum stopper |
90417-360-000 |
from US $2.22 |
||
|
17
|
17
90453-235-000 Washer, thrust, 16mm |
90453-235-000 |
from US $2.74 |
||
|
18
|
18
91007-MGS-D21 Bearing (25x47x8) |
91007-MGS-D21 |
from US $14.36 |
||
|
19
|
19
91201-MGS-D31 Oil seal (16x24x5) |
91201-MGS-D31 |
from US $8.88 |
||
|
20
|
20
9451016000 Circlip, external, 16mm |
9451016000 |
from US $0.52 |
||
|
21
|
21
95701-060-140-0 BoltFLANGE, 6X14 |
95701-060-140-0 |
from US $0.52 |
||
|
22
|
22
95701-060-450-8 BoltFLANGE, 6X45 |
95701-060-450-8 |
from US $0.74 |
||
|
23
|
23
9622040080 Roller, 4x8 |
9622040080 |
from US $0.22 |
||
|
24
|
24
96600-0802010 Bolt, socket (8x20) |
96600-0802010 |
from US $0.74 |
