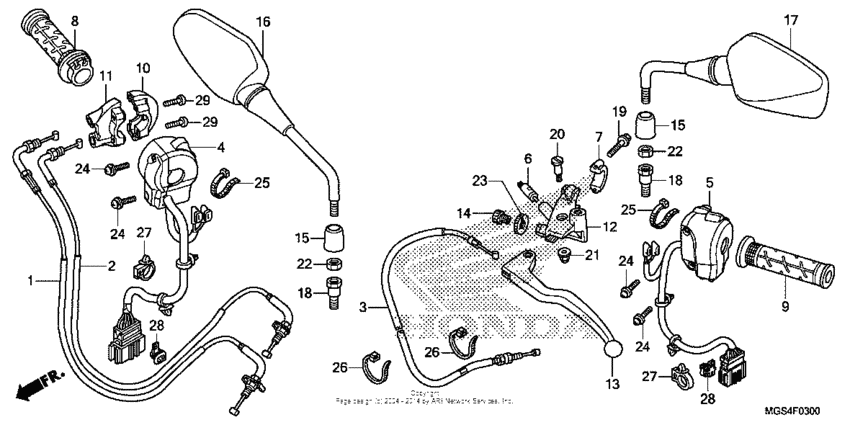

Handle lever + switch + cable (nc700x/xa) Diagram Honda NC700
- Year
- 2012
- Model code
- NC700X AC
- Sales region
- USA
- Frame
- JH2RC635*CK000001 - JH2RC635*CK099999
- Engine Capacity
- 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-MGS-D31 Cable A, Throttle |
17910-MGS-D31 |
from US $30.14 |
||
|
2
|
2
17920-MGS-D31 Cable B, Throttle |
17920-MGS-D31 |
from US $30.14 |
||
|
3
|
3
22870-MGS-D31 Cable, clutch |
22870-MGS-D31 |
from US $27.74 |
||
|
4
|
4
35130-MGS-D31 Switch, engine stop |
35130-MGS-D31 |
from US $91.12 |
||
|
5
|
5
35200-MGS-A31 Switch, turn signal |
35200-MGS-A31 |
from US $214.40 |
||
|
6
|
6
35330-413-003 Switch, fr. lever |
35330-413-003 |
from US $15.37 |
||
|
7
|
7
45517-166-006 Holder |
45517-166-006 |
from US $11.81 |
||
|
8
|
8
53140-MGS-305 Grip, throttle |
53140-MGS-305 |
US $29.22 |
||
| replacement | |||||
|
8
|
8
53140-MGS-D30 Grip, throttle |
53140-MGS-D30 |
from US $28.70 |
||
|
9
|
9
53150-MGS-305 Grip, l. handle |
53150-MGS-305 |
US $12.50 |
||
| replacement | |||||
|
9
|
9
53150-MGS-D30 Grip, l. handle |
53150-MGS-D30 |
from US $9.54 |
||
|
10
|
10
53167-MGS-D30 Housing, throttle |
53167-MGS-D30 |
from US $10.66 |
||
|
11
|
11
53168-MGS-D30 Housing, throttle |
53168-MGS-D30 |
from US $11.40 |
||
|
12
|
12
53172-KT7-751 Brkt, handle lever |
53172-KT7-751 |
from US $34.70 |
||
|
13
|
13
53178-KV0-305 Lever, l. handle |
53178-KV0-305 |
US $20.40 |
||
| replacement | |||||
|
13
|
13
53178-KV0-000 Lever, l. handle |
53178-KV0-000 |
from US $23.55 |
||
|
14
|
14
53192-349-690 Bolt |
53192-349-690 |
from US $10.03 |
||
|
15
|
15
88130-MFG-D00 Cover, lock nut |
88130-MFG-D00 |
from US $2.52 |
||
|
16
|
16
88210-MGS-305
Mirror, r. back
|
88210-MGS-305 |
— | ||
| replacement | |||||
|
16
|
16
88210-MGS-D30 MIRROR COMP R,BACK |
88210-MGS-D30 |
from US $100.42 |
||
|
17
|
17
88220-MGS-305 Mirror, l. back |
88220-MGS-305 |
US $77.45 |
||
| replacement | |||||
|
17
|
17
88220-MGS-D30 MIRROR COMP L BAC |
88220-MGS-D30 |
from US $100.42 |
||
|
18
|
18
90130-MGS-D30 Bolt, adapter (10mm) |
90130-MGS-D30 |
from US $7.55 |
||
|
19
|
19
90101-MBZ-G00 Bolt, flange (6x22) |
90101-MBZ-G00 |
from US $1.85 |
||
|
20
|
20
90113-438-000 Bolt, l |
90113-438-000 |
from US $6.22 |
||
|
21
|
21
90201-415-000 Nut, cap, 6mm |
90201-415-000 |
from US $3.18 |
||
|
22
|
22
90310-MGS-D30 Nut, hex. (10mm) |
90310-MGS-D30 |
from US $2.44 |
||
|
23
|
23
90321-KT7-760 Nut, fixing |
90321-KT7-760 |
from US $7.31 |
||
|
24
|
24
90508-MGS-D30 Screw-washer (5x16) |
90508-MGS-D30 |
from US $1.48 |
||
|
25
|
25
90650-KW3-000 Band, wire |
90650-KW3-000 |
from US $3.03 |
||
|
26
|
26
90651-KV6-003 Band, wire, 165mm (black) |
90651-KV6-003 |
from US $3.11 |
||
|
27
|
27
90652-HC4-003 ClampHARNESS |
90652-HC4-003 |
from US $2.05 |
||
|
28
|
28
91533-MGS-D30 Clip, connector |
91533-MGS-D30 |
from US $1.33 |
||
|
29
|
29
93500-050220G Screw, pan (5x22) |
93500-050220G |
from US $0.44 |
||
