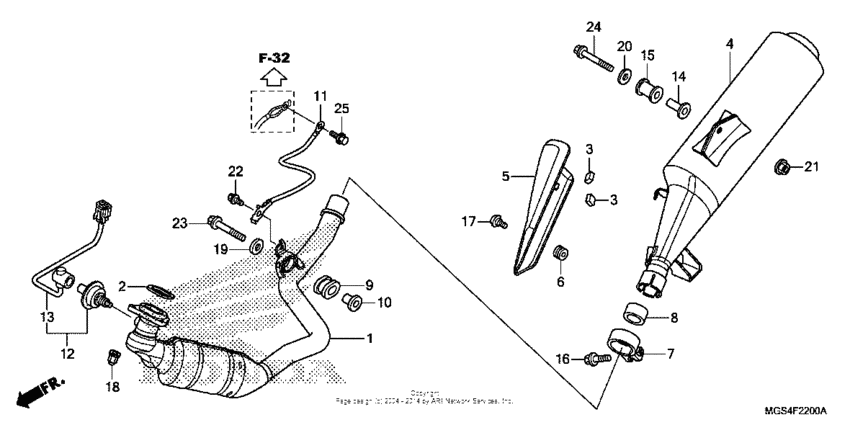

Muffler Diagram Honda NC700
- Year
- 2012
- Model code
- NC700X AC
- Sales region
- USA
- Frame
- JH2RC635*CK000001 - JH2RC635*CK099999
- Engine Capacity
- 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18150-MGS-D33 Pipe, ex. |
18150-MGS-D33 |
from US $772.48 |
||
|
2
|
2
18291-MGS-D31 Gasket, ex. pipe |
18291-MGS-D31 |
from US $6.98 |
||
|
3
|
3
18293-MCA-A20 Rubber |
18293-MCA-A20 |
from US $2.52 |
||
|
4
|
4
18310-MGS-305 Muffler |
18310-MGS-305 |
US $464.64 |
||
| replacement | |||||
|
4
|
4
18310-MGS-D32 Muffler | Use From Frame Sn Fk100845 |
18310-MGS-D32 |
from US $464.64 |
||
|
5
|
5
18342-MGS-D31 Cover, muffler |
18342-MGS-D31 |
from US $55.08 |
||
|
6
|
6
18345-MBT-610 Rubber |
18345-MBT-610 |
from US $2.52 |
||
|
7
|
7
18373-413-000 Band, r. fr. muffler |
18373-413-000 |
from US $19 |
||
|
8
|
8
18392-MK4-000 Gasket, muffler |
18392-MK4-000 |
from US $8.64 |
||
|
9
|
9
18422-MFJ-D10 Rubber |
18422-MFJ-D10 |
from US $18.77 |
||
|
10
|
10
18423-MGS-D30 Collar |
18423-MGS-D30 |
from US $4.29 |
||
|
11
|
11
32200-MGS-D30 Sub-harness |
32200-MGS-D30 |
from US $6.81 |
||
|
12
|
12
36532-MGS-D31 Sensor, oxygen |
36532-MGS-D31 |
from US $195.84 |
||
|
13
|
13
36533-MGS-D31 Wire, oxygen sensor |
36533-MGS-D31 |
from US $43.38 |
||
|
14
|
14
50607-KK6-000 Collar |
50607-KK6-000 |
from US $5.33 |
||
|
15
|
15
50608-KV0-000 Rubber |
50608-KV0-000 |
from US $4.44 |
||
|
16
|
16
90103-KCM-620 Bolt, flange (8x35) |
90103-KCM-620 |
from US $1.08 |
||
|
17
|
17
90113-GFP-B00 Screw, pan (6x12) |
90113-GFP-B00 |
from US $2.22 |
||
|
18
|
18
90304-ME1-670 Nut, cap (8mm) |
90304-ME1-670 |
from US $3.01 |
||
|
19
|
19
90501-819-000 Washer, 8mm |
90501-819-000 |
US $2.31 |
||
|
20
|
20
90534-MV4-000 Washer (8.5x28) |
90534-MV4-000 |
from US $2 |
||
|
21
|
21
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
22
|
22
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
23
|
23
96300-080-450-4 Bolt, flange (8x45) |
96300-080-450-4 |
from US $0.89 |
||
|
24
|
24
96300-080-500-4 Bolt, flange (8x50) |
96300-080-500-4 |
from US $0.89 |
||
|
25
|
25
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
