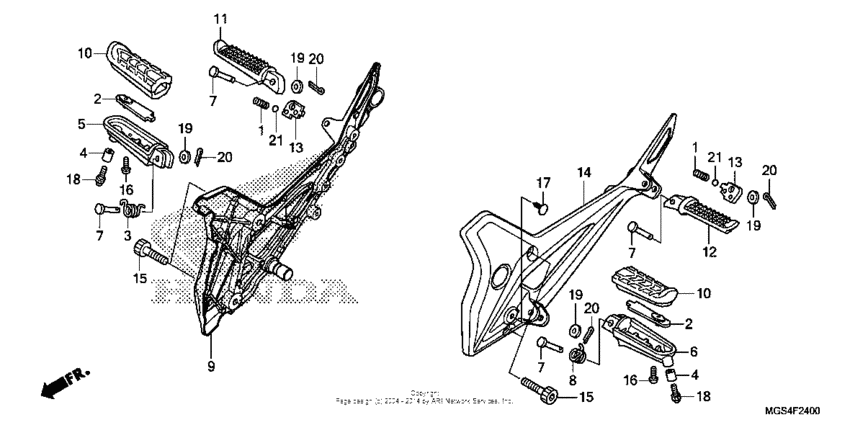

Step Diagram Honda NC700
- Year
- 2012
- Model code
- NC700X AC
- Sales region
- USA
- Frame
- JH2RC635*CK000001 - JH2RC635*CK099999
- Engine Capacity
- 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28333-300-000 Spring |
28333-300-000 |
from US $2.11 |
||
|
2
|
2
50609-MBW-000 Plate, step setting |
50609-MBW-000 |
from US $6.66 |
||
|
3
|
3
50617-445-840 Spring, r |
50617-445-840 |
from US $3.11 |
||
|
4
|
4
50631-MGS-D30 Collar (6x6.5) |
50631-MGS-D30 |
from US $1.85 |
||
|
5
|
5
50635-MGS-305 Arm, r. main step |
50635-MGS-305 |
US $73.54 |
||
|
6
|
6
50636-MGS-305 Arm, l. main step |
50636-MGS-305 |
US $73.47 |
||
|
7
|
7
50639-MFL-D20 Pin, step bar |
50639-MFL-D20 |
from US $3.02 |
||
|
8
|
8
50644-445-840 Spring, l |
50644-445-840 |
from US $3.77 |
||
|
9
|
9
50650-MGS-D31ZA Holder, r. *nh146m*Digital silver metallic NHA30M; |
50650-MGS-D31ZA |
from US $259.76 |
||
|
10
|
10
50661-MBW-000 Rubber, main step |
50661-MBW-000 |
from US $7 |
||
| replacement | |||||
|
10
|
10
50661-MJM-305 RUBBER, MAIN STEP |
50661-MJM-305 |
from US $9.71 |
||
|
11
|
11
50711-MGS-305 Arm, r. pillion step |
50711-MGS-305 |
US $77.30 |
||
|
12
|
12
50712-MGS-305 Arm, l. pillion step |
50712-MGS-305 |
US $77.30 |
||
|
13
|
13
50718-MN8-000 Plate,pillion ste |
50718-MN8-000 |
from US $3.40 |
||
|
14
|
14
50750-MGS-D30ZA Holder, l. *nh146m*Digital silver metallic NHA30M; |
50750-MGS-D30ZA |
from US $259.76 |
||
|
15
|
15
90112-MBR-J10 Bolt,socket 8x34 |
90112-MBR-J10 |
from US $2.43 |
||
|
16
|
16
90118-MBW-000 Bolt, special (5x14) |
90118-MBW-000 |
from US $2.15 |
||
|
18
|
18
92501-06016-0A BoltCAP, 6X16 |
92501-06016-0A |
from US $1.04 |
||
|
19
|
19
94102-08000 Washer, plain, 8mm |
94102-08000 |
from US $0.37 |
||
|
20
|
20
94201-20150 Pin |
94201-20150 |
from US $0.37 |
||
|
21
|
21
96211-08000 Ball |
96211-08000 |
from US $0.22 |
||
