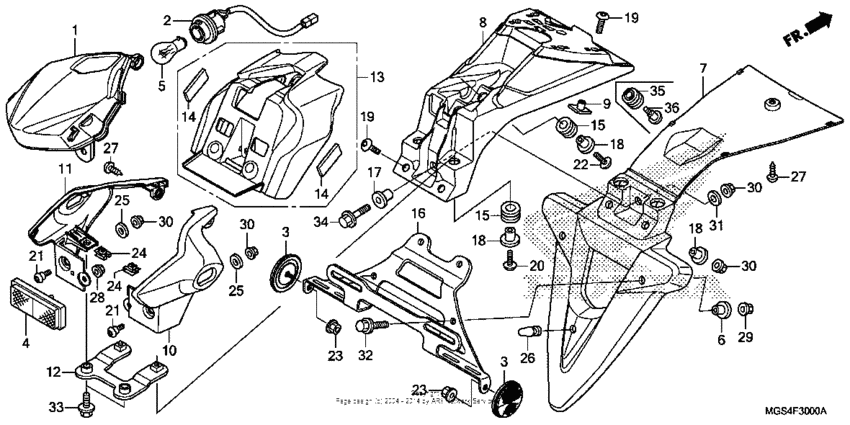

Taillight Diagram Honda NC700
- Year
- 2012
- Model code
- NC700X AC
- Sales region
- USA
- Frame
- JH2RC635*CK000001 - JH2RC635*CK099999
- Engine Capacity
- 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33703-MGS-D31 Base, taillight |
33703-MGS-D31 |
US $96.56 |
||
| replacement | |||||
|
1
|
1
33703-MGS-305 Base, taillight |
33703-MGS-305 |
US $118.93 |
||
|
1
|
1
33703-MGS-305 Base, taillight |
33703-MGS-305 |
US $118.93 |
||
|
2
|
2
33704-MGS-A31 Wire, taillight |
33704-MGS-A31 |
US $24.97 |
||
|
3
|
3
33741-HB9-641 Reflector, rr. |
33741-HB9-641 |
from US $16.92 |
||
|
4
|
4
33741-MS6-921 Reflector, reflex (stanley) |
33741-MS6-921 |
from US $16.86 |
||
|
5
|
5
34906-447-711 Bulb (12v21/5w) |
34906-447-711 |
from US $11.10 |
||
|
6
|
6
61105-KM7-910 Collar, fr. fender |
61105-KM7-910 |
from US $1.64 |
||
|
7
|
7
80100-MGS-C80 Fender a, rr.Use up to Frame SN CK002268 |
80100-MGS-C80 |
US $40 |
||
|
7
|
7
80100-MJJ-C80 Fender a, rr.Use from Frame SN CK002269 |
80100-MJJ-C80 |
from US $40.53 |
||
|
8
|
8
80101-MGS-D30 Stay a, fender |
80101-MGS-D30 |
from US $46.24 |
||
|
9
|
9
80104-KJ2-000 Nut, rr. fender |
80104-KJ2-000 |
from US $2.75 |
||
|
10
|
10
80115-MGS-D30 Cover, r. taillight |
80115-MGS-D30 |
from US $15.37 |
||
|
11
|
11
80116-MGS-D30 Cover, l. taillight |
80116-MGS-D30 |
from US $15.37 |
||
|
12
|
12
80118-MGS-C80 Stay |
80118-MGS-C80 |
US $9.89 |
||
|
13
|
13
80120-MGS-C80 Splash guard, rr. |
80120-MGS-C80 |
US $33.80 |
||
|
14
|
14
80129-MEG-000 Rubber, rr. frame |
80129-MEG-000 |
from US $1.55 |
||
|
15
|
15
83545-KCJ-690 Rubber,side cover |
83545-KCJ-690 |
from US $1.41 |
||
|
16
|
16
84700-MGS-C80 Brkt, number plate |
84700-MGS-C80 |
from US $22.12 |
||
|
17
|
17
84706-163-670 Collar, taillight mounting |
84706-163-670 |
from US $4.14 |
||
|
18
|
18
90001-961-670 Colr, side mounting |
90001-961-670 |
from US $4.29 |
||
|
19
|
19
90085-KFB-000 Bolt, special (6x22) |
90085-KFB-000 |
from US $2.52 |
||
|
20
|
20
90085-MAJ-A20 Bolt, special (6x17) |
90085-MAJ-A20 |
from US $2.52 |
||
|
21
|
21
90106-KBV-000 Screw, pan (6x14) |
90106-KBV-000 |
from US $2.29 |
||
|
22
|
22
90115-MFL-D20 Screw, pan (6x20) |
90115-MFL-D20 |
from US $2.29 |
||
|
23
|
23
90301-473-003 Nut, u, 6mm |
90301-473-003 |
from US $2.92 |
||
|
24
|
24
90305-GK8-000 Nut, clip (6mm) |
90305-GK8-000 |
from US $2.22 |
||
|
25
|
25
90525-030-000 Washer b, handle holder setting |
90525-030-000 |
from US $2.59 |
||
|
26
|
26
90899-MFJ-A00 Plug, cone |
90899-MFJ-A00 |
from US $3.26 |
||
|
27
|
27
93903-24320 ScrewTAPPING, 4X12 |
93903-24320 |
from US $0.37 |
||
|
28
|
28
94050-05000 NutFLANGE, 5MM |
94050-05000 |
from US $0.22 |
||
|
29
|
29
94050-06070 Nut |
94050-06070 |
from US $0.52 |
||
|
30
|
30
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
31
|
31
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
32
|
32
95701-060-160-7 BoltFLANGE, 6X16 |
95701-060-160-7 |
from US $0.52 |
||
|
33
|
33
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.52 |
||
|
34
|
34
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
