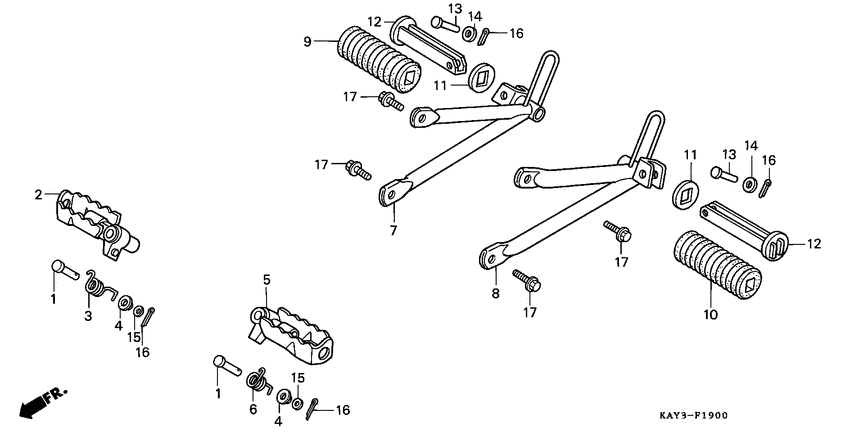

Step Diagram Honda NX125
- Year
- 1989
- Model code
- NX125K
- Sales region
- Italy
- Frame
- HIJD120015901 - HIJD120999999
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50603-MC4-000 Pin, step bar joint |
50603-MC4-000 |
from US $3.77 |
||
|
2
|
2
50616-MC4-000
Step comp.,r.
|
50616-MC4-000 |
— | ||
|
3
|
3
50617-MC4-000
Spg,r.step return
|
50617-MC4-000 |
— | ||
|
4
|
4
50622-KG1-000 Collar |
50622-KG1-000 |
from US $5.40 |
||
|
5
|
5
50642-MC4-000
Step comp.,l.
|
50642-MC4-000 |
— | ||
|
6
|
6
50644-MC4-000
Spg,l.step return
|
50644-MC4-000 |
— | ||
|
7
|
7
50701-KAY-600ZA
Pipe comp.*nh250*
|
50701-KAY-600ZA |
— | ||
|
7
|
7
50701-KAY-600ZB
Pipe comp.*rp123*
|
50701-KAY-600ZB |
— | ||
|
8
|
8
50702-KAY-600ZA
Pipe comp.*nh250*
|
50702-KAY-600ZA |
— | ||
|
8
|
8
50702-KAY-600ZB
Pipe comp.*rp123*
|
50702-KAY-600ZB |
— | ||
|
9
|
9
50709-383-920
Step rub.,r.pilli
|
50709-383-920 |
— | ||
|
10
|
10
50710-383-920
Stet rub pillion
|
50710-383-920 |
— | ||
|
11
|
11
50712-KB1-910
Washer,p.step
|
50712-KB1-910 |
— | ||
|
12
|
12
50715-KB1-910
Bar,p.step
|
50715-KB1-910 |
— | ||
|
13
|
13
50715-383-920
Pillion step pin
|
50715-383-920 |
— | ||
|
14
|
14
94101-06000 WasherPLAIN, 6MM |
94101-06000 |
from US $0.25 |
||
| replacement | |||||
|
14
|
14
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
15
|
15
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.25 |
||
|
16
|
16
94201-16150 PinSPLIT, 1.6X15 |
94201-16150 |
from US $0.37 |
||
| replacement | |||||
|
16
|
16
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
17
|
17
95701-080-200-0 Bolt, flange, 8x20 |
95701-080-200-0 |
from US $0.59 |
||
