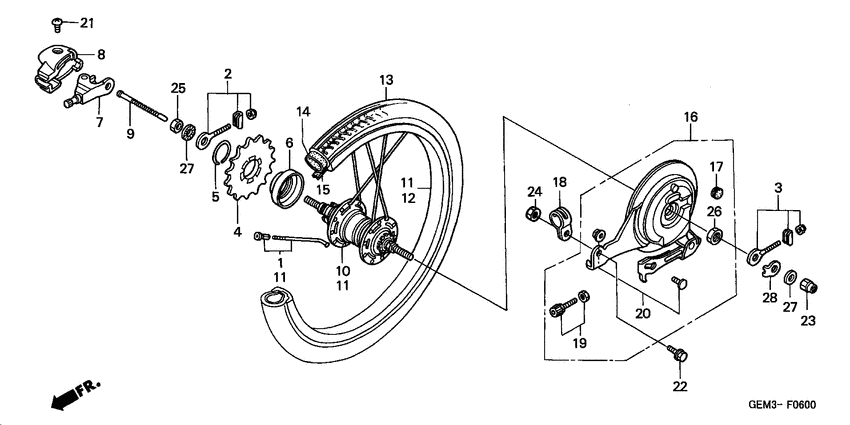

Rear wheel Diagram Honda PAC16A Racoon
- Year
- 2000
- Model code
- PAC16A2Y
- Sales region
- Italy
- Frame
- UB095000001 - UB095999999
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06420-GEM-730
Spoke set
|
06420-GEM-730 |
— | ||
|
2
|
2
40540-GEM-701 Adjuster assy,r,d |
40540-GEM-701 |
US $2.63 |
||
|
3
|
3
40550-GBT-631 Adjuster assy,l,d |
40550-GBT-631 |
US $2.63 |
||
|
4
|
4
41201-GEM-701
Sprocket,final dr
|
41201-GEM-701 |
— | ||
|
5
|
5
41202-GEM-701
Snap ring,driven
|
41202-GEM-701 |
— | ||
|
6
|
6
41203-GEM-701 Right handdust ca |
41203-GEM-701 |
US $1.55 |
||
|
7
|
7
41280-GEM-701
Bell crank
|
41280-GEM-701 |
— | ||
|
8
|
8
41281-GEM-701
Cover,bell crank
|
41281-GEM-701 |
— | ||
|
9
|
9
41285-GEM-701 Push rod,hub gear |
41285-GEM-701 |
US $2.63 |
||
|
10
|
10
42610-GEM-701
Hub assy,gear
|
42610-GEM-701 |
— | ||
|
11
|
11
42650-GEM-730
Wheel set,rr
|
42650-GEM-730 |
— | ||
|
12
|
12
42701-GCT-K11
Rim,wheel
|
42701-GCT-K11 |
— | ||
|
13
|
13
42711-GEM-731
Tire(irc)
|
42711-GEM-731 |
— | ||
|
13
|
13
42711-GEM-732
Tire(c.s)
|
42711-GEM-732 |
— | ||
|
14
|
14
42712-GEM-731
Tube,tire(irc)
|
42712-GEM-731 |
— | ||
|
14
|
14
42712-GEM-732
Tube,tire(c.s)
|
42712-GEM-732 |
— | ||
|
15
|
15
42713-GBT-000
Flap,tire
|
42713-GBT-000 |
— | ||
|
15
|
15
42713-GEM-732 Flap,tire(c.s) |
42713-GEM-732 |
US $4.62 |
||
|
16
|
16
43000-GEM-691 Brake assy,rr |
43000-GEM-691 |
US $37.04 |
||
|
17
|
17
43111-GEM-701
Cap,grease hole
|
43111-GEM-701 |
— | ||
|
18
|
18
43453-GEM-701
Band,arm
|
43453-GEM-701 |
— | ||
|
19
|
19
43480-GEM-700
Bolt unitouter ad
|
43480-GEM-700 |
— | ||
|
20
|
20
43490-GEM-700
Bolt unitinner se
|
43490-GEM-700 |
— | ||
|
21
|
21
90111-GEM-701 Screw,4x5 |
90111-GEM-701 |
US $1.71 |
||
|
22
|
22
90112-GEM-701
Bolt,band 6x18
|
90112-GEM-701 |
— | ||
|
23
|
23
90302-GEM-701 Nut,rr axle |
90302-GEM-701 |
US $1.40 |
||
|
24
|
24
90304-GEM-701
Nut,band 6mm
|
90304-GEM-701 |
— | ||
|
25
|
25
90305-GEM-701 Nut,rr axle |
90305-GEM-701 |
US $0.92 |
||
|
26
|
26
90307-GEM-701 Nut,rr brk side |
90307-GEM-701 |
US $1.08 |
||
|
27
|
27
90501-GEM-701
Washer,rr axle
|
90501-GEM-701 |
— | ||
|
28
|
28
90511-GEM-701
Washer-2,rr axle
|
90511-GEM-701 |
— |
