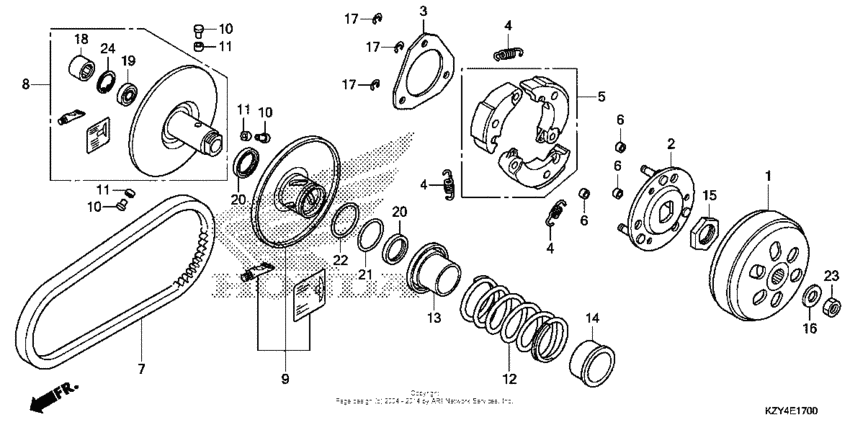

Driven face Diagram Honda PCX150
- Year
- 2013
- Model code
- PCX150 AC
- Sales region
- USA
- Frame
- MLHKF121*D5000001 -
- Engine Capacity
- 150
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22100-KWN-900 Outer comp,clutch |
22100-KWN-900 |
from US $30.16 |
||
|
2
|
2
22350-KVB-900 Plate comp,drive |
22350-KVB-900 |
from US $9.84 |
||
|
3
|
3
22361-KVB-900 Plate,clutch side |
22361-KVB-900 |
from US $4.66 |
||
|
4
|
4
22401-KGF-912 Spring,clutch12kg |
22401-KGF-912 |
from US $4.29 |
||
|
5
|
5
22535-KWN-900 Weight set,clutch |
22535-KWN-900 |
from US $40.95 |
||
|
6
|
6
22804-148-000 Rubber, clutch damper |
22804-148-000 |
from US $2.44 |
||
|
7
|
7
23100-KZY-701 Belt, drive |
23100-KZY-701 |
from US $44.76 |
||
|
8
|
8
23205-KWN-640 Face set,driven |
23205-KWN-640 |
from US $53.99 |
||
|
9
|
9
23224-KWN-640 Face set,movable |
23224-KWN-640 |
from US $37.79 |
||
|
10
|
10
23225-KSY-900 Pin, roller guide |
23225-KSY-900 |
from US $2.29 |
||
|
11
|
11
23226-KVB-900 Roller,guide |
23226-KVB-900 |
US $2.07 |
||
| replacement | |||||
|
11
|
11
23226-GFM-900 Roller, guide |
23226-GFM-900 |
from US $2 |
||
|
12
|
12
23233-KWN-900
Spg,lh driven face
|
23233-KWN-900 |
— | ||
| replacement | |||||
|
12
|
12
23233-KWN-901 SPRING, DRIVEN FACE |
23233-KWN-901 |
from US $14.01 |
||
|
13
|
13
23237-KWN-900 Collar,seal |
23237-KWN-900 |
from US $7.99 |
||
|
14
|
14
23238-KWN-900 Collar,spg |
23238-KWN-900 |
from US $3.16 |
||
|
15
|
15
90202-KN7-670 Nut,special 30mm |
90202-KN7-670 |
from US $4 |
||
|
16
|
16
90441-GY6-940 Washer,12.2x29x2. |
90441-GY6-940 |
from US $4 |
||
|
17
|
17
90605-166-720 Circlip, 7mm |
90605-166-720 |
from US $1.39 |
||
|
18
|
18
91001-KCW-003 Brg,needle 20x29x |
91001-KCW-003 |
from US $11.59 |
||
|
18
|
18
91109-KVY-901 Bearing (20x29x18) |
91109-KVY-901 |
US $9.78 |
||
| replacement | |||||
|
18
|
18
91109-KVY-902 BEARING (20X29X18) |
91109-KVY-902 |
from US $9.78 |
||
|
19
|
19
91002-GA7-701 Bearing (6902u) |
91002-GA7-701 |
from US $10.66 |
||
|
19
|
19
91009-KVY-961 Bearing (6902u) |
91009-KVY-961 |
from US $7.06 |
||
|
20
|
20
91211-KN7-671 Seal,driven face, |
91211-KN7-671 |
from US $5.62 |
||
|
21
|
21
91351-642-000 O-ring (36.7x1.9) |
91351-642-000 |
from US $3.55 |
||
|
22
|
22
91351-GR1-000 O-ring,38.5x2 |
91351-GR1-000 |
from US $4.28 |
||
|
23
|
23
9403012200 Nut, hex., 12mm |
9403012200 |
from US $0.59 |
||
|
24
|
24
94520-28000 CirclipINTERNAL, 28MM |
94520-28000 |
from US $0.81 |
||
