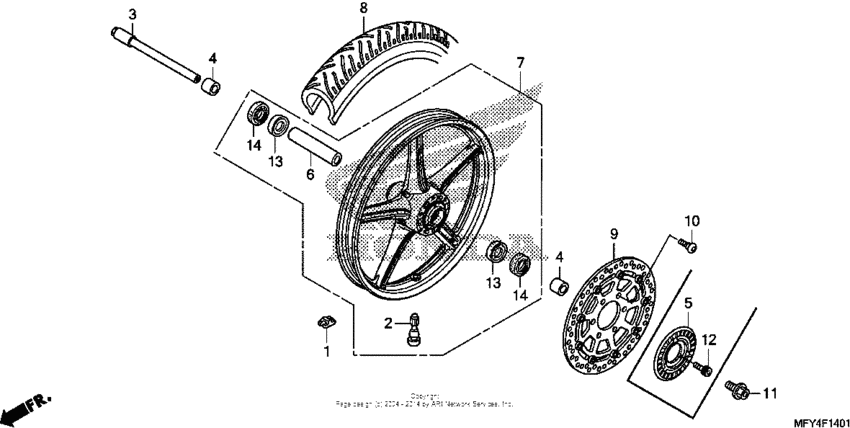

Front wheel (2) Diagram Honda VT1300 Sabre
- Year
- 2011
- Model code
- VT1300CS AC
- Sales region
- USA
- Frame
- JH2SC671*BK100001 -
- Engine Capacity
- 1300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42704-MER-D00 Weight (10g) |
42704-MER-D00 |
from US $10.21 |
||
|
1
|
1
42705-MER-D00 Weight (20g) |
42705-MER-D00 |
from US $10.21 |
||
|
1
|
1
42706-MER-D00 Weight (30g) |
42706-MER-D00 |
from US $10.21 |
||
|
2
|
2
42753-ML7-003 Valve, rim |
42753-ML7-003 |
from US $7.84 |
||
|
2
|
2
42753-ML7-004 Valve, rim |
42753-ML7-004 |
from US $9.61 |
||
|
3
|
3
44301-MFR-670 Axle, fr. wheel |
44301-MFR-670 |
from US $74.12 |
||
|
4
|
4
44311-MCH-A00 Collar, l. fr. |
44311-MCH-A00 |
from US $10.06 |
||
|
6
|
6
44620-MFR-670 Collar, fr |
44620-MFR-670 |
from US $13.47 |
||
|
7
|
7
44650-MFW-305 Wheel sub-assy., fr. |
44650-MFW-305 |
US $1,258.80 |
||
|
8
|
8
44711-MFW-A01 Tire, fr. |
44711-MFW-A01 |
US $315.83 |
||
|
8
|
8
44711-MFW-A02
Tire, fr.
|
44711-MFW-A02 |
— | ||
| replacement | |||||
|
8
|
8
44711-MFW-A03
TIRE, FR.
|
44711-MFW-A03 |
— | ||
|
9
|
9
45120-MFR-671 Disk, fr. brake |
45120-MFR-671 |
from US $518.14 |
||
|
10
|
10
90103-MFY-A00 Bolt, disk (8x22) |
90103-MFY-A00 |
from US $4.44 |
||
|
11
|
11
90105-MBT-610 Bolt, fr. axle |
90105-MBT-610 |
from US $6.96 |
||
|
13
|
13
91053-MM5-004 Bearing (6304uu) |
91053-MM5-004 |
from US $11.90 |
||
|
14
|
14
91253-442-003 Dust seal (30x52x7) |
91253-442-003 |
from US $7.02 |
||
