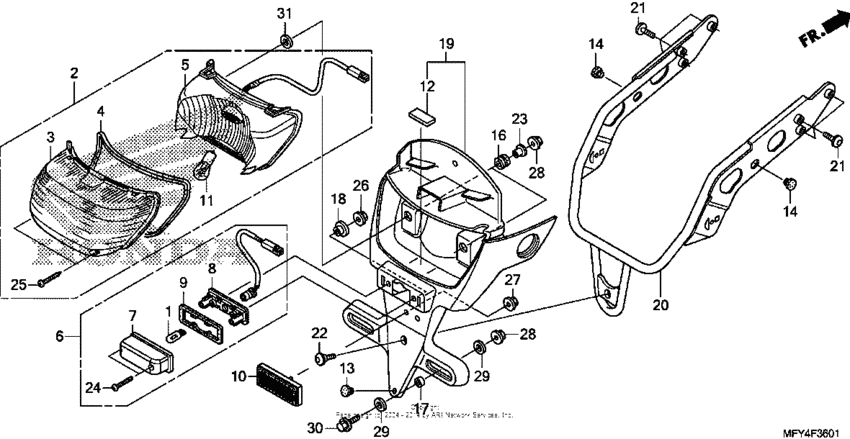

Taillight + license light (2) Diagram Honda VT1300 Sabre
- Year
- 2011
- Model code
- VT1300CS AC
- Sales region
- USA
- Frame
- JH2SC671*BK100001 -
- Engine Capacity
- 1300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33301-SA0-741 Bulb (12V 5W)(12V 5W) (STANLEY) |
33301-SA0-741 |
from US $2.37 |
||
|
2
|
2
33701-MFW-003 Taillight assy. |
33701-MFW-003 |
from US $66.50 |
||
|
3
|
3
33702-MFE-305 Lens, taillight |
33702-MFE-305 |
from US $18.90 |
||
| replacement | |||||
|
3
|
3
33702-MFE-671 Lens, taillight |
33702-MFE-671 |
from US $19.86 |
||
|
4
|
4
33703-MFE-671 Gasket, taillight |
33703-MFE-671 |
from US $6.22 |
||
|
5
|
5
33707-MFW-003 Base, taillight |
33707-MFW-003 |
from US $41.97 |
||
|
6
|
6
33720-MFW-003 Light assy., license |
33720-MFW-003 |
from US $55.76 |
||
|
7
|
7
33721-GET-671 Cover, license |
33721-GET-671 |
from US $14.42 |
||
|
8
|
8
33723-MCZ-671 Base, license |
33723-MCZ-671 |
from US $20.01 |
||
|
9
|
9
33729-MCZ-003 Gasket, lens |
33729-MCZ-003 |
from US $5.77 |
||
|
10
|
10
33741-MS6-921 Reflector, reflex (stanley) |
33741-MS6-921 |
from US $16.86 |
||
|
11
|
11
34906-447-711 Bulb (12v21/5w) |
34906-447-711 |
from US $11.10 |
||
|
12
|
12
50283-KSC-300 Rubber, battery |
50283-KSC-300 |
from US $1.41 |
||
|
13
|
13
50352-GS6-000 Rubber, link stopper |
50352-GS6-000 |
from US $2.52 |
||
|
14
|
14
77212-965-000 Rubber, seat side |
77212-965-000 |
from US $4.44 |
||
|
16
|
16
80101-310-000 Rubber, rr. fender cushion |
80101-310-000 |
from US $3.11 |
||
|
17
|
17
80104-065-000 Collar, taillight |
80104-065-000 |
from US $3.03 |
||
|
18
|
18
80114-KG7-000 Collar, rr. fender |
80114-KG7-000 |
from US $3.18 |
||
|
19
|
19
80115-MFW-A00 Fender assy. a, rr. |
80115-MFW-A00 |
from US $26.75 |
||
|
20
|
20
80132-MFW-A00 Stay, rr. fender |
80132-MFW-A00 |
US $317.17 |
||
|
21
|
21
90118-MR1-000 Screw, pan (6x14) |
90118-MR1-000 |
from US $2.07 |
||
|
22
|
22
90124-MY6-670 Screw, pan (6x13) |
90124-MY6-670 |
from US $2.89 |
||
|
23
|
23
90502-GG2-000 Collar, rr. fender |
90502-GG2-000 |
from US $3.18 |
||
|
24
|
24
93901-24480 ScrewTAPPING, 4X16 |
93901-24480 |
from US $0.37 |
||
|
25
|
25
93901347G0 Screw, tap (4x30) |
93901347G0 |
from US $1.11 |
||
|
26
|
26
94050-05000 NutFLANGE, 5MM |
94050-05000 |
from US $0.22 |
||
|
27
|
27
94050-05070 NutFLANGE, 5MM |
94050-05070 |
from US $0.44 |
||
|
28
|
28
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
29
|
29
94103-06000 WasherPLAIN, 6MM |
94103-06000 |
from US $0.37 |
||
|
30
|
30
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.52 |
||
|
31
|
31
90473-896-000 Washer, 6mm |
90473-896-000 |
US $2.94 |
||
