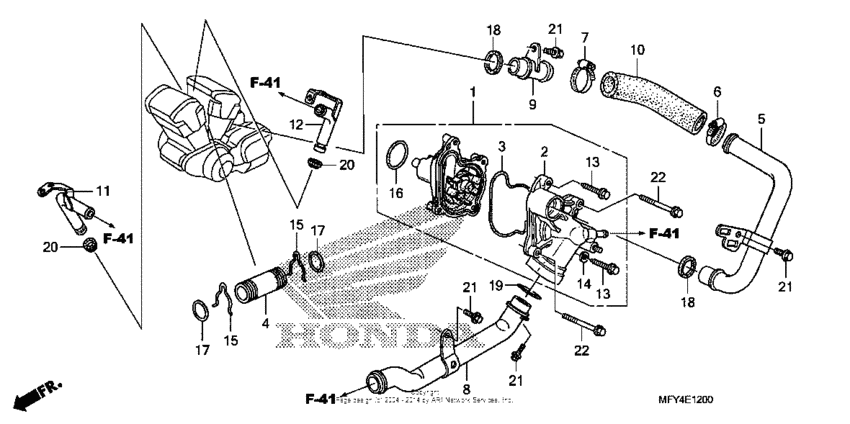

Water pump Diagram Honda VT1300 Sabre
- Year
- 2011
- Model code
- VT1300CS AC
- Sales region
- USA
- Frame
- JH2SC671*BK100001 -
- Engine Capacity
- 1300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19200-MEA-670 Water pump assy |
19200-MEA-670 |
from US $210.80 |
||
|
2
|
2
19220-MEA-670 Cover, water pump |
19220-MEA-670 |
from US $67.69 |
||
|
3
|
3
19226-MEA-670 Gasket |
19226-MEA-670 |
from US $6.96 |
||
|
4
|
4
19505-MFR-670 Joint, water |
19505-MFR-670 |
from US $31.68 |
||
|
5
|
5
19510-MFR-670 Pipe a, water |
19510-MFR-670 |
US $36.62 |
||
|
6
|
6
19516-MB6-000 Clamp, water hose |
19516-MB6-000 |
from US $9.32 |
||
|
7
|
7
19516-MER-D10 Clamp (30-37mm) |
19516-MER-D10 |
from US $9.78 |
||
|
8
|
8
19520-MFR-670 Pipe b, water |
19520-MFR-670 |
from US $47.27 |
||
|
9
|
9
19524-MCH-000 Pipe c, water |
19524-MCH-000 |
from US $16.73 |
||
|
10
|
10
19526-MEA-670 Hose, in. water |
19526-MEA-670 |
from US $7.55 |
||
|
11
|
11
19530-MFR-670 Pipe, fr |
19530-MFR-670 |
from US $22.68 |
||
|
12
|
12
19540-MFR-670 Pipe, rr. |
19540-MFR-670 |
from US $22.68 |
||
|
13
|
13
90121-MV9-670 Bolt, flange (6x25) |
90121-MV9-670 |
from US $2.66 |
||
|
14
|
14
90463-ML7-000 Washer (6.5mm) |
90463-ML7-000 |
from US $2.22 |
||
|
15
|
15
90601-MCH-000 Clip, ring (24mm) |
90601-MCH-000 |
from US $2.66 |
||
|
16
|
16
91302-MB0-013 O-ring (32.95x2.62) |
91302-MB0-013 |
from US $3.03 |
||
|
17
|
17
91311-MCH-003 O-ring (23.5x2.2) |
91311-MCH-003 |
from US $3.40 |
||
|
18
|
18
91315-MB0-013 Seal, water pipe |
91315-MB0-013 |
from US $1.76 |
||
|
19
|
19
91315-MCH-003 O-ring (27x3,1) |
91315-MCH-003 |
from US $6.51 |
||
|
20
|
20
91315-ME9-003 Seal, water pipe |
91315-ME9-003 |
from US $1.82 |
||
|
21
|
21
95701-060-140-0 BoltFLANGE, 6X14 |
95701-060-140-0 |
from US $0.52 |
||
|
22
|
22
95701-060-450-7 BoltFLANGE, 6X45 |
95701-060-450-7 |
from US $0.74 |
