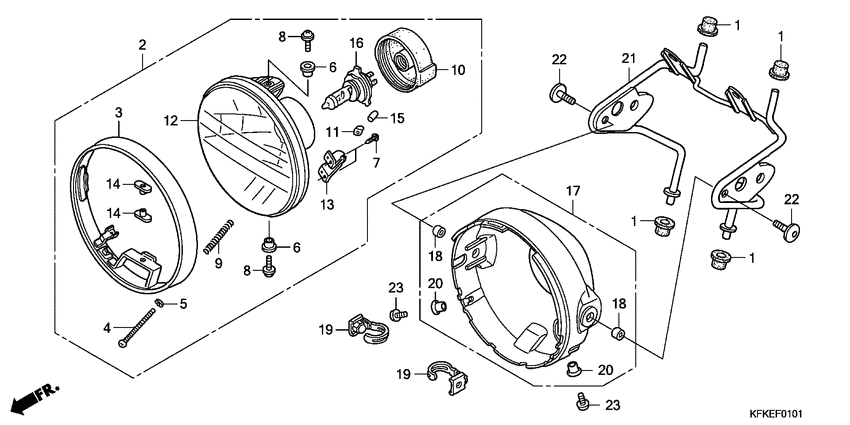

Headlight (VTR250-U) Diagram Honda VTR250 VTR
- Year
- 2009
- Model code
- VTR2509
- Sales region
- Australia
- Frame
- JH2MC33U*9K000001 - JH2MC33U*9K999999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19051-MB2-000 Rubber |
19051-MB2-000 |
from US $3.40 |
||
|
2
|
2
33100-MAZ-003 Headlight (12v 60/55w) |
33100-MAZ-003 |
from US $189.25 |
||
|
3
|
3
33101-MAZ-003 Rim, headlight |
33101-MAZ-003 |
from US $66.40 |
||
|
4
|
4
33103-MAH-671 Screw |
33103-MAH-671 |
from US $1.44 |
||
|
5
|
5
33105-MAH-671 Washer |
33105-MAH-671 |
from US $1.26 |
||
|
6
|
6
33105-MAZ-003 Collar |
33105-MAZ-003 |
from US $1.33 |
||
|
7
|
7
33106-MAZ-003 Screw, tap (4x14) |
33106-MAZ-003 |
from US $1.18 |
||
|
8
|
8
33106-MZ0-671 Screw-washer |
33106-MZ0-671 |
from US $1.63 |
||
|
9
|
9
33107-MK7-671 Spring |
33107-MK7-671 |
US $6.02 |
||
|
10
|
10
33112-MZ0-671 Cover, rubber |
33112-MZ0-671 |
from US $10.66 |
||
|
11
|
11
33118-438-841 Nut, beam adj. |
33118-438-841 |
from US $2.29 |
||
|
12
|
12
33120-MAZ-003 Headlight unit |
33120-MAZ-003 |
from US $112.23 |
||
|
13
|
13
33121-MAZ-003 Stay, adjust screw |
33121-MAZ-003 |
from US $2.59 |
||
|
14
|
14
33128-MAH-671 Nut, special |
33128-MAH-671 |
from US $1.63 |
||
|
15
|
15
33136-426-830 Cover, screw |
33136-426-830 |
from US $1.92 |
||
|
16
|
16
34901-MC7-602 Bulb (12v 60/55w) |
34901-MC7-602 |
from US $45.32 |
||
|
17
|
17
61301-MEJ-651 Case, Headlight |
61301-MEJ-651 |
US $152.32 |
||
|
18
|
18
61302-KE5-000 Collar, headlight case |
61302-KE5-000 |
from US $2.37 |
||
|
19
|
19
61303-GF6-910 Nut, headlight case |
61303-GF6-910 |
from US $5.58 |
||
|
20
|
20
61304-379-690 Collar |
61304-379-690 |
from US $3.64 |
||
|
21
|
21
61310-KFK-630ZC Stay compHEADLIGHT *NH1* |
61310-KFK-630ZC |
US $88.40 |
||
|
22
|
22
90103-MY9-000 Bolt, socket (8x17) |
90103-MY9-000 |
from US $3.28 |
||
|
23
|
23
93500-050-120-G ScrewPAN, 5X12 |
93500-050-120-G |
from US $0.37 |
