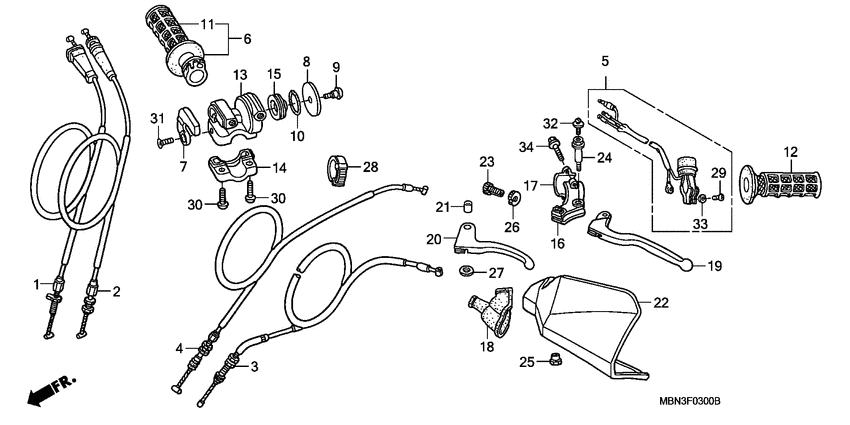

Handle lever/switch/ cable (CM) Diagram Honda XR650
- Year
- 2002
- Model code
- XR650R2
- Sales region
- Canada
- Frame
- JH2RE012*2K300001 - JH2RE012*2K399999
- Engine Capacity
- 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17920-MBN-670 Cable B, Throttle |
17920-MBN-670 |
from US $27.34 |
||
|
2
|
2
17910-MBN-670 Cable A, Throttle |
17910-MBN-670 |
from US $47.45 |
||
|
3
|
3
22870-MBN-670 Cable, clutch |
22870-MBN-670 |
from US $38.49 |
||
|
4
|
4
22890-MBN-670 Cable, decompression |
22890-MBN-670 |
from US $28.15 |
||
|
5
|
5
35130-MN1-670 Switch assy., kill |
35130-MN1-670 |
from US $44.78 |
||
|
6
|
6
53140-429-000 Grip assy., throttle |
53140-429-000 |
from US $30.87 |
||
| replacement | |||||
|
6
|
6
53140-429-010 Grip assy., throttle |
53140-429-010 |
from US $40.80 |
||
|
7
|
7
53162-MN1-670 Slider, throttle |
53162-MN1-670 |
from US $11.69 |
||
|
8
|
8
53163-MN1-670 Cvr, throttle pulley |
53163-MN1-670 |
US $11.73 |
||
|
9
|
9
53164-MN1-670 Screw |
53164-MN1-670 |
from US $4.59 |
||
|
10
|
10
53165-MN1-670 Gasket |
53165-MN1-670 |
from US $3.63 |
||
|
11
|
11
53165-430-000 Grip, r. handle |
53165-430-000 |
from US $15.16 |
||
| replacement | |||||
|
11
|
11
53165-GFW-305 Grip r,handle(coo) |
53165-GFW-305 |
from US $14.28 |
||
|
12
|
12
53166-430-000 Grip, l. handle |
53166-430-000 |
US $10.01 |
||
| replacement | |||||
|
12
|
12
53166-459-910 Grip,l.handle |
53166-459-910 |
from US $11.51 |
||
|
13
|
13
53167-MN1-670 Housing, throttle |
53167-MN1-670 |
from US $29.79 |
||
|
14
|
14
53168-MN1-670 Housing, throttle |
53168-MN1-670 |
from US $24.21 |
||
|
15
|
15
53169-MN1-670 Pulley, throttle |
53169-MN1-670 |
from US $14.65 |
||
|
16
|
16
53172-MBN-670 Bracket, l |
53172-MBN-670 |
from US $33.46 |
||
|
17
|
17
53174-KCE-670 Holder, l |
53174-KCE-670 |
from US $14.01 |
||
|
18
|
18
53177-MK5-000 Cover, l. handlebar |
53177-MK5-000 |
from US $10 |
||
|
19
|
19
53178-MAC-740 Lever, l. handlebar |
53178-MAC-740 |
from US $14.63 |
||
| replacement | |||||
|
19
|
19
53178-KSE-305 Lever, l. handlebar |
53178-KSE-305 |
US $19.31 |
||
|
20
|
20
53180-MBN-670 Lever, decompression |
53180-MBN-670 |
from US $27.34 |
||
|
21
|
21
53181-MBN-670 Collar |
53181-MBN-670 |
from US $3.70 |
||
|
22
|
22
53185-MBN-670ZB Guard, l. *r134* |
53185-MBN-670ZB |
from US $39.30 |
||
|
23
|
23
53192-KA3-700 Bolt |
53192-KA3-700 |
from US $9.95 |
||
|
24
|
24
90112-MBN-670 Bolt |
90112-MBN-670 |
from US $8.36 |
||
|
25
|
25
90312-GE2-000 Nut, fender setting |
90312-GE2-000 |
from US $4.59 |
||
|
26
|
26
90321-KA4-700
Nut, fixing
|
90321-KA4-700 |
— | ||
| replacement | |||||
|
26
|
26
90321-KF0-000 Nut, fixing |
90321-KF0-000 |
from US $11.90 |
||
|
27
|
27
90501-KV6-670 Washer, plain, 7mm |
90501-KV6-670 |
from US $1.85 |
||
|
28
|
28
90650-KW3-000 Band, wire |
90650-KW3-000 |
from US $3.03 |
||
|
29
|
29
93500-040-121-A ScrewPAN, 4X12 |
93500-040-121-A |
US $0.37 |
||
| replacement | |||||
|
29
|
29
93500-040-120-A ScrewPAN, 4X12 |
93500-040-120-A |
from US $0.37 |
||
|
30
|
30
93500-060160G Screw, pan (6x16) |
93500-060160G |
from US $0.44 |
||
|
31
|
31
93700-040101G
Screw, oval (4x10)
|
93700-040101G |
— | ||
| replacement | |||||
|
31
|
31
93700-040100G Screw, oval (4x10) |
93700-040100G |
from US $0.37 |
||
|
32
|
32
93894-040-101-0 Screw-washer4X10 |
93894-040-101-0 |
from US $0.49 |
||
|
33
|
33
94111-04000 WasherSPRING, 4MM |
94111-04000 |
from US $0.37 |
||
|
34
|
34
96001-060-200-0 BoltFLANGE, 6X20 |
96001-060-200-0 |
from US $0.59 |
||
