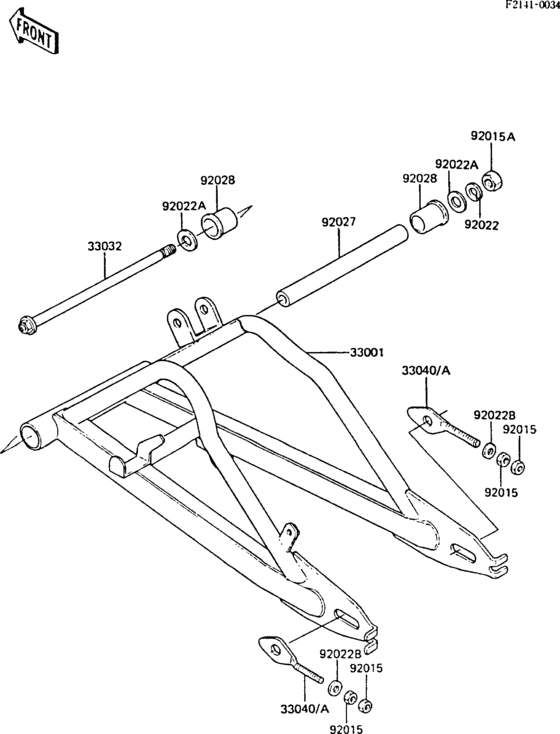

Swingarm Diagram Kawasaki AR50
- Year
- 1988
- Model code
- AR50-C6
- Engine Capacity
- 50
- Frame
- AR050C 007001 - 009200
- Model
- AR50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33001
|
33001
33001-1171-H9
Arm-comp-swing,no.1 g
|
33001-1171-H9 |
— | ||
|
33032
|
33032
33032-1018 SHAFT-SWING ARM,10X21 |
33032-1018 |
from US $32.61 |
||
|
33040
|
33040
33040008 ADJUSTER CHAIN |
33040008 |
from US $8.24 |
||
|
33040A
|
33040A
33040-1006 ADJUSTER, REAR CHANGE |
33040-1006 |
from US $7.29 |
||
|
92015
|
92015
92015-1391 NUT,6MM |
92015-1391 |
from US $2.38 |
||
|
92015A
|
92015A
92015-1416 NUT,10MM |
92015-1416 |
from US $3.33 |
||
|
92022
|
92022
92022-1540 WASHER,SPRING,10MM |
92022-1540 |
from US $2.85 |
||
|
92022A
|
92022A
92022-1558 WASHER,10.5X22X1.6 |
92022-1558 |
from US $3.17 |
||
|
92022B
|
92022B
92022-1565 WASHER,6.5X16X2 |
92022-1565 |
from US $2.53 |
||
|
92027
|
92027
92027-1309 COLLAR,12.7X17.3X132. |
92027-1309 |
from US $44.46 |
||
|
92028
|
92028
92028-1359 BUSHING,L=25 |
92028-1359 |
from US $13.62 |
