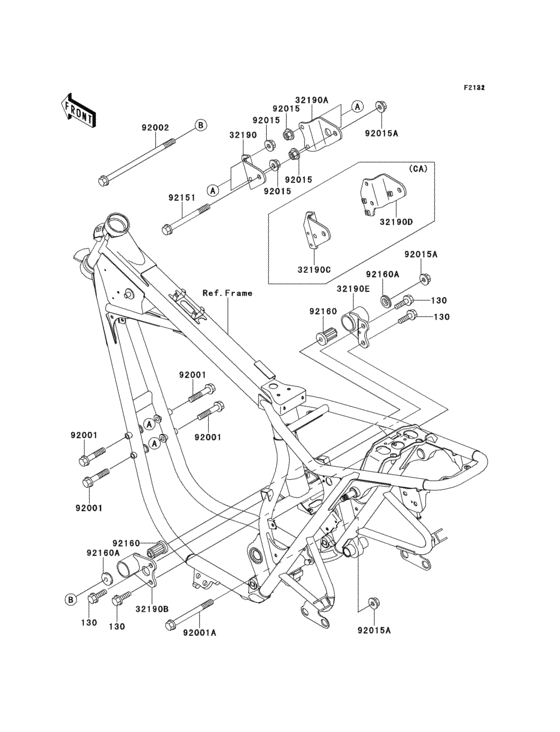

Engine mount Diagram Kawasaki EJ650 W650
- Year
- 2001
- Colour
- Pearl Boulogne / Pearl Ivory (1I)
- Model code
- EJ650-A3
- Engine Capacity
- 650
- Model
- EJ650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0816
BOLT-FLANGED
|
130J0816 |
— | ||
| replacement | |||||
|
130
|
130
130BB0816 BOLT-FLANGED |
130BB0816 |
from US $1.43 |
||
|
32190B
|
32190B
32190-1173 BRACKET-ENGINE,RR,UPP |
32190-1173 |
from US $17.90 |
||
|
32190C
|
32190C
32190-1195 BRACKET-ENGINE,FR,LH |
32190-1195 |
from US $14.80 |
||
|
32190D
|
32190D
32190-1196 BRACKET-ENGINE,FR,RH |
32190-1196 |
from US $14.80 |
||
|
32190E
|
32190E
32190-1226 BRACKET-ENGINE |
32190-1226 |
from US $19.64 |
||
|
92001
|
92001
92001-1615 BOLT,FLANGED,8X60 |
92001-1615 |
from US $4.12 |
||
|
92001A
|
92001A
92001-1953 BOLT,FLANGED,10X160,B |
92001-1953 |
from US $13.62 |
||
|
92002
|
92002
92002-1531 BOLT,FLANGED,10X230 |
92002-1531 |
from US $13.15 |
||
|
92015
|
92015
92015-1183 Nut,flanged,8mm,black |
92015-1183 |
US $3.91 |
||
| replacement | |||||
|
92015
|
92015
92210-0004 NUT,FLANGED,8MM |
92210-0004 |
from US $3.80 |
||
|
92015A
|
92015A
92015-1522 NUT,LOCK,10MM |
92015-1522 |
from US $4.28 |
||
|
92151
|
92151
92151-1783 BOLT,FLANGED,10X135 |
92151-1783 |
from US $6.18 |
||
|
92160
|
92160
92160-1483 DAMPER,ENGINE MOUNT |
92160-1483 |
from US $19.32 |
||
|
92160A
|
92160A
92160-1984 DAMPER |
92160-1984 |
from US $3.33 |
||
| replacement | |||||
|
92160A
|
92160A
92161-0598 DAMPER |
92161-0598 |
from US $2.69 |
||
