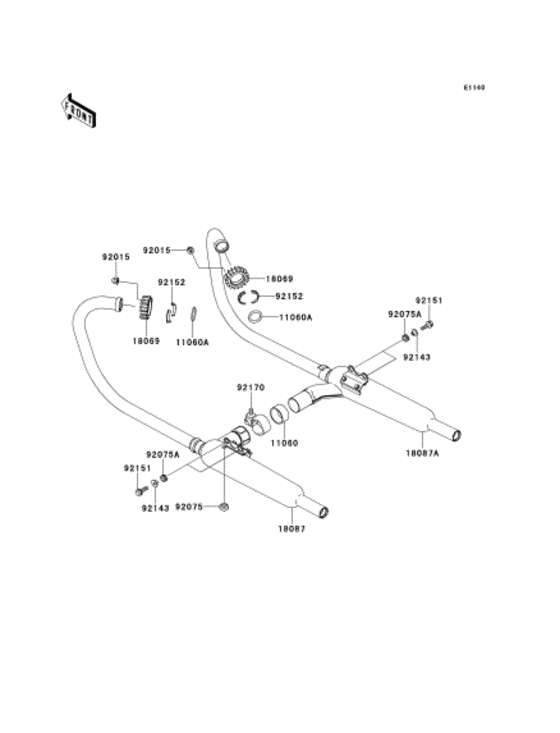

Muffler Diagram Kawasaki EJ650 W650
- Year
- 1999
- Colour
- Luminous Vintage Red / Pearl Ivory (8A)
- Model code
- EJ650-C1
- Sales region
- Japan
- Engine Capacity
- 650
- Frame
- EJ650A 000001 -
- Engine
- EJ650AE 000001 -
- Model
- EJ650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11060
|
11060
11060-1376 GASKET,MUFFLER CONNECガスケツト，マフラ コネクテイング |
11060-1376 |
from US $20.50 |
||
|
11060A
|
11060A
11060-1764 GASKET,EXHAUST PIPE Hガスケツト，エキゾ-スト パイプ ホルダ |
11060-1764 |
from US $7.44 |
||
|
18069
|
18069
18069-1150 HOLDER-EXHAUST PIPEホルダ(エキゾ-ストパイプ) |
18069-1150 |
from US $19.48 |
||
|
18087
|
18087
18087-1051
Muffler
マフラ，LH |
18087-1051 |
— | ||
| replacement | |||||
|
18087
|
18087
18087-1141
Muffler
マフラ，LH |
18087-1141 |
— | ||
|
18087A
|
18087A
18087-1052
マフラ，rh
マフラ，RH |
18087-1052 |
— | ||
| replacement | |||||
|
18087A
|
18087A
18087-1142
マフラ，rh
マフラ，RH |
18087-1142 |
— | ||
|
92015
|
92015
92015-1371 NUT,CAP,8MMナツト，キヤツプ，8MM |
92015-1371 |
from US $3.73 |
||
|
92075
|
92075
92075-1045 DAMPER,STAND STOPPERダンパ |
92075-1045 |
from US $5.70 |
||
|
92075A
|
92075A
92075-1898 DAMPER,MUFFLER FITTINダンパ |
92075-1898 |
from US $3.01 |
||
|
92143
|
92143
92143-1753 COLLARカラ- |
92143-1753 |
from US $5.23 |
||
|
92151
|
92151
92151-1477 BOLT,8X22ボルト，8X22 |
92151-1477 |
from US $1.90 |
||
| replacement | |||||
|
92151
|
92151
92151-1926 BOLT,8X22ボルト，8X22 |
92151-1926 |
from US $1.43 |
||
|
92152
|
92152
92152-1149 COLLAR,EXHAUST PIPEカラ-，エキゾ-スト パイプ |
92152-1149 |
from US $1.43 |
||
|
92170
|
92170
92170-1451 CLAMP,MUFFLER CONNECTクランプ，マフラ コネクテイング |
92170-1451 |
from US $16.95 |
||
