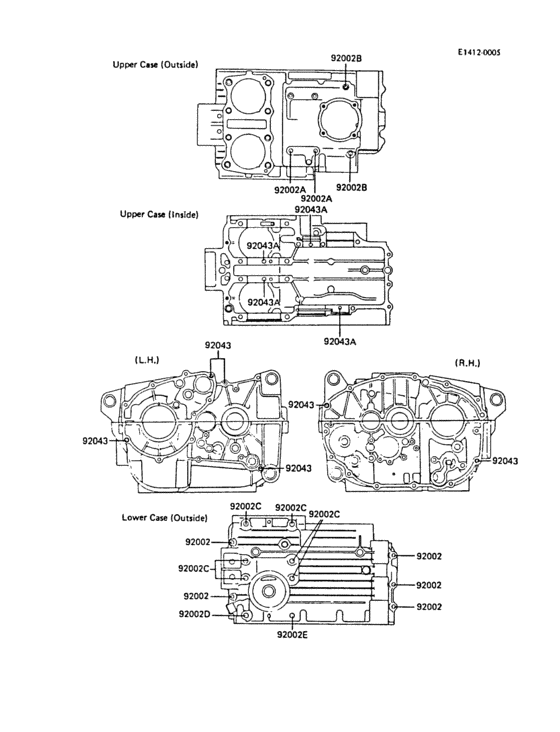

Crankcase bolt pattern Diagram Kawasaki ER250 Z250 Scorpion
- Year
- 1988
- Colour
- Candy Cardinal Red (L1)
- Model code
- ER250-B3
- Sales region
- Europe (General)
- Engine Capacity
- 250
- Model
- Z250 Scorpion
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
92002
|
92002
92002-1051
BOLT-FLANGED,6X35
|
92002-1051 |
— | ||
| replacement | |||||
|
92002
|
92002
130BB0635 BOLT-FLANGED,6X35 |
130BB0635 |
from US $1.27 |
||
|
92002A
|
92002A
92002-1054 BOLT,6X55 |
92002-1054 |
from US $3.33 |
||
|
92002B
|
92002B
92002-1055 BOLT,6X90 |
92002-1055 |
US $2.43 |
||
| replacement | |||||
|
92002B
|
92002B
92150-1312 Bolt |
92150-1312 |
from US $3.13 |
||
|
92002C
|
92002C
92002-1057 BOLT,8X90 |
92002-1057 |
US $6.49 |
||
|
92002D
|
92002D
92002-1058
Bolt,8x115
|
92002-1058 |
— | ||
|
92002E
|
92002E
92002-1059 BOLT,8X140 |
92002-1059 |
US $8.42 |
||
| replacement | |||||
|
92002E
|
92002E
92150-1164
BOLT,8X140
|
92150-1164 |
— | ||
|
92043
|
92043
92042-007 PIN-DOWEL |
92042-007 |
from US $4.44 |
||
|
92043A
|
92043A
92042-016
PIN DOWEL 6MM
|
92042-016 |
— | ||
| replacement | |||||
|
92043A
|
92043A
92043-1690 PIN,6X16 |
92043-1690 |
from US $2.85 |
||
