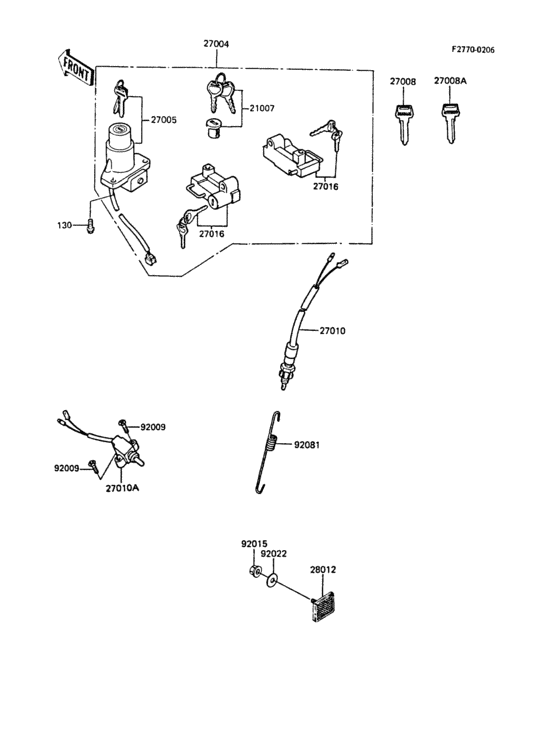

Ignition switch Diagram Kawasaki ER250 Z250 Scorpion
- Year
- 1988
- Colour
- Candy Cardinal Red (L1)
- Model code
- ER250-B3
- Sales region
- Europe (General)
- Engine Capacity
- 250
- Model
- Z250 Scorpion
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130D0614
BOLT-FLANGED,6X14
|
130D0614 |
— | ||
| replacements | |||||
|
130
|
130
130AA0614 BOLT-FLANGED |
130AA0614 |
from US $0.82 |
||
|
130
|
130
130BA0614 BOLT-FLANGED,6X14 |
130BA0614 |
from US $0.79 |
||
|
21007
|
21007
21007-5022 SWITCH-ASSY,TANK CAP |
21007-5022 |
US $61.76 |
||
| replacement | |||||
|
21007
|
21007
27045-5024 SWITCH-ASSY,TANK CAP |
27045-5024 |
from US $45.42 |
||
|
27004
|
27004
27004-5321 SWITCH-ASSY |
27004-5321 |
US $208.84 |
||
| replacement | |||||
|
27004
|
27004
27004-5491
Switch-assy
|
27004-5491 |
— | ||
|
27005
|
27005
27005-1071 SWITCH ASSY,IGNITION |
27005-1071 |
US $132.23 |
||
| replacement | |||||
|
27005
|
27005
27005-1029 SWITCH-ASSY-IGNITION |
27005-1029 |
US $171.34 |
||
|
27008
|
27008
27008-1034 KEY-LOCK,BLANK,#A |
27008-1034 |
from US $13.94 |
||
|
27008A
|
27008A
27008-1035 KEY-LOCK,BLANK |
27008-1035 |
US $15.71 |
||
| replacement | |||||
|
27008A
|
27008A
27008-1105 KEY-LOCK,BLANK |
27008-1105 |
from US $12.83 |
||
|
27010
|
27010
27010-1019
SWITCH,REAR BRAKE
|
27010-1019 |
— | ||
| replacement | |||||
|
27010
|
27010
27010-1474 SWITCH,REAR BRAKE |
27010-1474 |
from US $21.84 |
||
|
27010A
|
27010A
27010-1227
Switch
|
27010-1227 |
— | ||
|
27016
|
27016
27016-5052 LOCK-ASSY,SEAT |
27016-5052 |
US $70.67 |
||
|
28012
|
28012
28012-1055 REFLECTOR-REFLEX,RR |
28012-1055 |
US $15.80 |
||
|
92009
|
92009
92009-1459 SCREW |
92009-1459 |
from US $3.90 |
||
|
92015
|
92015
92015-1193
NUT,FLANGED,6MM
|
92015-1193 |
— | ||
| replacement | |||||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MM |
92015-1367 |
from US $3.01 |
||
|
92022
|
92022
92022-125
WASHER 6.5X20X1.6T
|
92022-125 |
— | ||
| replacement | |||||
|
92022
|
92022
92200-0283 WASHER,6.5X20X1.6 |
92200-0283 |
from US $0.72 |
||
|
92081
|
92081
27011021 BRAKE SWITCH SPRING |
27011021 |
from US $3.33 |
||
