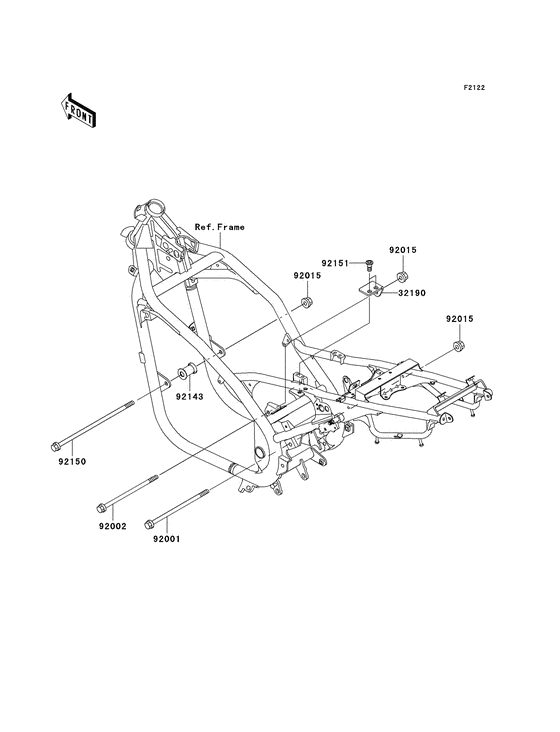

Engine mount Diagram Kawasaki ER500 ER-5
- Year
- 2002
- Model code
- ER500-C2
- Sales region
- USA
- Engine Capacity
- 500
- Model
- ER500 ER-5
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32190
|
32190
32190-1216 BRACKET-ENGINE |
32190-1216 |
from US $16.07 |
||
|
92001
|
92001
92001-1621 BOLT,FLANGED,10X180Bolt,flanged,10x180; |
92001-1621 |
from US $15.52 |
||
|
92002
|
92002
92002-1470 BOLT,FLANGED,10X170Bolt,flanged,10x170; |
92002-1470 |
from US $13.78 |
||
|
92015
|
92015
92015-1180 NUT,FLANGED,10MM,BLACNut,flanged,10mm; |
92015-1180 |
from US $2.69 |
||
|
92143
|
92143
92143-1276 COLLAR,L=34Collar,l=34; |
92143-1276 |
from US $11.25 |
||
|
92150
|
92150
92150-1742 BoltBolt,flanged,10x240; |
92150-1742 |
US $15.36 |
||
|
92151
|
92151
92151-1913 BOLT,SOCKET,8MMBolt,socket,8mm; |
92151-1913 |
from US $2.65 |
