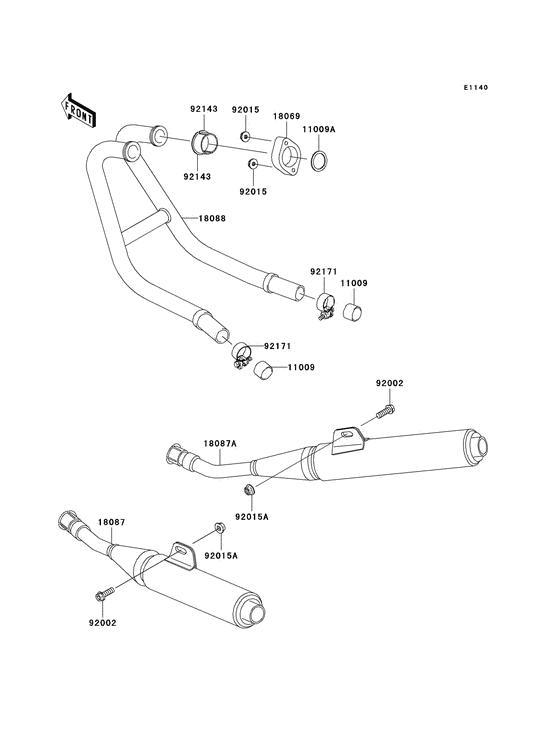

Muffler Diagram Kawasaki EX250 Ninja 250
- Year
- 2007
- Model code
- EX250F7F
- Sales region
- USA
- Engine Capacity
- 250
- Model
- EX250 Ninja 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-1865 GASKET,MUFFLER CONNECGasket,muffler connecting; |
11009-1865 |
from US $18.37 |
||
| replacement | |||||
|
11009
|
11009
11061-0360 GASKET,MUFFLER CONNECGasket,muffler connecting; |
11061-0360 |
from US $15.09 |
||
|
11009A
|
11009A
11009-1866 GASKET,EXHAUST PIPE HGasket,exhaust pipe holder; |
11009-1866 |
from US $4.91 |
||
|
18069
|
18069
18069-1075 HOLDER-EXHAUST PIPE |
18069-1075 |
US $18.72 |
||
| replacement | |||||
|
18069
|
18069
18069-1025 HOLDER-EXHAUST PIPE |
18069-1025 |
from US $16.16 |
||
|
18087
|
18087
18087-0050 MUFFLER,LHMuffler,lh; |
18087-0050 |
from US $543.15 |
||
|
18087A
|
18087A
18087-0051 MUFFLER,RHMuffler,rh; |
18087-0051 |
from US $543.15 |
||
|
18088
|
18088
18088-0157 PIPE-EXHAUST |
18088-0157 |
from US $124.26 |
||
|
92002
|
92002
92002-1787 BOLT,10X30Bolt,10x30; |
92002-1787 |
from US $3.48 |
||
|
92015
|
92015
92015-1365 NUT,6MMNut,6mm; |
92015-1365 |
from US $4.09 |
||
|
92015A
|
92015A
92015-1387 NUT,FLANGED,10MMNut,flanged,10mm; |
92015-1387 |
from US $2.69 |
||
|
92143
|
92143
92143-1006 COLLAR,EXHAUST PIPECollar,exhaust pipe; |
92143-1006 |
from US $4.44 |
||
|
92171
|
92171
92171-0062 CLAMP,CHAMBER-MUFFLERClamp,chamber-muffler; |
92171-0062 |
from US $12.12 |
||
