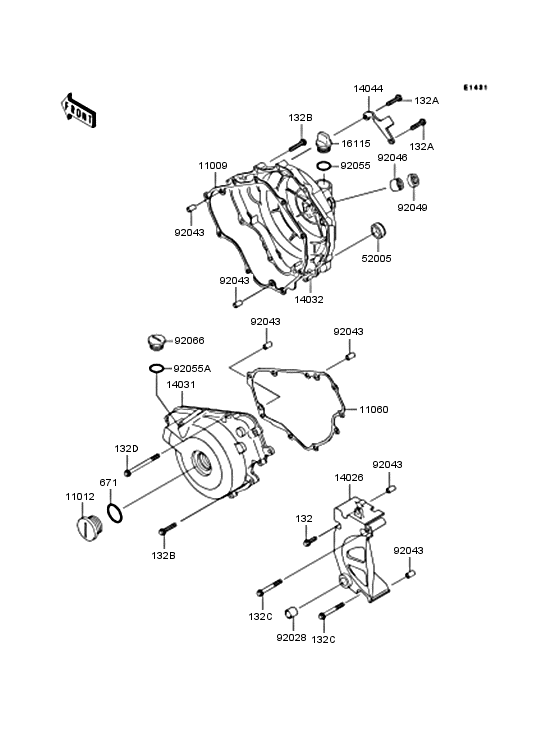

Engine cover Diagram Kawasaki EX250 ZZR250
- Year
- 2006
- Colour
- Kmt.metallic Comet Black (167)
- Model code
- EX250H6F
- Sales region
- Japan
- Engine Capacity
- 250
- Frame
- EX250H A17453 - A18401
- Engine
- EX250EE A01957 -
- Model
- EX250 ZZR250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132E0620
Bolt
ボルト(コガタツバツキ)，6X20 |
132E0620 |
— | ||
| replacement | |||||
|
132
|
132
92002-1607 Boltボルト(コガタツバツキ)，6X20 |
92002-1607 |
from US $2.85 |
||
|
132A
|
132A
132E0625 Boltボルト(コガタツバツキ)，6X25 |
132E0625 |
from US $0.63 |
||
| replacement | |||||
|
132A
|
132A
92002-1612 Boltボルト(コガタツバツキ)，6X25 |
92002-1612 |
from US $3.01 |
||
|
132B
|
132B
132E0630 BOLT-FLANGED-SMALLボルト(コガタツバツキ)，6X30 |
132E0630 |
from US $1.90 |
||
|
132C
|
132C
132E0650 BOLT,6X50ボルト(コガタツバツキ)，6X50 |
132E0650 |
from US $0.95 |
||
| replacement | |||||
|
132C
|
132C
92150-1885 BOLT,6X50ボルト(コガタツバツキ)，6X50 |
92150-1885 |
from US $2.85 |
||
|
132D
|
132D
132E0675 BOLT-FLANGED-SMALLボルト(コガタツバツキ)，6X75 |
132E0675 |
from US $1.90 |
||
|
671
|
671
671B2540 0 RING,40MMO リング(コテイヨウ)，40MM |
671B2540 |
from US $3.48 |
||
|
11009
|
11009
11009-1872 GASKET,CLUTCH COVERガスケツト，クラツチ カバ- |
11009-1872 |
from US $17.90 |
||
|
11012
|
11012
11012-1362 CAPキヤツプ |
11012-1362 |
from US $6.34 |
||
|
11060
|
11060
11060-1920 GASKET,GENERATOR COVERガスケツト，ゼネレ-タ カバ- |
11060-1920 |
from US $11.72 |
||
|
14026
|
14026
14026-0016 カバ-(チエ-ン)カバ-(チエ-ン) |
14026-0016 |
US $131.35 |
||
|
14031
|
14031
14031-1248 Cover-generatorカバ-(ゼネレ-タ) |
14031-1248 |
US $160.07 |
||
|
14032
|
14032
14032-0024 カバ-(クラツチ)カバ-(クラツチ) |
14032-0024 |
US $163.06 |
||
|
14044
|
14044
14044-1069 Holder-cableホルダ(ケ-ブル) |
14044-1069 |
US $12.51 |
||
|
16115
|
16115
16115-1068 CAP-OIL FILLERキヤツプ(オイルフイラ) |
16115-1068 |
from US $5.70 |
||
|
52005
|
52005
52005-1009 GAUGE,OIL LEVELゲ-ジ，オイル レベル |
52005-1009 |
from US $13.15 |
||
|
92028
|
92028
92028-1710 BUSHINGブツシング |
92028-1710 |
from US $5.54 |
||
|
92043
|
92043
92043-1263 PIN,6.2X8X14ピン，6.2X8X14 |
92043-1263 |
from US $0.75 |
||
|
92046
|
92046
92046-1010
BEARING-NEEDLE,HK1210
ベアリング(ニ-ドル)，HK1210 |
92046-1010 |
— | ||
| replacement | |||||
|
92046
|
92046
92046-0034 BEARING-NEEDLE,HK1210FMベアリング(ニ-ドル)，HK1210 |
92046-0034 |
from US $12.67 |
||
|
92049
|
92049
92049-1271 SEAL-OILシ-ル(オイル) |
92049-1271 |
from US $8.15 |
||
|
92055
|
92055
92055-049 O-RING,31MMリング(0)，31.7X2.4 |
92055-049 |
from US $3.37 |
||
|
92055A
|
92055A
92055-1146 RING-Oリング(0) |
92055-1146 |
from US $6.57 |
||
|
92066
|
92066
92066-1163 PLUG,COVER,LHプラグ，カバ- |
92066-1163 |
from US $9.35 |
||
