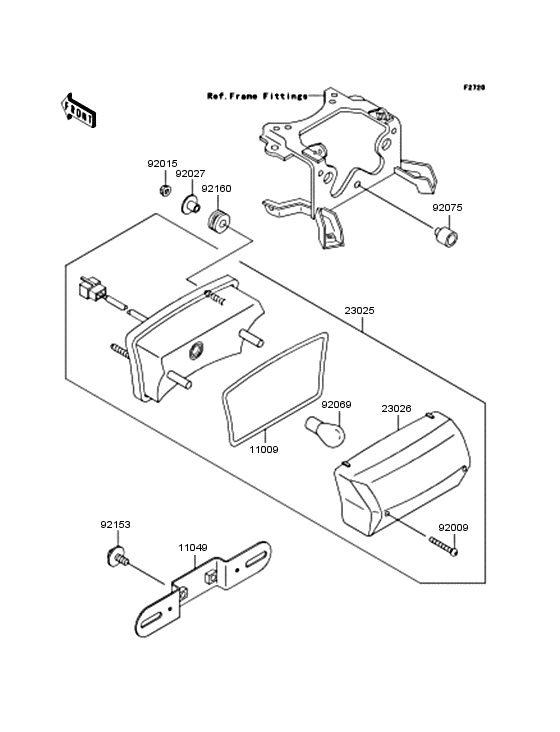

Taillight Diagram Kawasaki EX250 ZZR250
- Year
- 2006
- Colour
- Kmt.metallic Comet Black (167)
- Model code
- EX250H6F
- Sales region
- Japan
- Engine Capacity
- 250
- Frame
- EX250H A17453 - A18401
- Engine
- EX250EE A01957 -
- Model
- EX250 ZZR250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-1889 Gasket,tail lamp lensガスケツト，テ-ルランプ レンズ |
11009-1889 |
US $8.55 |
||
|
11049
|
11049
11049-1194 BRACKET,LICENSE LAMPブラケツト，ライセンス |
11049-1194 |
from US $11.65 |
||
|
23025
|
23025
23025-1208 ランプ(テ-ル)ランプ(テ-ル) |
23025-1208 |
US $131.50 |
||
|
23026
|
23026
23026-1120 Lens,tail lampレンズ，テ-ル ランプ |
23026-1120 |
US $39.20 |
||
|
92009
|
92009
92009-1506 SCREW,TAPPING,4X30スクリユ-，タツピング，4X30 |
92009-1506 |
from US $3.01 |
||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MMナツト，フランジ，6MM |
92015-1367 |
from US $3.01 |
||
|
92027
|
92027
92027-251
COLLAR
カラ-，L=13.1 |
92027-251 |
— | ||
| replacement | |||||
|
92027
|
92027
92152-0365 COLLARカラ-，L=13.1 |
92152-0365 |
from US $0.91 |
||
|
92069
|
92069
92069-1011 BULB,12V20/5Wバルブ，12V 21/5W |
92069-1011 |
from US $4.59 |
||
|
92075
|
92075
92075-035 DAMPER, RUBBERダンパ |
92075-035 |
from US $3.32 |
||
|
92153
|
92153
92153-0684 BOLT,6X16ボルト，6X16 |
92153-0684 |
from US $3.20 |
||
|
92160
|
92160
92160-1162 DAMPERダンパ |
92160-1162 |
from US $3.90 |
||
