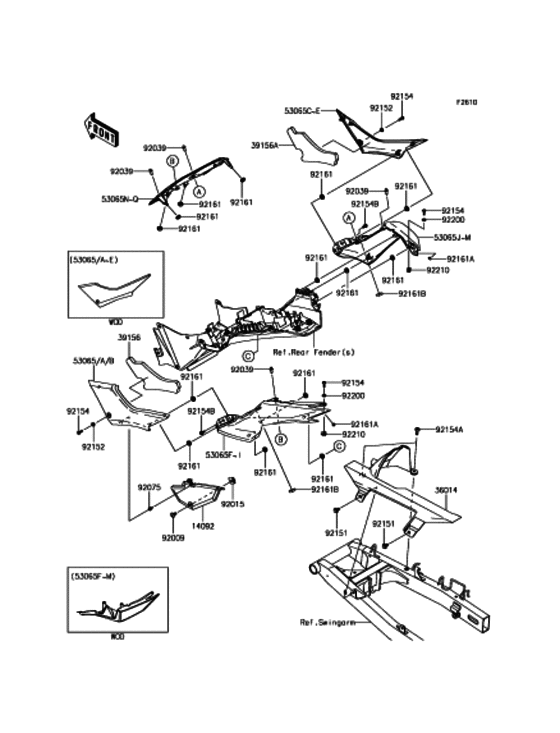

サイドカバー/チェーンカバー Diagram Kawasaki EX250 Ninja 250
- Year
- 2015
- Colour
- Lime Green (777)
- Model code
- EX250MFF
- Sales region
- Japan
- Engine Capacity
- 250
- Frame
- EX250L-011001-017000
- Engine
- EX250LE000001-
- Model
- EX250 Ninja 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14092
|
14092
14092-0954 COVER,FILTER CAPフイルタ キヤツプ |
14092-0954 |
from US $21.23 |
||
|
36014
|
36014
36014-0555 CASE-CHAINチエ-ン チエ-ン |
36014-0555 |
from US $38.30 |
||
|
39156
|
39156
39156-0986 パツドシート カバー，LH |
39156-0986 |
US $3.64 |
||
|
39156A
|
39156A
39156-0987 パツドシート カバー，RH |
39156-0987 |
US $3.64 |
||
|
53065
|
53065
53065-0029-45W シ-トカバ-，サイド，lh，グレー |
53065-0029-45W |
US $53.71 |
||
|
53065A
|
53065A
53065-0029-660 シ-トカバ-，サイド，lh，ブラツク |
53065-0029-660 |
US $53.71 |
||
|
53065B
|
53065B
53065-0029-H8 COVER SEAT,SIDE,LH,EB |
53065-0029-H8 |
from US $53.71 |
||
|
53065C
|
53065C
53065-0030-45W シ-トカバ-，サイド，rh，グレー |
53065-0030-45W |
US $53.71 |
||
|
53065D
|
53065D
53065-0030-660 シ-トカバ-，サイド，rh，ブラツク |
53065-0030-660 |
US $53.71 |
||
|
53065E
|
53065E
53065-0030-H8 COVER SEAT,SIDE,RH,EB |
53065-0030-H8 |
from US $53.71 |
||
|
53065F
|
53065F
53065-0031-660 シートカバー，テール，lh，m.s.ブラツク |
53065-0031-660 |
US $61.19 |
||
|
53065G
|
53065G
53065-0031-723 シ-トカバ-，テール，lh，ブル- |
53065-0031-723 |
US $61.19 |
||
|
53065H
|
53065H
53065-0031-777 COVER SEAT,TAIL,LH,L. |
53065-0031-777 |
from US $61.19 |
||
|
53065I
|
53065I
53065-0031-H8 COVER SEAT,TAIL,LH,EB |
53065-0031-H8 |
from US $66.12 |
||
| replacement | |||||
|
53065I
|
53065I
53065-0060-H8 COVER SEAT,TAIL,LH,EBテール，LH，エボニ |
53065-0060-H8 |
from US $61.19 |
||
|
53065J
|
53065J
53065-0032-660 シートカバー，テール，rh，m.s.ブラツク |
53065-0032-660 |
US $61.19 |
||
|
53065K
|
53065K
53065-0032-723 シ-トカバ-，テール，rh，ブル- |
53065-0032-723 |
US $61.19 |
||
|
53065L
|
53065L
53065-0032-777 COVER SEAT,TAIL,RH,L. |
53065-0032-777 |
from US $61.19 |
||
|
53065M
|
53065M
53065-0032-H8 COVER SEAT,TAIL,RH,EB |
53065-0032-H8 |
from US $66.12 |
||
| replacement | |||||
|
53065M
|
53065M
53065-0061-H8 COVER SEAT,TAIL,RH,EBテール，RH，エボニ |
53065-0061-H8 |
from US $61.19 |
||
|
53065N
|
53065N
53065-0033-45W シ-トカバ-，cnt，グレー |
53065-0033-45W |
US $33.51 |
||
|
53065O
|
53065O
53065-0033-660 シ-トカバ-，cnt，ブラツク |
53065-0033-660 |
US $33.51 |
||
|
53065P
|
53065P
53065-0033-777 COVER SEAT,CNT,L.GREE |
53065-0033-777 |
from US $33.51 |
||
|
53065Q
|
53065Q
53065-0033-H8 COVER SEAT,CNT,EBONY |
53065-0033-H8 |
from US $33.51 |
||
|
92009
|
92009
92009-1662 SCREW |
92009-1662 |
from US $2.53 |
||
|
92015
|
92015
92015-1531 NUT |
92015-1531 |
from US $3.17 |
||
| replacement | |||||
|
92015
|
92015
92015-1678 NUT |
92015-1678 |
from US $3.17 |
||
|
92039
|
92039
92039-0060 RIVET |
92039-0060 |
from US $1.77 |
||
|
92075
|
92075
92075-1808 DAMPER |
92075-1808 |
from US $1.87 |
||
|
92151
|
92151
92151-1703 BOLT,6MM |
92151-1703 |
from US $2.38 |
||
|
92152
|
92152
92152-1697 COLLAR,5.8X8.2X4.75.8X8.2X4.7 |
92152-1697 |
from US $1.27 |
||
| replacement | |||||
|
92152
|
92152
92152-2178 COLLAR,5.8X8.2X4.7 |
92152-2178 |
from US $1.43 |
||
|
92154
|
92154
92154-0182 BOLT,SOCKET,5X16 |
92154-0182 |
from US $1.11 |
||
|
92154A
|
92154A
92154-0918 BOLT,SOCKET,6X20 |
92154-0918 |
from US $3.17 |
||
|
92154B
|
92154B
92154-1003 BOLT,FLANGED,5X12フランジ，5X12 |
92154-1003 |
from US $0.48 |
||
|
92161
|
92161
92161-0631 DAMPER |
92161-0631 |
from US $3.96 |
||
|
92161A
|
92161A
92161-1459 DAMPER |
92161-1459 |
from US $0.48 |
||
|
92161B
|
92161B
92161-1522 DAMPER,15X15X515X15X5 |
92161-1522 |
from US $0.48 |
||
|
92200
|
92200
92200-1011 WASHER,NYLON,5.2X13X1 |
92200-1011 |
from US $1.90 |
||
|
92210
|
92210
92210-0817 NUT,5MM5MM |
92210-0817 |
from US $0.79 |
||
