	Description	OEM Part #	Price
120	120 120CB0512 BOLT-SOCKET,5X12 ロツカクアナ	120CB0512	from US $0.95
130	130 130BA0610 BOLT-FLANGED,6X10 ツバツキ	130BA0610	from US $0.79
221	221 221AA0620 SCREW-CNTSNK HD,6X20 +ジアナ	221AA0620	from US $1.25
461	461 461DA0600 WASHER-SPRING,6MM	461DA0600	from US $0.55
11045	11045 11045-1641 BRACKET,REAR BRAKE SW	11045-1641	from US $5.86
11065	11065 11065-0708 CAP,IGNITION SWITCH	11065-0708	from US $2.22
13272	13272 13272-1330 PLATE	13272-1330	from US $1.90
27005	27005 27005-5144 SWITCH-ASSY-IGNITION イグニシヨン	27005-5144	from US $159.72
27008	27008 27008-0053 KEY-LOCK,BLANK ロツク	27008-0053	from US $12.83
27010	27010 27010-0726 SWITCH,REAR BRAKE リヤブレーキ	27010-0726	from US $28.87
27010A	27010A 27010-1455 SWITCH,SIDE STAND	27010-1455	from US $82.13
27016	27016 27016-0075 LOCK-ASSY,SEAT STRIKE シートストライカ	27016-0075	from US $42.04
27016A	27016A 27016-5378 LOCK-ASSY	27016-5378	from US $76.89
27048	27048 27048-5075 SWITCH-ASSY	27048-5075	from US $304.92
28012	28012 28012-1077 Reflector-reflex リフレツクス	28012-1077	from US $19.66
32074	32074 32074-0018 BRACKET-LOCK ロツクロツク	32074-0018	from US $1.90
51049	51049 51049-5009 CAP-TANK,FUEL タンク	51049-5009	from US $132.70
92075	92075 92075-1808 DAMPER	92075-1808	from US $1.87
92145	92145 92145-0683 SPRING,BRAKE LAMP SWI	92145-0683	from US $1.90
92153	92153 92153-0967 BOLT,TORX,6X16	92153-0967	from US $1.11
92154	92154 92154-1040 BOLT,FLANGED,6X30 フランジ，6X30	92154-1040	from US $1.11
92172	92172 92172-0262 SCREW,TAPPING,5X10	92172-0262	from US $0.63
92210	92210 92210-0007 NUT,FLANGED,5MM	92210-0007	from US $1.61

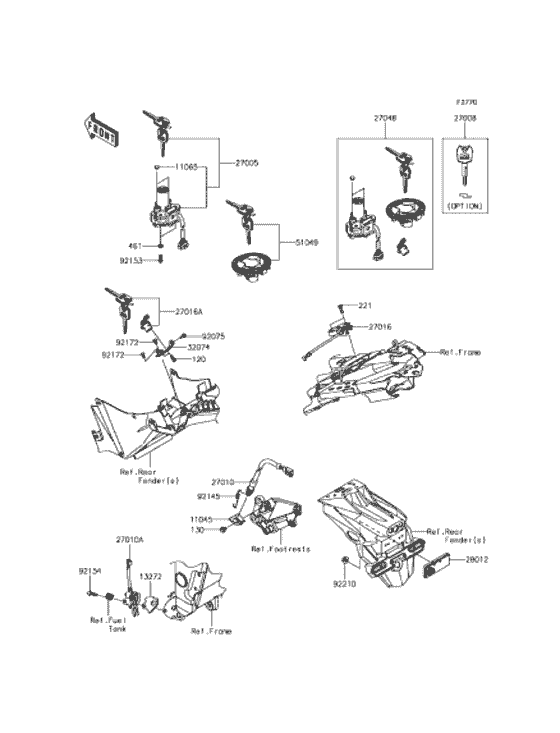

イグニッションスイッチ Diagram Kawasaki EX250 Ninja 250 Lime Green (777) Japan 15344681-830113

イグニッションスイッチ Diagram Kawasaki EX250 Ninja 250 Lime Green (777) Japan 15344681-830113
