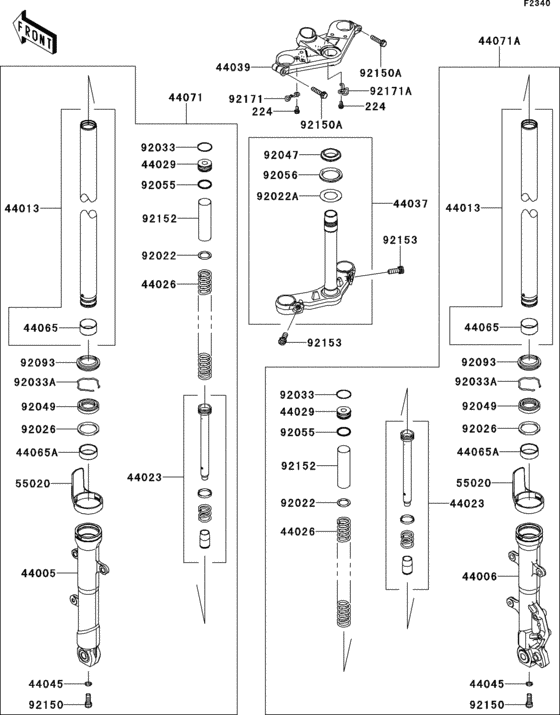

Front fork Diagram Kawasaki EX300 Ninja 300 ABS SE
- Year
- 2013
- Model code
- EX300BDFA
- Sales region
- Canada
- Engine Capacity
- 300
- Frame
- JKAEX8B1 DDA00043 - 999999
- Model
- EX300 Ninja 300 ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
224
|
224
224AB0612 SCREW-PAN-WP-CROS |
224AB0612 |
from US $1.11 |
||
|
44005
|
44005
44005-0092-18R PIPE-LEFT FORK OUTER,レフトフオ-クアウタ |
44005-0092-18R |
from US $313.63 |
||
|
44006
|
44006
44006-0093-18R PIPE-RIGHT FORK OUTERブラツク; ライトフオ-クアウタ |
44006-0093-18R |
from US $313.63 |
||
|
44013
|
44013
44013-0201 PIPE-FORK INNERフオ-クインナ |
44013-0201 |
from US $236.68 |
||
|
44023
|
44023
44023-0102 CYLINDER-SET-FORKフオ-ク |
44023-0102 |
from US $83.03 |
||
|
44026
|
44026
44026-0126 SPRING-FRONT FORK |
44026-0126 |
from US $24.68 |
||
|
44029
|
44029
44029-1127 SEAT-FORK SPRING |
44029-1127 |
from US $30.52 |
||
|
44037
|
44037
44037-0112-21 HOLDER-FORK UNDER,F.B |
44037-0112-21 |
from US $213.44 |
||
| replacement | |||||
|
44037
|
44037
44037-0154-21 HOLDER-FORK UNDER,F.B |
44037-0154-21 |
from US $187.31 |
||
|
44039
|
44039
44039-0056-18R HOLDER-FORK UPPER,BLA |
44039-0056-18R |
from US $191.66 |
||
|
44045
|
44045
44045051 GASKET,FORK CYL BOLT |
44045051 |
from US $4.59 |
||
|
44065
|
44065
44065-0057
BUSHING-FRONT FORK
|
44065-0057 |
— | ||
| replacement | |||||
|
44065
|
44065
44065-0070 Bushing-Front Fork |
44065-0070 |
from US $10.94 |
||
|
44065A
|
44065A
44065-0058 BUSHING-FRONT FORKフロントフオ-ク |
44065-0058 |
from US $15.36 |
||
|
44071
|
44071
44071-0824-18R DAMPER-ASSY,LH,F.S.BLLH，ブラツク |
44071-0824-18R |
from US $650.50 |
||
|
44071A
|
44071A
44071-0890-18R DAMPER-ASSY,RH,F.S.BLRH，ブラツク |
44071-0890-18R |
from US $650.50 |
||
|
55020
|
55020
55020-0329 GUARD,INNER TUBE |
55020-0329 |
from US $21.99 |
||
|
92022
|
92022
92022-1879 WASHER |
92022-1879 |
from US $3.01 |
||
|
92022A
|
92022A
92022-231 WASHER,PLAIN |
92022-231 |
from US $2.85 |
||
|
92026
|
92026
92026-1443 SPACER,FORK |
92026-1443 |
from US $5.54 |
||
|
92033
|
92033
92033-1236 RING-SNAP |
92033-1236 |
from US $4.75 |
||
|
92033A
|
92033A
92033-1286 RING-SNAP |
92033-1286 |
from US $5.23 |
||
|
92047
|
92047
92047-012 CONE,STEERING STEM |
92047-012 |
US $12.36 |
||
| replacement | |||||
|
92047
|
92047
92048-0033 Race,steering Stem Be |
92048-0033 |
from US $12.36 |
||
|
92049
|
92049
92049-0734 SEAL-OILオイル |
92049-0734 |
from US $12.51 |
||
|
92055
|
92055
92055-1384 RING-O,FORK SPRING SE |
92055-1384 |
from US $3.01 |
||
|
92056
|
92056
92056-003 OIL SEAL,STEERING STM |
92056-003 |
from US $5.70 |
||
|
92093
|
92093
92093-1367 SEAL,FORK OUTER |
92093-1367 |
from US $13.94 |
||
|
92150
|
92150
92150-1432 Bolt |
92150-1432 |
from US $6.34 |
||
|
92150A
|
92150A
92150-1610 Bolt |
92150-1610 |
from US $5.39 |
||
|
92152
|
92152
92152-0719 COLLAR,FORK,L=100 |
92152-0719 |
from US $11.72 |
||
|
92153
|
92153
92153-0301 BOLT,SOCKET,10X25 |
92153-0301 |
from US $1.43 |
||
|
92171
|
92171
92171-1857 CLAMP,LH |
92171-1857 |
from US $1.90 |
||
|
92171A
|
92171A
92171-1947 CLAMP,RH |
92171-1947 |
from US $1.90 |
||
