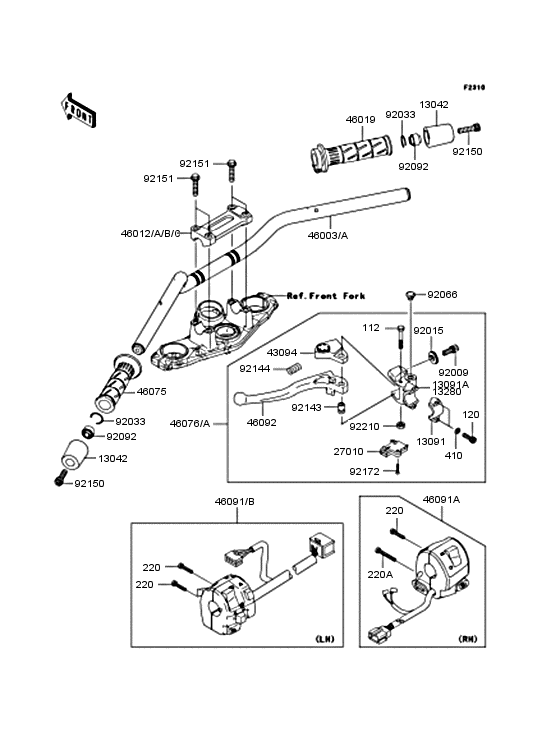

Handlebar Diagram Kawasaki EX650 ER-6F
- Year
- 2008
- Colour
- Metallic Diablo Black (17K)
- Model code
- EX650A8F
- Sales region
- Malaysia
- Engine Capacity
- 650
- Frame
- EX650A 036001 -
- Engine
- ER650AE 000001 -
- Model
- EX650 ER-6F/ Ninja 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112C0640 BOLT-UPSETBOLT-UPSET，6X40 |
112C0640 |
from US $0.95 |
||
| replacement | |||||
|
112
|
112
112BB0640 BOLT-UPSETBOLT-UPSET，6X40 |
112BB0640 |
from US $0.94 |
||
|
120
|
120
120S0620 BOLT-SOCKETBOLT-SOCKET，6X20 |
120S0620 |
from US $1.11 |
||
| replacement | |||||
|
120
|
120
120CB0620 BOLT-SOCKETBOLT-SOCKET，6X20 |
120CB0620 |
from US $1.11 |
||
|
220
|
220
220C0525
SCREW-PAN-CROS
SCREW-PAN-CROS，5X25 |
220C0525 |
— | ||
| replacement | |||||
|
220
|
220
220AB0525 SCREW-PAN-CROSSCREW-PAN-CROS，5X25 |
220AB0525 |
from US $0.95 |
||
|
220A
|
220A
220C0540 SCREW-PAN-CROSS,5X40SCREW-PAN-CROSS，5X40 |
220C0540 |
from US $1.11 |
||
| replacement | |||||
|
220A
|
220A
220AB0540 SCREW-PAN-CROSS,5X40SCREW-PAN-CROSS，5X40 |
220AB0540 |
from US $0.95 |
||
|
410
|
410
410F0600 WASHER-PLAIN-SMALL,6MWASHER-PLAIN-SMALL，6MM，BLACK |
410F0600 |
from US $0.45 |
||
| replacement | |||||
|
410
|
410
410AB0600 WASHER-PLAIN-SMALL,6MWASHER-PLAIN-SMALL，6MM，BLACK |
410AB0600 |
from US $0.79 |
||
|
13042
|
13042
13042-1006 WEIGHT,HANDLEWEIGHT，HANDLE |
13042-1006 |
from US $34.26 |
||
| replacement | |||||
|
13042
|
13042
13042-5002 WEIGHT,HANDLEWEIGHT，HANDLE |
13042-5002 |
from US $31.72 |
||
|
13091
|
13091
13091-1624 HOLDER,CLUTCH LEVERHOLDER，CLUTCH LEVER |
13091-1624 |
from US $24.24 |
||
|
13091A
|
13091A
13091-1652 HOLDER,CLUTCH LEVERHOLDER，CLUTCH LEVER |
13091-1652 |
from US $38.30 |
||
| replacement | |||||
|
13091A
|
13091A
13280-0248 HOLDER,CLUTCH LEVERHOLDER，CLUTCH LEVER |
13280-0248 |
from US $32.31 |
||
|
13280
|
13280
13280-0248 HOLDER,CLUTCH LEVERHOLDER，CLUTCH LEVER |
13280-0248 |
from US $32.31 |
||
|
27010
|
27010
27010-1094 SWITCH,CLUTCHSWITCH，CLUTCH，BLACK |
27010-1094 |
from US $21.07 |
||
|
43094
|
43094
43094-1053 ADJUSTER,CLUTCH LEVERADJUSTER，CLUTCH LEVER |
43094-1053 |
from US $24.38 |
||
|
46003
|
46003
46003-0093-458 HANDLE,P.SILVERHANDLE，P.SILVER |
46003-0093-458 |
from US $135.29 |
||
|
46003A
|
46003A
46003-0093-718 HANDLE,BLACKHANDLE，BLACK |
46003-0093-718 |
from US $135.29 |
||
|
46012
|
46012
46012-0010-11E ホルダ(ハンドル)，upp，ブラツクHOLDER-HANDLE，UPP，F.S.BLACK |
46012-0010-11E |
US $24.17 |
||
|
46012A
|
46012A
46012-0010-458 HOLDER-HANDLE,UPP,P.SHOLDER-HANDLE，UPP，P.SILVER |
46012-0010-458 |
from US $43.68 |
||
|
46012B
|
46012B
46012-0047-18R HOLDER-HANDLE,UPP,BLAHOLDER-HANDLE，UPP，BLACK |
46012-0047-18R |
from US $26.11 |
||
|
46012C
|
46012C
46012-0047-458 HOLDER-HANDLE,UPP,P.SHOLDER-HANDLE，UPP，P.SILVER |
46012-0047-458 |
from US $26.11 |
||
|
46019
|
46019
46019-0001 GRIP-ASSY,THROTTLEGRIP-ASSY，THROTTLE |
46019-0001 |
from US $30.75 |
||
|
46075
|
46075
46075-1144 GRIP,LHGRIP，LH |
46075-1144 |
from US $18.40 |
||
|
46076
|
46076
46076-0045 LEVER-ASSY-GRIP,CLUTCLEVER-ASSY-GRIP，CLUTCH |
46076-0045 |
from US $116.24 |
||
|
46076A
|
46076A
46076-1180 LEVER-ASSY-GRIP,CLUTCLEVER-ASSY-GRIP，CLUTCH |
46076-1180 |
from US $111.42 |
||
| replacement | |||||
|
46076A
|
46076A
46076-0045 LEVER-ASSY-GRIP,CLUTCLEVER-ASSY-GRIP，CLUTCH |
46076-0045 |
from US $116.24 |
||
|
46091
|
46091
46091-0086 Housing-assy-control，lhHOUSING-ASSY-CONTROL，LH |
46091-0086 |
US $130.71 |
||
| replacement | |||||
|
46091
|
46091
46091-0118 HOUSING-ASSY-CONTROL,HOUSING-ASSY-CONTROL，LH |
46091-0118 |
from US $108.91 |
||
|
46091A
|
46091A
46091-0092
HOUSING-ASSY-CONTROL,
HOUSING-ASSY-CONTROL，RH |
46091-0092 |
— | ||
|
46091B
|
46091B
46091-0118 HOUSING-ASSY-CONTROL,HOUSING-ASSY-CONTROL，LH |
46091-0118 |
from US $108.91 |
||
|
46092
|
46092
46092-1162 LEVER-GRIP,CLUTCHLEVER-GRIP，CLUTCH |
46092-1162 |
from US $18.14 |
||
|
92009
|
92009
92009-1134 SCREW,CABLE ADJUST,8SCREW，CABLE ADJUST，8MM，BLACK |
92009-1134 |
from US $9.19 |
||
|
92015
|
92015
92015-1197 NUT,CABLE ADJUST LOCKNUT，CABLE ADJUST LOCK，8MM，BLK |
92015-1197 |
from US $6.34 |
||
|
92033
|
92033
92033-1102 RING-SNAP,OD=22.2RING-SNAP，OD=22.2 |
92033-1102 |
US $2.53 |
||
| replacements | |||||
|
92033
|
92033
13042-5001 WEIGHT,HANDLERING-SNAP，OD=22.2 |
13042-5001 |
from US $31.72 |
||
|
92033
|
92033
13042-5002 WEIGHT,HANDLERING-SNAP，OD=22.2 |
13042-5002 |
from US $31.72 |
||
|
92033
|
92033
13042-5003 WEIGHT,HANDLERING-SNAP，OD=22.2 |
13042-5003 |
from US $32.34 |
||
|
92066
|
92066
92066-1077 PLUG,9.5X8PLUG，9.5X8，POLYETHYLENE |
92066-1077 |
from US $3.01 |
||
|
92092
|
92092
92092-1018 BUSHING-RUBBER,HANDLEBUSHING-RUBBER，HANDLE |
92092-1018 |
from US $9.35 |
||
| replacements | |||||
|
92092
|
92092
13042-5002 WEIGHT,HANDLEBUSHING-RUBBER，HANDLE |
13042-5002 |
from US $31.72 |
||
|
92092
|
92092
13042-5003 WEIGHT,HANDLEBUSHING-RUBBER，HANDLE |
13042-5003 |
from US $32.34 |
||
|
92143
|
92143
92143-1379 COLLARCOLLAR |
92143-1379 |
from US $6.34 |
||
|
92144
|
92144
92144-1467 SPRINGSPRING |
92144-1467 |
from US $3.96 |
||
|
92150
|
92150
92150-1604 BOLT,SOCKET,8X30BOLT，SOCKET，8X30 |
92150-1604 |
from US $3.48 |
||
|
92151
|
92151
92151-1537 BOLT,FLANGED,8X35BOLT，FLANGED，8X35 |
92151-1537 |
from US $1.74 |
||
|
92172
|
92172
92172-0183 SCREW,3X16SCREW，3X16 |
92172-0183 |
from US $0.95 |
||
|
92210
|
92210
92210-0006 NUT,LOCK,6MMNUT，LOCK，6MM |
92210-0006 |
from US $1.27 |
||
