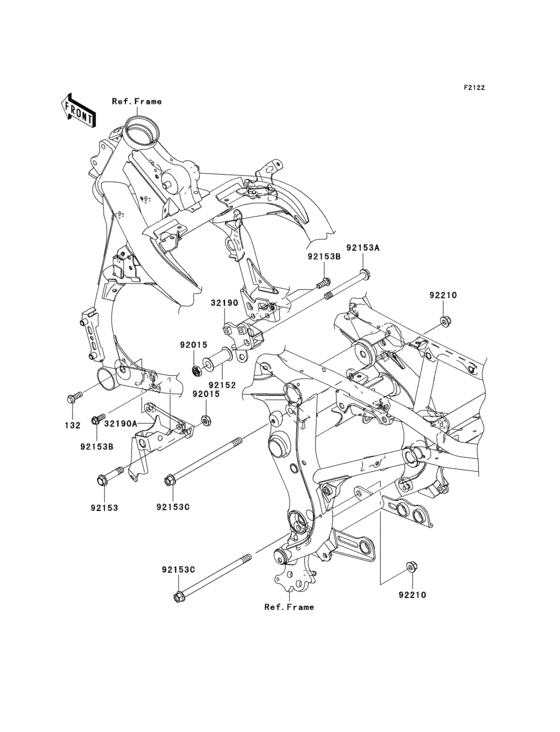

Engine mount Diagram Kawasaki EX650 Ninja 650
- Year
- 2008
- Colour
- Lime Green (777)
- Model code
- EX650A8F
- Sales region
- Europe (General)
- Engine Capacity
- 650
- Model
- EX650 ER-6F/ Ninja 650
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132L0822 BOLT-FLANGED-SMALL,8X |
132L0822 |
from US $1.27 |
||
| replacement | |||||
|
132
|
132
132BB0822 BOLT-FLANGED-SMALL,8X |
132BB0822 |
from US $0.95 |
||
|
32190
|
32190
32190-0255 BRACKET-ENGINE,RH |
32190-0255 |
from US $41.14 |
||
|
32190A
|
32190A
32190-0257 BRACKET-ENGINE,LH |
32190-0257 |
US $54.64 |
||
|
92015
|
92015
92015-1188 NUT,LOCK,10MM,BLACK |
92015-1188 |
from US $4.25 |
||
|
92152
|
92152
92152-0311 COLLAR,ENGINE MOUNT |
92152-0311 |
from US $6.81 |
||
|
92153
|
92153
92153-0823 BOLT,FLANGED,10X47 |
92153-0823 |
from US $3.48 |
||
|
92153A
|
92153A
92153-0976 BOLT,FLANGED,10X95 |
92153-0976 |
from US $6.49 |
||
|
92153B
|
92153B
92153-0995 BOLT,FLANGED,8X20 |
92153-0995 |
from US $2.53 |
||
|
92153C
|
92153C
92153-1428 BOLT,FLANGED,10X170 |
92153-1428 |
from US $7.29 |
||
|
92210
|
92210
92210-1081 NUT |
92210-1081 |
from US $9.20 |
||
