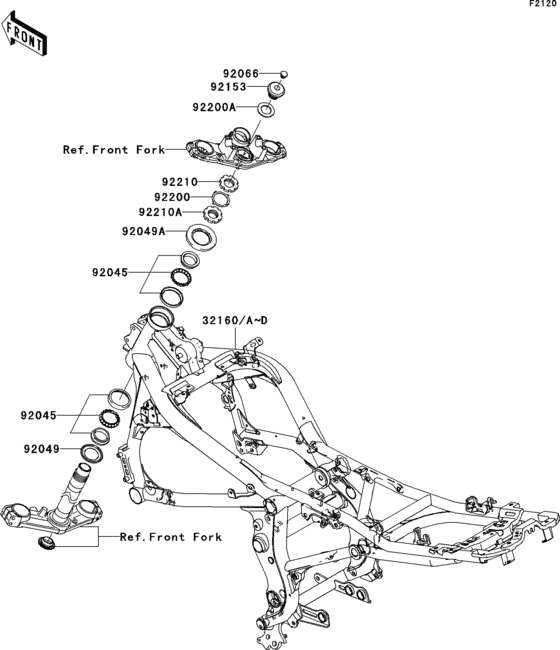

Frame Diagram Kawasaki EX650 Ninja 650
- Year
- 2008
- Model code
- EX650A8F
- Sales region
- Canada
- Engine Capacity
- 650
- Frame
- JKAEXEA1 8A036001 - 999999
- Model
- EX650 ER-6F/ Ninja 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32160C
|
32160C
32160-0270-18R FRAME-COMP,BLACK |
32160-0270-18R |
from US $2,127.29 |
||
|
32160D
|
32160D
32160-0270-458 FRAME-COMP,P.SILVER |
32160-0270-458 |
from US $2,065.32 |
||
|
92045
|
92045
92045-1384 BEARING-BALL,SF07A17P |
92045-1384 |
from US $35.16 |
||
|
92049
|
92049
92049-0022 SEAL-OIL,DS35X55X4 |
92049-0022 |
from US $9.98 |
||
|
92049A
|
92049A
92049-1483 SEAL-OIL,MX043N2 |
92049-1483 |
from US $15.05 |
||
|
92066
|
92066
92066-0071 PLUG |
92066-0071 |
from US $1.58 |
||
|
92153
|
92153
92153-0474 BOLT,26MM |
92153-0474 |
from US $16.32 |
||
| replacement | |||||
|
92153
|
92153
92154-3818 Bolt,26Mm |
92154-3818 |
from US $16.32 |
||
|
92200
|
92200
92200-0036 WASHER |
92200-0036 |
from US $3.37 |
||
|
92200A
|
92200A
92200-0081 WASHER,27X42X2.3 |
92200-0081 |
from US $1.74 |
||
|
92210
|
92210
92210-0062 NUT,STEERING STEM 35M |
92210-0062 |
from US $19.64 |
||
|
92210A
|
92210A
92210-0077 NUT,STEERING STEM,35M |
92210-0077 |
from US $11.25 |
||
