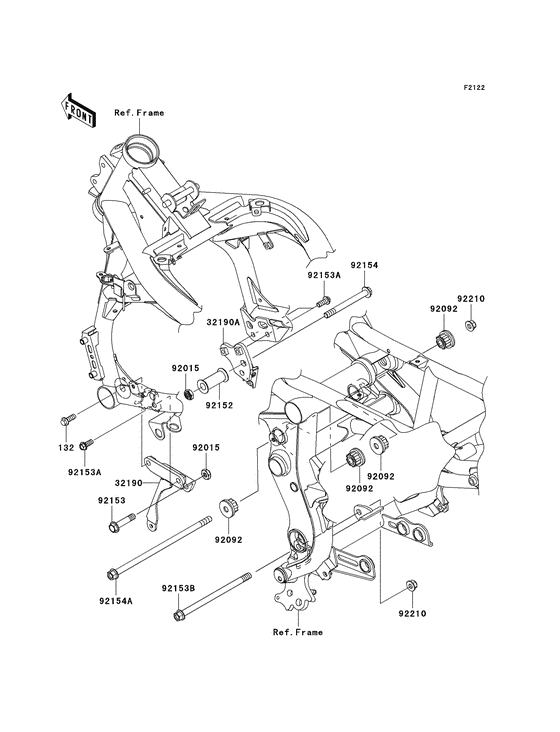

Engine mount Diagram Kawasaki EX650 Ninja 650
- Year
- 2009
- Model code
- EX650C9F
- Sales region
- USA
- Engine Capacity
- 650
- Model
- EX650 ER-6F/ Ninja 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132BB0822 BOLT-FLANGED-SMALL,8XBolt-flanged-small,8x22; |
132BB0822 |
from US $0.95 |
||
|
32190
|
32190
32190-0401 BRACKET-ENGINE,LHBracket-engine,lh; |
32190-0401 |
from US $32.61 |
||
|
32190A
|
32190A
32190-0402 BRACKET-ENGINE,RHBracket-engine,rh; |
32190-0402 |
from US $27.38 |
||
|
92015
|
92015
92015-1188 NUT,LOCK,10MM,BLACKNut,lock,10mm,black; |
92015-1188 |
from US $4.25 |
||
|
92092
|
92092
92092-0021 BUSHING-RUBBER |
92092-0021 |
from US $7.44 |
||
|
92152
|
92152
92152-0740 COLLAR,11X26X50.8Collar,11x26x50.8; |
92152-0740 |
from US $8.08 |
||
|
92153
|
92153
92153-0823 BOLT,FLANGED,10X47Bolt,flanged,10x47; |
92153-0823 |
from US $3.48 |
||
|
92153A
|
92153A
92153-0995 BOLT,FLANGED,8X20Bolt,flanged,8x20; |
92153-0995 |
from US $2.53 |
||
|
92153B
|
92153B
92153-1428 BOLT,FLANGED,10X170Bolt,flanged,10x170; |
92153-1428 |
from US $7.29 |
||
|
92154
|
92154
92154-0083 BOLT,FLANGED,10X100Bolt,flanged,10x100; |
92154-0083 |
from US $6.81 |
||
|
92154A
|
92154A
92154-0138 BOLT,FLANGED,10X237Bolt,flanged,10x237; |
92154-0138 |
from US $16.47 |
||
|
92210
|
92210
92210-1081 NUTNut,lock,flanged,10mm; |
92210-1081 |
from US $9.20 |
