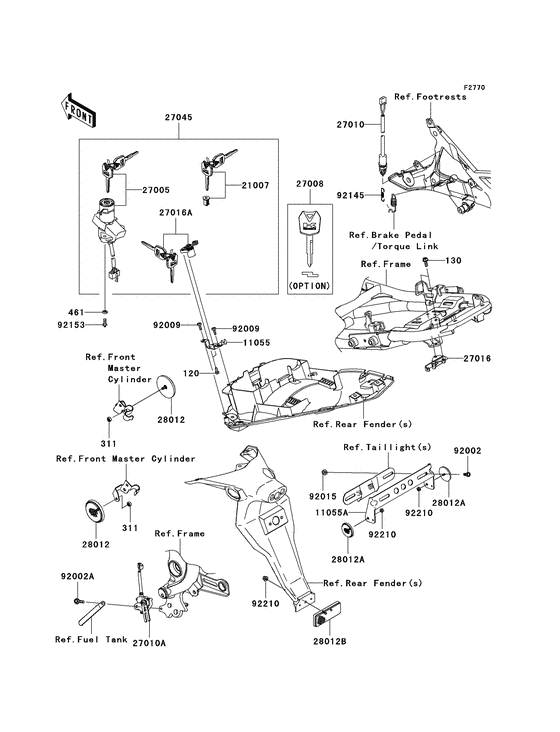

Ignition switch/locks/reflectors Diagram Kawasaki EX650 Ninja 650
- Year
- 2009
- Model code
- EX650C9F
- Sales region
- USA
- Engine Capacity
- 650
- Model
- EX650 ER-6F/ Ninja 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CB0512 BOLT-SOCKET,5X12Bolt-socket,5x12; |
120CB0512 |
from US $0.95 |
||
|
130
|
130
130BA0612 BOLT-FLANGED,6X12Bolt-flanged,6x12; |
130BA0612 |
from US $0.79 |
||
|
311
|
311
311AB0500 NUT-HEX |
311AB0500 |
from US $0.75 |
||
|
461
|
461
461DA0600 WASHER-SPRING,6MMWasher-spring,6mm; |
461DA0600 |
from US $0.55 |
||
|
11055
|
11055
11055-0590 BRACKET,SEAT LOCKBracket,seat lock; |
11055-0590 |
from US $6.18 |
||
|
11055A
|
11055A
11055-1092 BRACKET,REFLECTORBracket,reflector; |
11055-1092 |
from US $24.09 |
||
|
21007
|
21007
21007-5057 ROTOR,LOCK,TANK CAPRotor,lock,tank cap; |
21007-5057 |
from US $56.40 |
||
|
27005
|
27005
27005-5141 SWITCH-ASSY-IGNITION |
27005-5141 |
from US $184.40 |
||
|
27008
|
27008
27008-0030 KEY-LOCK,BLANKKey-lock,blank; (option) |
27008-0030 |
from US $12.83 |
||
| replacement | |||||
|
27008
|
27008
27008-0618 KEY-LOCK,BLANKKey-lock,blank; (option) |
27008-0618 |
from US $12.83 |
||
|
27010
|
27010
27010-0095 SWITCH,REAR BRAKESwitch,rear brake; |
27010-0095 |
from US $19.01 |
||
|
27010A
|
27010A
27010-0097 SWITCH,SIDE STANDSwitch,side stand; |
27010-0097 |
from US $82.13 |
||
|
27016
|
27016
27016-1115 LOCK-ASSY,SEAT STRIKELock-assy,seat striker; |
27016-1115 |
from US $22.44 |
||
|
27016A
|
27016A
27016-5309 LOCK-ASSY,SEATLock-assy,seat; |
27016-5309 |
from US $66.27 |
||
|
27045
|
27045
27045-5360 SWITCH-ASSY |
27045-5360 |
from US $320.89 |
||
|
28012
|
28012
28012-0001 REFLECTOR-REFLEX,FR,SReflector-reflex,fr,side; |
28012-0001 |
from US $16.32 |
||
|
28012A
|
28012A
28012-0002 Reflector-reflex |
28012-0002 |
from US $16.32 |
||
|
28012B
|
28012B
28012-1077 Reflector-reflex |
28012-1077 |
from US $19.66 |
||
|
92002
|
92002
92002-1132 BOLT-UPSETBolt,6x12; |
92002-1132 |
from US $0.95 |
||
| replacement | |||||
|
92002
|
92002
112BA0612 BOLT-UP SETBolt,6x12; |
112BA0612 |
from US $1.25 |
||
|
92002A
|
92002A
92002-1582 BOLT,6X25Bolt,flanged,6x25; |
92002-1582 |
from US $2.85 |
||
|
92009
|
92009
92009-3845 SCREW,6X14Screw,6x14; |
92009-3845 |
from US $0.79 |
||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MMNut,flanged,6mm; |
92015-1367 |
from US $3.01 |
||
|
92145
|
92145
92145-0724 SPRING,REAR BRAKE SWISpring,rear brake switch; |
92145-0724 |
from US $1.90 |
||
| replacement | |||||
|
92145
|
92145
92145-0091 SPRING,REAR BRAKE SWISpring,rear brake switch; |
92145-0091 |
from US $1.90 |
||
|
92153
|
92153
92153-0967 BOLT,TORX,6X16Bolt,torx,6x16; |
92153-0967 |
from US $1.11 |
||
|
92210
|
92210
92210-0007 NUT,FLANGED,5MMNut,flanged,5mm; |
92210-0007 |
from US $1.61 |
||
