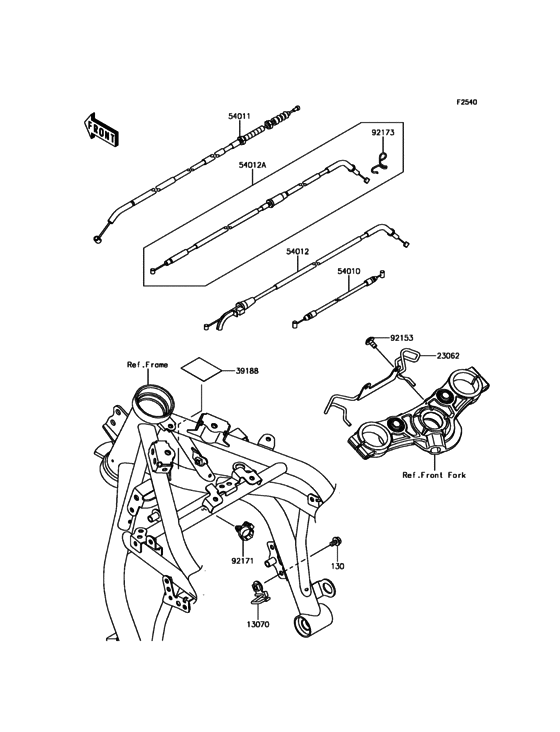

Cables Diagram Kawasaki EX650 Ninja 650 ABS KRT Edition
- Year
- 2017
- Model code
- EX650KHFA
- Sales region
- Europe (General)
- Engine Capacity
- 650
- Model
- EX650 ER-6F/ Ninja 650
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0610 BOLT-FLANGED,6X10 |
130BA0610 |
from US $0.79 |
||
|
13070
|
13070
13070-0841 GUIDE,CLUTCH CABLE |
13070-0841 |
from US $3.64 |
||
|
23062
|
23062
23062-0926 BRACKET-COMP,GUIDE |
23062-0926 |
from US $9.98 |
||
|
39188
|
39188
39188-0049 TAPE,40X50 |
39188-0049 |
from US $1.74 |
||
|
54010
|
54010
54010-0612 CABLE,SEAT LOCK |
54010-0612 |
from US $11.40 |
||
|
54011
|
54011
54011-0623 Cable-Сlutch |
54011-0623 |
from US $31.42 |
||
|
54012
|
54012
54012-0654 CABLE-THROTTLE,OPENIN |
54012-0654 |
from US $20.79 |
||
|
54012A
|
54012A
54012-0655 CABLE-THROTTLE,CLOSIN |
54012-0655 |
from US $20.79 |
||
|
92153
|
92153
92153-1948 BOLT,SOCKET,6X12 |
92153-1948 |
from US $0.79 |
||
|
92171
|
92171
92171-0316 CLAMP,BRAKE HOSE |
92171-0316 |
from US $2.69 |
||
|
92173
|
92173
92173-0727 CLAMP,THROTTLE CABLE |
92173-0727 |
from US $3.48 |
