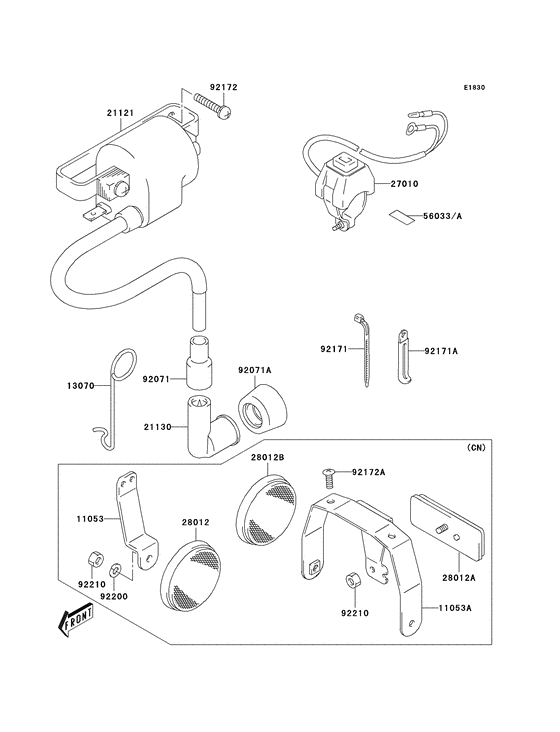

Ignition System Diagram Kawasaki KDX50
- Year
- 2006
- Model code
- KDX50A6F
- Sales region
- USA
- Engine Capacity
- 50
- Model
- KDX50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11053
|
11053
11053-S027
Bracket
Bracket,rr; |
11053-S027 |
— | ||
|
11053A
|
11053A
11053-S028
Bracket
Bracket,rr; |
11053-S028 |
— | ||
|
13070
|
13070
13070-S015 GUIDE,HIGHTENSION CORGuide,hightension cord; |
13070-S015 |
US $2.38 |
||
|
21121
|
21121
21121-S004 COIL-IGNITION |
21121-S004 |
US $205.75 |
||
|
21130
|
21130
21130-S007 Cap-spark plug |
21130-S007 |
US $23 |
||
|
27010
|
27010
27010-S027 SWITCH,ENGINE STOPSwitch,engine stop; |
27010-S027 |
US $45.81 |
||
|
28012
|
28012
28012-S001 REFLECTOR-REFLEX,FR SReflector-reflex,fr; |
28012-S001 |
US $14.35 |
||
|
28012A
|
28012A
28012-S003 REFLECTOR-REFLEX,RRReflector-reflex,rr; |
28012-S003 |
from US $12.83 |
||
| replacement | |||||
|
28012A
|
28012A
28012-S007 REFLECTOR-REFLEX,RRReflector-reflex,rr; |
28012-S007 |
from US $11.82 |
||
|
28012B
|
28012B
28012-S004
Reflector-reflex,rear
Reflector-reflex,rear side; |
28012-S004 |
— | ||
|
56033
|
56033
56033-S014 LABEL-MANUAL,ENGINE SLabel-manual,engine stop; |
56033-S014 |
US $2.29 |
||
|
56033A
|
56033A
56033-S016
Label-manual,engine stop
Label-manual,engine stop; |
56033-S016 |
— | ||
|
92071
|
92071
92071-S004 GROMMET,HIGH TENSIONGrommet,hightension; |
92071-S004 |
from US $2.22 |
||
|
92071A
|
92071A
92071-S008 GROMMET,SPARK PLUGGrommet,spark plug; |
92071-S008 |
US $4 |
||
|
92171
|
92171
92171-S016 CLAMP,L:165Clamp,l=165; |
92171-S016 |
from US $1.44 |
||
| replacement | |||||
|
92171
|
92171
92171-S017 ClampClamp,l=165; |
92171-S017 |
from US $3.01 |
||
|
92171A
|
92171A
92171-S132 CLAMP,OIL HOSE NO.2Clamp,l=45; |
92171-S132 |
from US $2.22 |
||
|
92172
|
92172
92172-S187 SCREW,IGNITION COILScrew,ignition coil; |
92172-S187 |
US $1.49 |
||
|
92172A
|
92172A
92172-S193
Screw
|
92172-S193 |
— | ||
|
92200
|
92200
92200-S168 WASHERWasher,brake lever; |
92200-S168 |
US $1.24 |
||
| replacement | |||||
|
92200
|
92200
92200-S299 WASHERWasher,brake lever; |
92200-S299 |
US $1.21 |
||
|
92210
|
92210
92210-S065 NUT |
92210-S065 |
US $1.21 |
||
| replacement | |||||
|
92210
|
92210
92210-S205 NUT |
92210-S205 |
US $2.48 |
||
