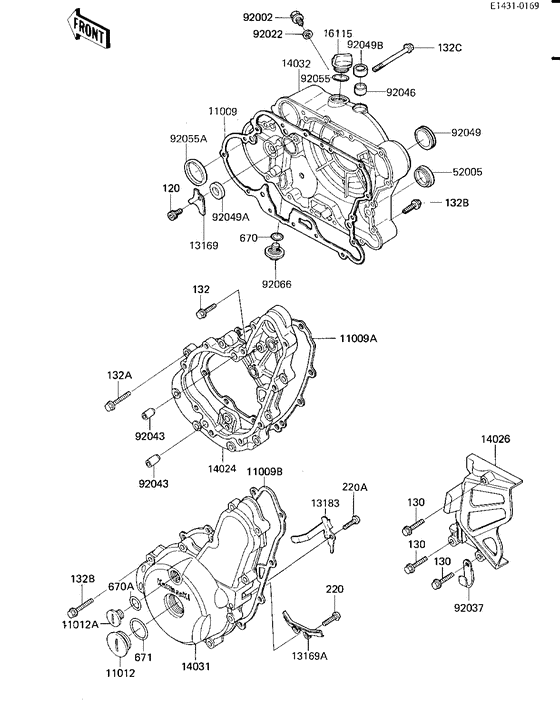

Engine covers Diagram Kawasaki KL600 KLR600
- Year
- 1986
- Model code
- KL600-B2
- Sales region
- USA
- Engine Capacity
- 600
- Model
- KL600B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120P0610 BOLT-SOCKET,6X10Bolt-socket,6x10; |
120P0610 |
from US $1.43 |
||
| replacement | |||||
|
120
|
120
120CA0610 BOLT-SOCKET,6X10Bolt-socket,6x10; |
120CA0610 |
from US $1.07 |
||
|
130
|
130
130J0625
BOLT-FLANGED,6X25
Bolt-flanged,6x25; |
130J0625 |
— | ||
| replacement | |||||
|
130
|
130
130BB0625 BOLT-FLANGED,6X25Bolt-flanged,6x25; |
130BB0625 |
from US $1.61 |
||
|
132
|
132
132J0620
BOLT,6X20
|
132J0620 |
— | ||
| replacement | |||||
|
132
|
132
132BB0620 BOLT,6X20 |
132BB0620 |
from US $2.38 |
||
|
132A
|
132A
132J0625
BOLT-FLANGED-SMALL,6X
|
132J0625 |
— | ||
| replacement | |||||
|
132A
|
132A
132BB0625 BOLT-FLANGED-SMALL,6X |
132BB0625 |
from US $1.27 |
||
|
132B
|
132B
132J0630
BOLT,6X30
|
132J0630 |
— | ||
| replacement | |||||
|
132B
|
132B
132BB0630 BOLT,6X30 |
132BB0630 |
from US $2.69 |
||
|
132C
|
132C
132J0680 BOLT,6X80 |
132J0680 |
US $46.10 |
||
| replacement | |||||
|
132C
|
132C
132BB0680 BOLT,6X80 |
132BB0680 |
from US $3.48 |
||
|
220
|
220
220B0510
SCREW-PAN-CROSS,5X10
Screw pan head 5x10; |
220B0510 |
— | ||
| replacement | |||||
|
220
|
220
220AA0510 SCREW-PAN-CROSS,5X10Screw pan head 5x10; |
220AA0510 |
from US $0.48 |
||
|
220A
|
220A
220B0612 Screw-pan head,6x12Screw pan head 6x12; |
220B0612 |
US $1.11 |
||
| replacements | |||||
|
220A
|
220A
220AA0612 SCREW-PAN-CROSS,6X12Screw pan head 6x12; |
220AA0612 |
from US $0.91 |
||
|
220A
|
220A
214B0612
Screw-pan+-
Screw pan head 6x12; |
214B0612 |
— | ||
|
670
|
670
670B2011 O RING"o" ring; |
670B2011 |
from US $1.75 |
||
|
670A
|
670A
670B2018 0 RING,18MM"0" ring,18mm; |
670B2018 |
from US $3.20 |
||
|
671
|
671
671B2540 0 RING,40MM"0" ring,40mm; |
671B2540 |
from US $3.48 |
||
|
11009
|
11009
11060-1111 CLUTCH COVER GASKETGasket,clutch cover; |
11060-1111 |
from US $28.91 |
||
|
11009A
|
11009A
11060-1112 GASKET,GENERATOR CASEGasket,generator case; |
11060-1112 |
US $23.53 |
||
| replacements | |||||
|
11009A
|
11009A
11060-1692
GASKET,GENERATOR CASE
Gasket,generator case; |
11060-1692 |
— | ||
|
11009A
|
11009A
11061-1486 GASKET,GENERATOR CASEGasket,generator case; |
11061-1486 |
from US $24.15 |
||
|
11009B
|
11009B
11060-1113 GASKET,GENERATOR COVEGasket,generator cove; |
11060-1113 |
US $23.53 |
||
| replacements | |||||
|
11009B
|
11009B
11060-1693
GASKET,GENERATOR COVER
Gasket,generator cove; |
11060-1693 |
— | ||
|
11009B
|
11009B
11061-1487 GASKET,GENERATOR COVERGasket,generator cove; |
11061-1487 |
from US $24.15 |
||
|
11012
|
11012
11012-1362 CAP |
11012-1362 |
from US $6.34 |
||
|
11012A
|
11012A
11012-1363 CAP,TOP MARKCap,top mark; |
11012-1363 |
from US $4.75 |
||
|
13169
|
13169
13169-1735 PLATE,OIL SEALPlate,oil seal; |
13169-1735 |
from US $5.23 |
||
|
13169A
|
13169A
13169-1882 PLATE,PULSING COIL LEPlate,pulsing coil le; |
13169-1882 |
from US $6.34 |
||
|
13183
|
13183
13183-1144 PLATE,GENERATORPlate,generator; |
13183-1144 |
from US $7.13 |
||
|
14024
|
14024
14025-1990 COVER,GENERATOR CASECover,generator case; |
14025-1990 |
from US $211.99 |
||
|
14026
|
14026
14026-1115 COVER-CHAIN |
14026-1115 |
US $38.30 |
||
|
14031
|
14031
14031-1210 Cover-generator |
14031-1210 |
US $259.25 |
||
| replacement | |||||
|
14031
|
14031
14031-1304 Cover-generator |
14031-1304 |
US $259.25 |
||
|
14032
|
14032
14032-1187 COVER-CLUTCH |
14032-1187 |
US $315.99 |
||
|
16115
|
16115
16115-1009 CAP-OIL FILLER |
16115-1009 |
from US $10.14 |
||
|
52005
|
52005
52005-1009 GAUGE,OIL LEVELGauge,oil level; |
52005-1009 |
from US $13.15 |
||
|
92002
|
92002
92002-1356 Bolt |
92002-1356 |
from US $3.48 |
||
|
92022
|
92022
92022-304 WASHER,PLAINWasher,plain; |
92022-304 |
from US $2.53 |
||
|
92037
|
92037
92037-1069
CLAMP
Clamp,wiring harness; |
92037-1069 |
— | ||
| replacement | |||||
|
92037
|
92037
92171-0652 ClampClamp,wiring harness; |
92171-0652 |
from US $1.27 |
||
|
92043
|
92043
92043-1263 PIN,6.2X8X14Pin,dowel,6.2x8x14; |
92043-1263 |
from US $0.75 |
||
|
92046
|
92046
92046-1010
BEARING-NEEDLE,HK1210
Bearing,needle,hk1210; |
92046-1010 |
— | ||
| replacement | |||||
|
92046
|
92046
92046-0034 BEARING-NEEDLE,HK1210FMBearing,needle,hk1210; |
92046-0034 |
from US $12.67 |
||
|
92049
|
92049
92049-1048 OIL SEAL,SC22325Oil seal,sc22325; |
92049-1048 |
from US $5.70 |
||
|
92049A
|
92049A
92049-1158 SEAL-OIL,SCY 15X30X7Seal-oil,scy 15x30x7; |
92049-1158 |
from US $15.52 |
||
|
92049B
|
92049B
92049-1271 SEAL-OIL |
92049-1271 |
from US $8.15 |
||
|
92055
|
92055
92055-049 O-RING,31MM"0" ring,31mm; |
92055-049 |
from US $3.37 |
||
|
92055A
|
92055A
92055-1221 RING-O,62.6X66X3.1Ring-o,62.6x66x3.1; |
92055-1221 |
from US $5.54 |
||
|
92066
|
92066
92066-1156 PLUG,DRAINPlug,drain; |
92066-1156 |
from US $9.03 |
||
