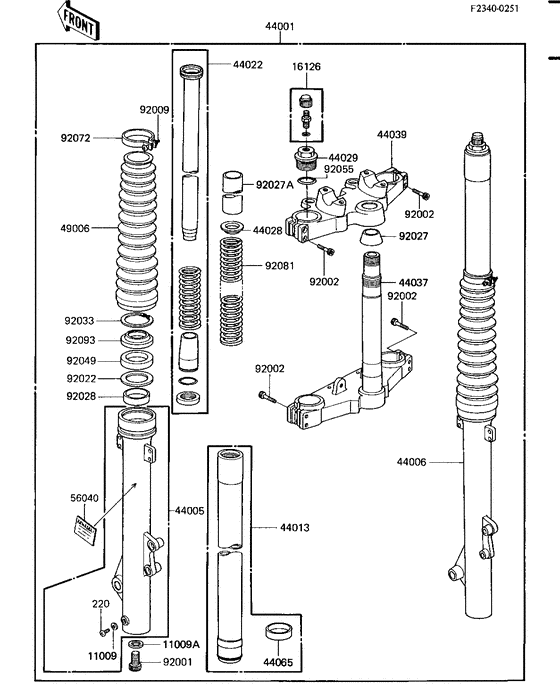

Front fork Diagram Kawasaki KL600 KLR600
- Year
- 1986
- Model code
- KL600-B2
- Sales region
- USA
- Engine Capacity
- 600
- Model
- KL600B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220B0408
SCREW-PAN-CROS
Screw pan head 4x8; |
220B0408 |
— | ||
| replacement | |||||
|
220
|
220
220AA0408 SCREW-PAN-CROSScrew pan head 4x8; |
220AA0408 |
from US $0.79 |
||
|
11009
|
11009
44045002 GASKET FORK DRAIN PLGGasket fork drain plg; |
44045002 |
from US $3.96 |
||
|
11009A
|
11009A
44045057 GASKET,FORK CYLINDERGasket,fork cylinder; |
44045057 |
from US $3.33 |
||
|
16126
|
16126
16126-1052 VALVE AIRValve air; |
16126-1052 |
from US $23.34 |
||
|
44001
|
44001
44001-1572-BD FORK-FRONT,BLACKFork-front,black; |
44001-1572-BD |
US $1,414.57 |
||
|
44005
|
44005
44005-1229 PIPE-LEFT FORK OUTER |
44005-1229 |
US $359.68 |
||
|
44006
|
44006
44006-1229
PIPE-RIGHT FORK OUTER
|
44006-1229 |
— | ||
|
44013
|
44013
44013-1227 PIPE-FORK INNER |
44013-1227 |
US $332.33 |
||
|
44022
|
44022
44022-1177 CYLINDER-FORK |
44022-1177 |
US $140.83 |
||
|
44028
|
44028
44028-1004 GUIDE,FORK SPRINGGuide,fork spring; |
44028-1004 |
from US $8.93 |
||
|
44029
|
44029
44029-1042 SEAT-FORK SPRING |
44029-1042 |
from US $50.27 |
||
|
44037
|
44037
44037-1171 HOLDER-FORK-UNDER |
44037-1171 |
US $261.16 |
||
| replacement | |||||
|
44037
|
44037
44037-1172 HOLDER-FORK-UNDER |
44037-1172 |
US $376.83 |
||
|
44039
|
44039
44039-1101 HOLDER-FORK UPPER |
44039-1101 |
US $174.67 |
||
|
44065
|
44065
92028-1126 BUSHING,FORK PIPEBushing,fork pipe; |
92028-1126 |
from US $20.53 |
||
|
49006
|
49006
49006-1166-BD
BOOT,FORK,BLACK
Boot,fork,black; |
49006-1166-BD |
— | ||
|
56040
|
56040
56040-1120
LABEL,FRONT FORK
Label,front fork; |
56040-1120 |
— | ||
|
92001
|
92001
44041040 BOLT-FORK CYLINDERBolt-fork cylinder; |
44041040 |
from US $4.44 |
||
|
92002
|
92002
92002-1277 BOLT,SOCKET,8X32Bolt,socket,8x32; |
92002-1277 |
from US $7.13 |
||
|
92009
|
92009
92009-1348 SCREW |
92009-1348 |
from US $3.48 |
||
|
92022
|
92022
92022-1262 WASHER,FORK OUT PIPEWasher,fork out pipe; |
92022-1262 |
from US $5.07 |
||
|
92027
|
92027
92027-1791 COLLAR,UPPER BRACKETCollar,upper bracket; |
92027-1791 |
from US $43.23 |
||
|
92027A
|
92027A
92027-1872 COLLAR,L=165Collar,l=165; |
92027-1872 |
from US $30.07 |
||
|
92028
|
92028
44065-1091 BUSHING-FRONT FORK,OUBushing-front fork,ou; |
44065-1091 |
from US $17.74 |
||
|
92033
|
92033
92033-1047 SNAP RING,FORK OUTERSnap ring,fork outer; |
92033-1047 |
from US $3.80 |
||
|
92049
|
92049
92049-1180 SEAL-OIL,FRONT FORKSeal-oil,front fork; |
92049-1180 |
from US $15.05 |
||
|
92055
|
92055
92055-1050 0 RING,FORK TOP CAP"0" ring,fork top cap; |
92055-1050 |
from US $3.48 |
||
|
92072
|
92072
92072-1171
CLAMP, BOOT, BLACK
Band,boot; |
92072-1171 |
— | ||
| replacement | |||||
|
92072
|
92072
92037-1321 CLAMP, BOOT, BLACKBand,boot; |
92037-1321 |
US $8.71 |
||
|
92081
|
92081
92081-1871 SPRING |
92081-1871 |
US $65.02 |
||
|
92093
|
92093
92093-1166 SEAL,FRONT FORKSeal,front fork; |
92093-1166 |
from US $12.67 |
||
