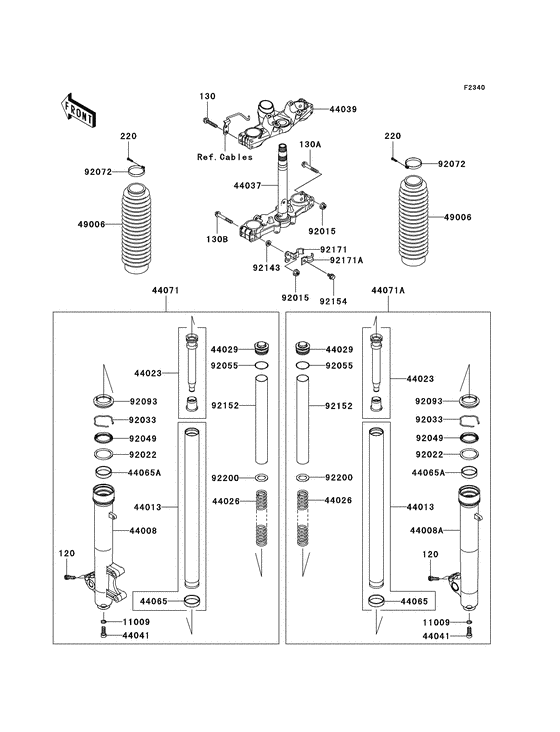

Front fork Diagram Kawasaki KL650 KLR650
- Year
- 1998
- Model code
- KL650-A12
- Sales region
- USA
- Engine Capacity
- 650
- Model
- KLR650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CA0830 BOLT-SOCKET,8X30Bolt-socket,8x30; |
120CA0830 |
from US $1.61 |
||
|
130
|
130
130BA0840 BOLT-FLANGED,8X40Bolt-flanged,8x40; |
130BA0840 |
from US $1.27 |
||
|
130A
|
130A
130BA0850 BOLT-FLANGED,8X50Bolt-flanged,8x50; |
130BA0850 |
from US $1.40 |
||
|
130B
|
130B
130BA0855 BOLT-FLANGED,8X55Bolt-flanged,8x55; |
130BA0855 |
from US $1.43 |
||
|
220
|
220
220C0416
SCREW-PAN-CROSS
Screw-pan-cros,4x16; |
220C0416 |
— | ||
| replacement | |||||
|
220
|
220
220AB0416 SCREW-PAN-CROSSScrew-pan-cros,4x16; |
220AB0416 |
from US $0.95 |
||
|
11009
|
11009
11009-1325 GASKET,FORK CYLINDERGasket,pipe-comp-susp; |
11009-1325 |
from US $3.97 |
||
| replacement | |||||
|
11009
|
11009
44045057 GASKET,FORK CYLINDERGasket,pipe-comp-susp; |
44045057 |
from US $3.33 |
||
|
44008
|
44008
44008-0021-458 PIPE-FORK OUTER,LH,P.Pipe-fork outer,lh,p.silver; |
44008-0021-458 |
from US $421.78 |
||
|
44008A
|
44008A
44008-0023-458 PIPE-FORK OUTER,RH,P.Pipe-fork outer,rh,p.silver; |
44008-0023-458 |
from US $421.78 |
||
|
44013
|
44013
44013-0107 PIPE-FORK INNER |
44013-0107 |
from US $326.59 |
||
|
44023
|
44023
44023-0060 CYLINDER-SET-FORK |
44023-0060 |
from US $161.80 |
||
|
44026
|
44026
44026-0112 SPRING-FRONT FORK |
44026-0112 |
from US $56.74 |
||
|
44029
|
44029
44029-0005 SEAT-FORK SPRING |
44029-0005 |
from US $29.47 |
||
|
44037
|
44037
44037-0054-458 HOLDER-FORK UNDER,P.SHolder-fork under,p.silver; |
44037-0054-458 |
from US $582.26 |
||
|
44039
|
44039
44039-0047-458 HOLDER-FORK UPPER,P.SHolder-fork upper,p.silver; |
44039-0047-458 |
from US $279.94 |
||
|
44041
|
44041
44041040 BOLT-FORK CYLINDERBolt,socket,fork cylinder; |
44041040 |
from US $4.44 |
||
|
44065
|
44065
44065-0014 BUSHING-FRONT FORK,INBushing-front fork,inner tube; |
44065-0014 |
from US $19.48 |
||
|
44065A
|
44065A
44065-1115 BUSHING-FRONT FORKBushing-front fork,outer tube; |
44065-1115 |
from US $19.48 |
||
|
44071
|
44071
44071-0343-458 DAMPER-ASSY,FORK,LH,PDamper-assy,fork,lh,p.silver; |
44071-0343-458 |
from US $824.88 |
||
|
44071A
|
44071A
44071-0344-458 DAMPER-ASSY,FORK,RH,PDamper-assy,fork,rh,p.silver; |
44071-0344-458 |
from US $824.88 |
||
|
49006
|
49006
49006-1266-BD BOOT,FORK,BLACKBoot,fork,black; |
49006-1266-BD |
from US $61.59 |
||
|
92015
|
92015
92015-1406 NUT,8MMNut,flanged,8mm; |
92015-1406 |
from US $2.85 |
||
|
92022
|
92022
92022-1298 WASHER,FORK OUTER TUBWasher,fork outer tube; |
92022-1298 |
from US $6.57 |
||
|
92033
|
92033
92033-1036 CIRCLIP |
92033-1036 |
from US $3.80 |
||
|
92049
|
92049
92049-1356 SEAL-OILSeal-oil,fork outer tube; |
92049-1356 |
from US $15.05 |
||
|
92055
|
92055
92055-1321 0 RING,32MM |
92055-1321 |
from US $1.76 |
||
| replacement | |||||
|
92055
|
92055
670B3032 0 RING,32MM |
670B3032 |
from US $1.84 |
||
|
92072
|
92072
92072-1077 BAND,BOOTBand,boot; |
92072-1077 |
from US $6.49 |
||
|
92093
|
92093
92093-0036 SEAL,DUSTSeal,dust; |
92093-0036 |
from US $11.56 |
||
|
92143
|
92143
92143-1770 COLLAR |
92143-1770 |
from US $6.68 |
||
|
92152
|
92152
92152-0603 COLLAR |
92152-0603 |
from US $8.40 |
||
|
92154
|
92154
92154-0111 BOLT,FLANGED,6X10Bolt,flanged,6x10; |
92154-0111 |
from US $1.09 |
||
|
92171
|
92171
92171-1744 CLAMP |
92171-1744 |
from US $11.04 |
||
|
92171A
|
92171A
92171-1745 CLAMP |
92171-1745 |
from US $5.60 |
||
|
92200
|
92200
92200-1467 WASHER |
92200-1467 |
from US $6.02 |
||
