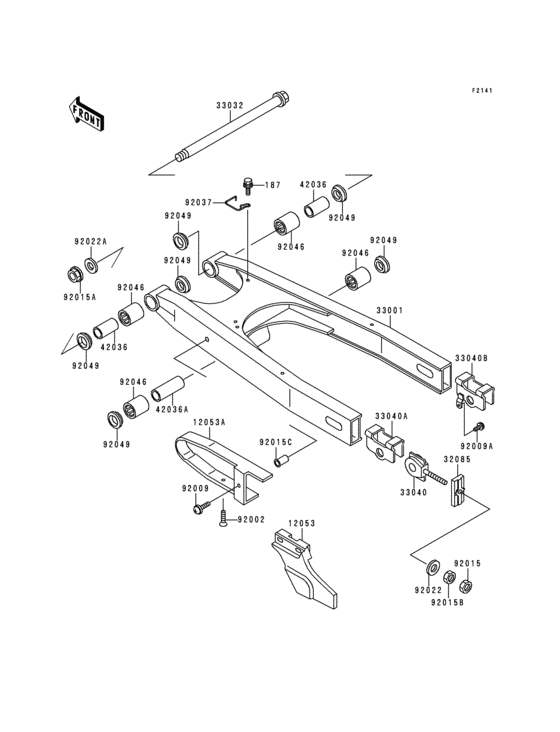

Swingarm Diagram Kawasaki KL650 KLR650
- Year
- 2000
- Colour
- Olive Green (HA)
- Model code
- KL650-A14
- Sales region
- Europe (General)
- Engine Capacity
- 650
- Model
- KLR650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
187
|
187
187D0616
BOLT-UPSET-WSP
|
187D0616 |
— | ||
| replacement | |||||
|
187
|
187
187AA0616 BOLT-UPSET-WSP |
187AA0616 |
from US $1.70 |
||
|
12053
|
12053
12053-1104 GUIDE-CHAIN,RR |
12053-1104 |
from US $54.14 |
||
|
12053A
|
12053A
12053-1360 GUIDE-CHAIN,DRIVE,FR |
12053-1360 |
from US $37.25 |
||
|
32085
|
32085
32085-1256 STOPPER,CHAIN ADJUSTE |
32085-1256 |
from US $18.25 |
||
|
33001
|
33001
33001-1278-CE ARM-COMP-SWING,SILVER |
33001-1278-CE |
from US $942.45 |
||
|
33032
|
33032
33032-1128 SHAFT-SWING ARM |
33032-1128 |
from US $48.02 |
||
|
33040
|
33040
33040-1075 ADJUSTER-CHAIN,INNER |
33040-1075 |
from US $23.34 |
||
|
33040A
|
33040A
33040-1076 ADJUSTER-CHAIN,OUTER |
33040-1076 |
from US $27.38 |
||
|
33040B
|
33040B
33040-1078 ADJUSTER-CHAIN,OUTER |
33040-1078 |
from US $26.78 |
||
|
42036
|
42036
42036-1204 SLEEVE,15X20X47.5 |
42036-1204 |
from US $12.83 |
||
|
42036A
|
42036A
42036-1205 SLEEVE,15X20X82 |
42036-1205 |
from US $18.85 |
||
|
92002
|
92002
92002-1775 BOLT,DISC PLATE,6MM |
92002-1775 |
from US $2.69 |
||
|
92009
|
92009
92009-1181
SCREW,6X18
|
92009-1181 |
— | ||
| replacement | |||||
|
92009
|
92009
92172-0002 SCREW,6X18 |
92172-0002 |
from US $1.27 |
||
|
92015
|
92015
92015-1364 NUT,8MM |
92015-1364 |
from US $2.53 |
||
|
92015A
|
92015A
92015-1459 NUT,14MM |
92015-1459 |
from US $6.34 |
||
|
92015B
|
92015B
92015-1658 NUT,FLANGED,8MM |
92015-1658 |
from US $3.01 |
||
|
92015C
|
92015C
92015-1796 NUT,CRIMP 6MM |
92015-1796 |
from US $3.80 |
||
|
92022
|
92022
92022-1582
WASHER-PLAIN-SMALL,8M
|
92022-1582 |
— | ||
| replacement | |||||
|
92022
|
92022
410AA0800 WASHER-PLAIN-SMALL,8M |
410AA0800 |
from US $0.63 |
||
|
92022A
|
92022A
92022-1701 WASHER |
92022-1701 |
from US $2.85 |
||
|
92037
|
92037
92037-1902 Clamp |
92037-1902 |
from US $4.59 |
||
|
92046
|
92046
92046-1110 BEARING-NEEDLE,BM2027 |
92046-1110 |
from US $19.80 |
||
|
92049
|
92049
92049-1109 SEAL-OIL,ARM,CNT |
92049-1109 |
from US $6.34 |
||
